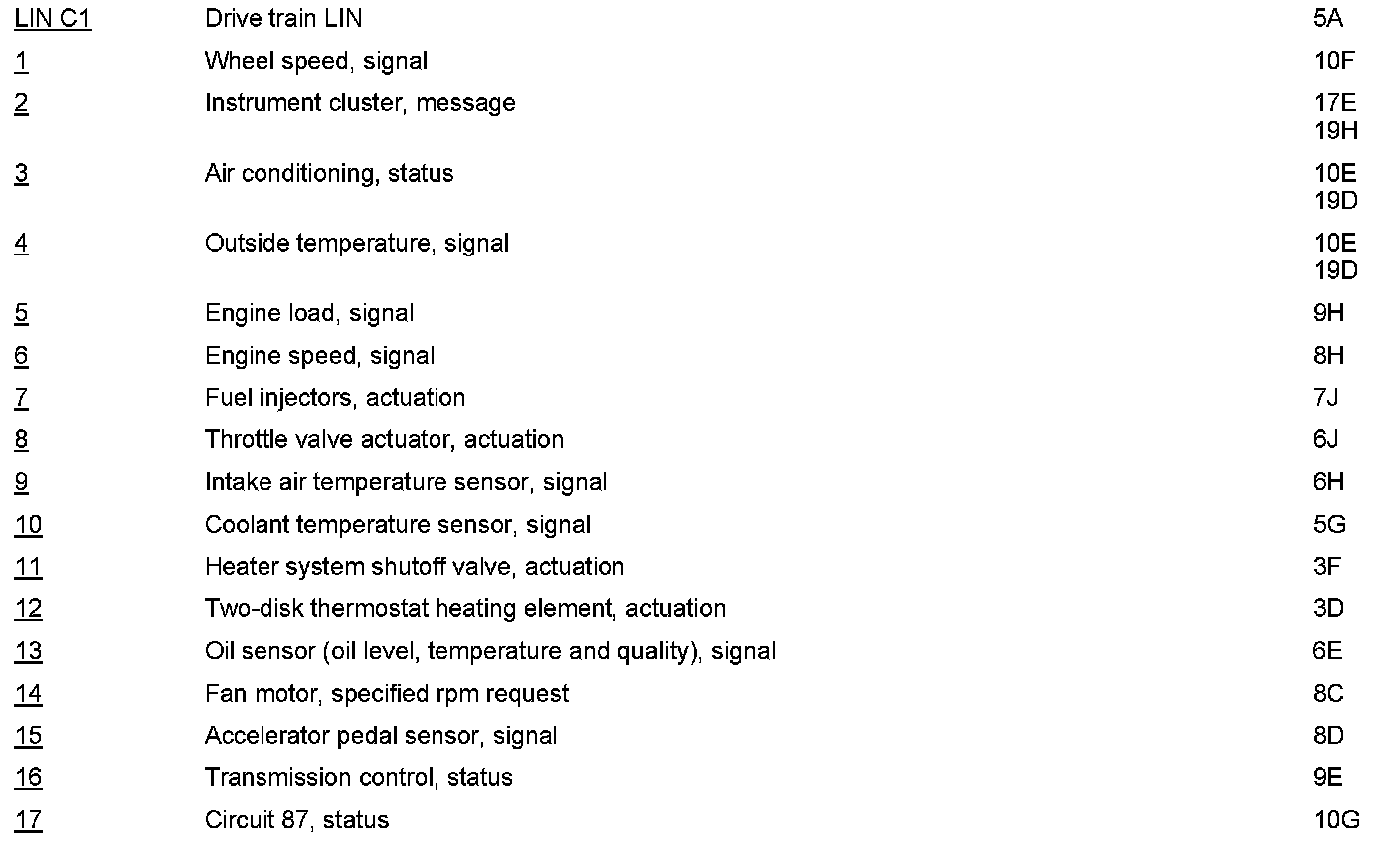

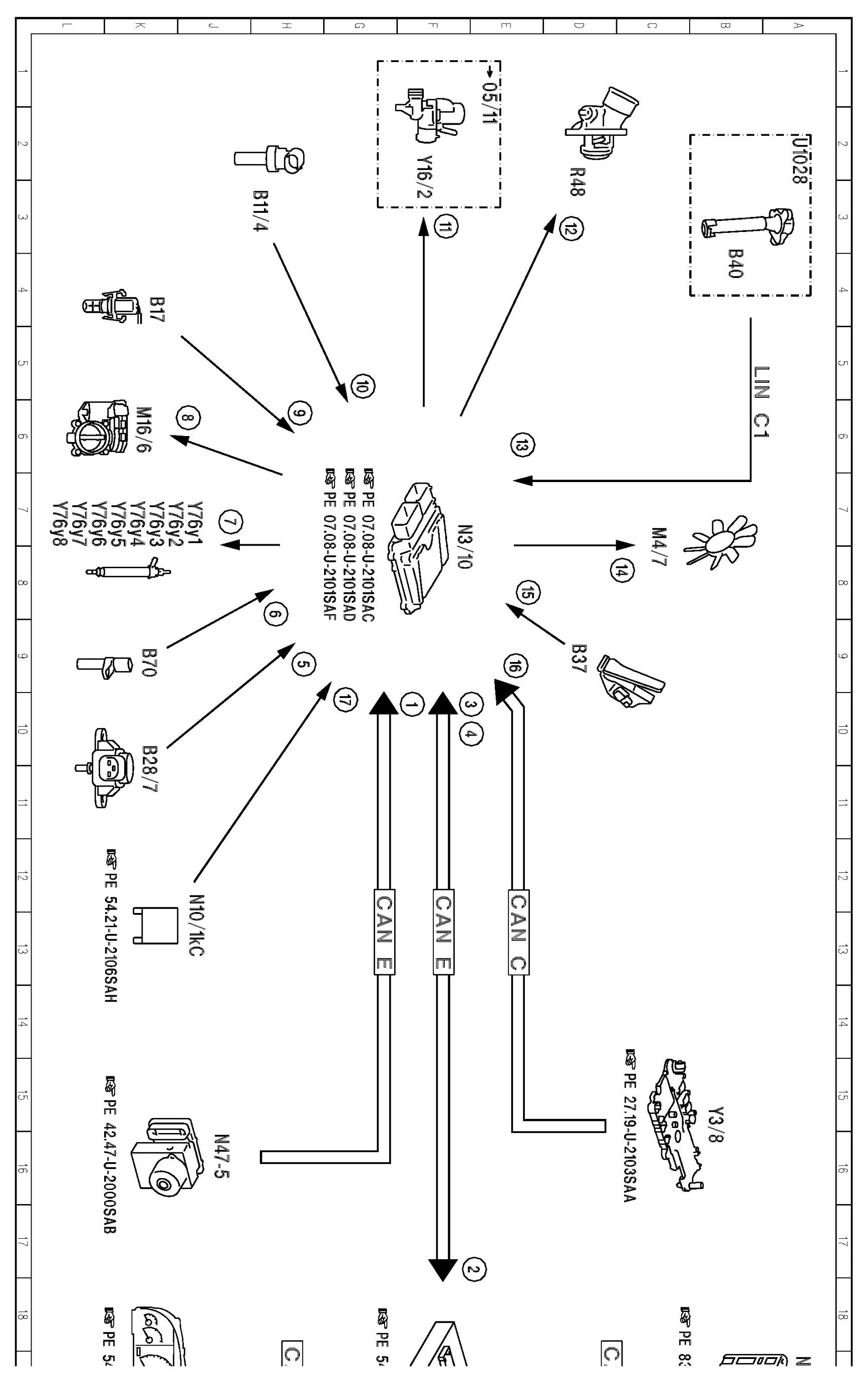

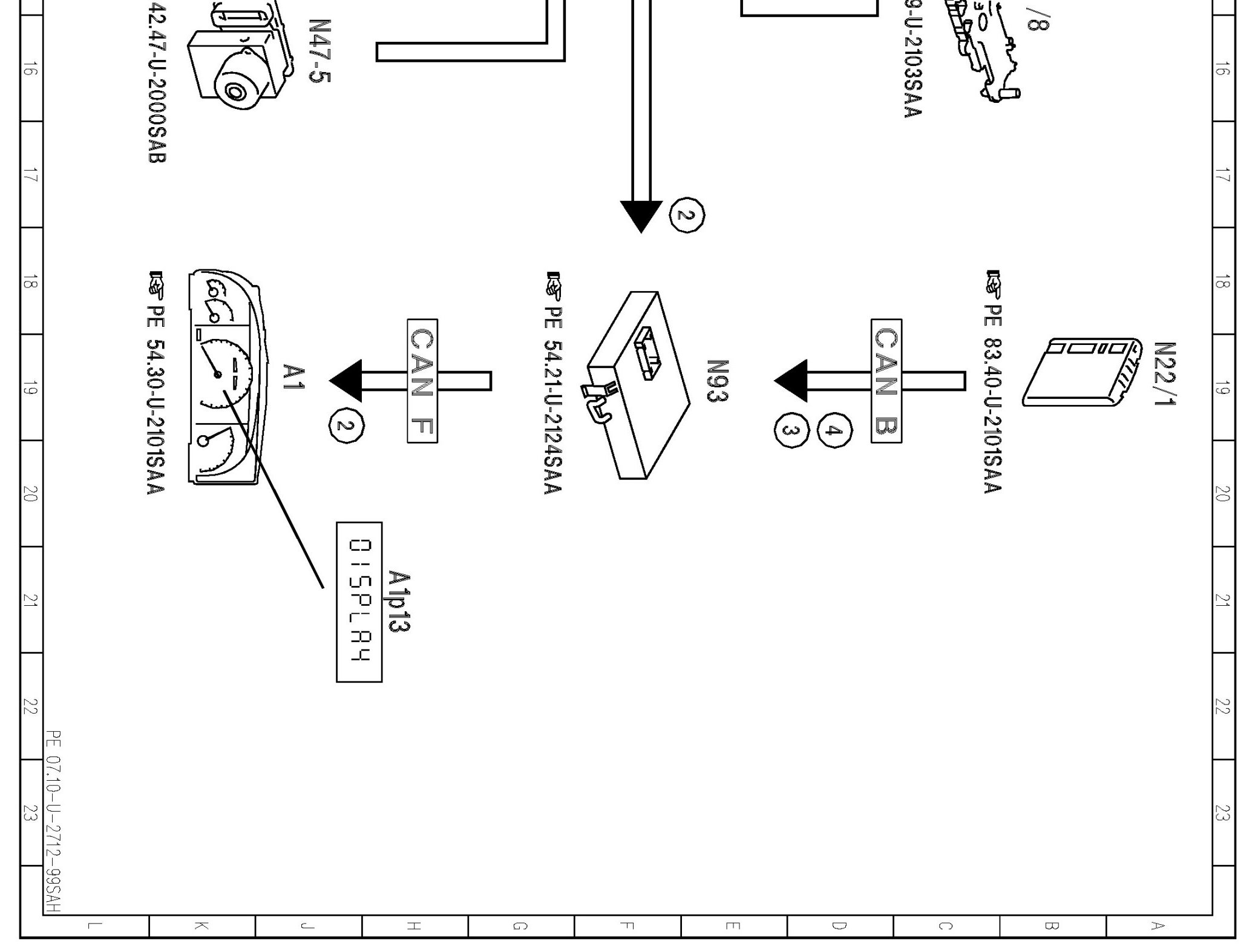

PE07.10-U-2712SAH Electrical Function Schematic For Thermal Management

PE07.10-U-2712SAH Electrical Function Schematic For Thermal Management

ENGINE 157 in MODEL 221















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
