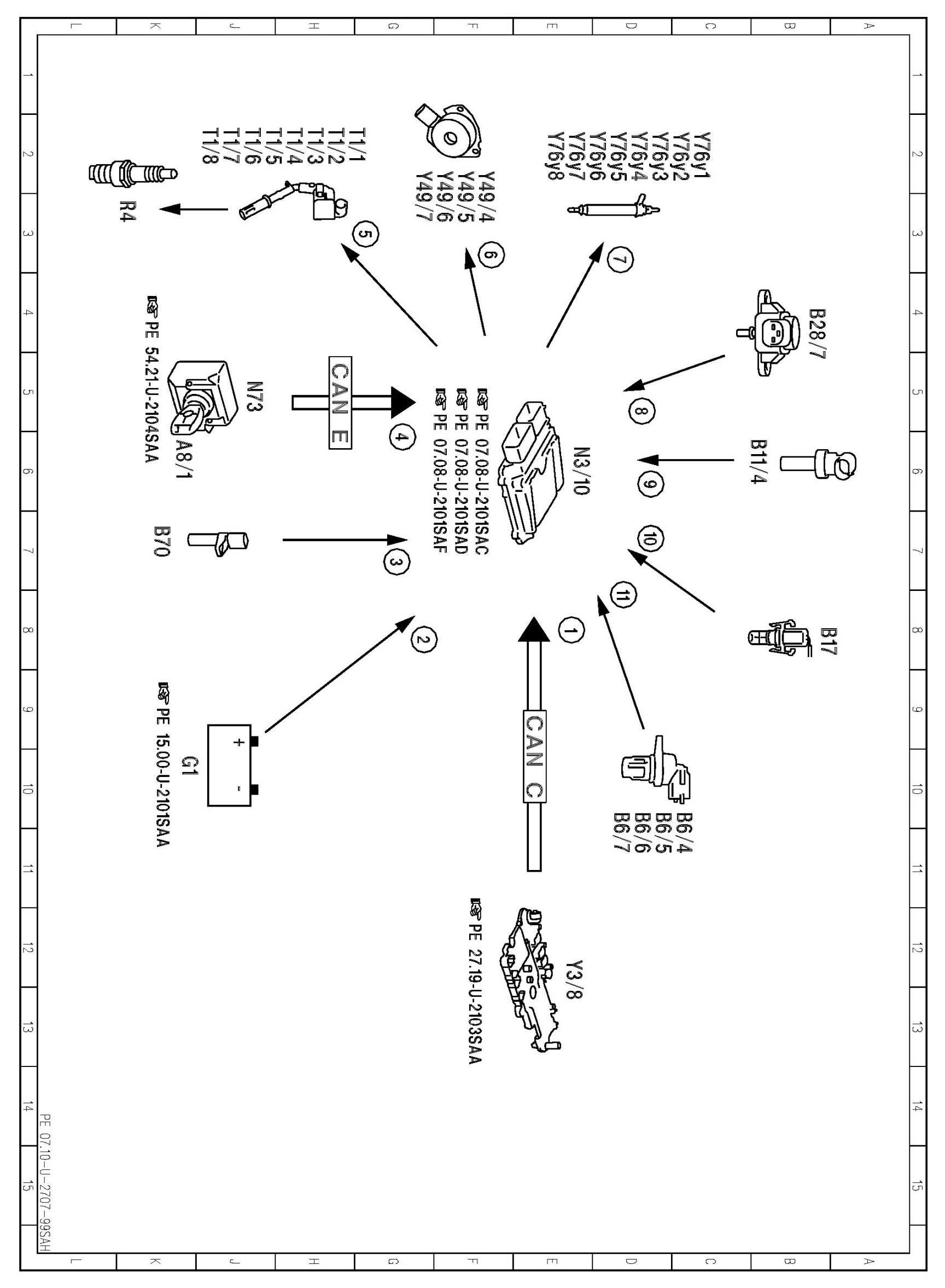

PE07.10-U-2707SAH Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment

PE07.10-U-2707SAH Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment

ENGINE 157 in MODEL 221



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
