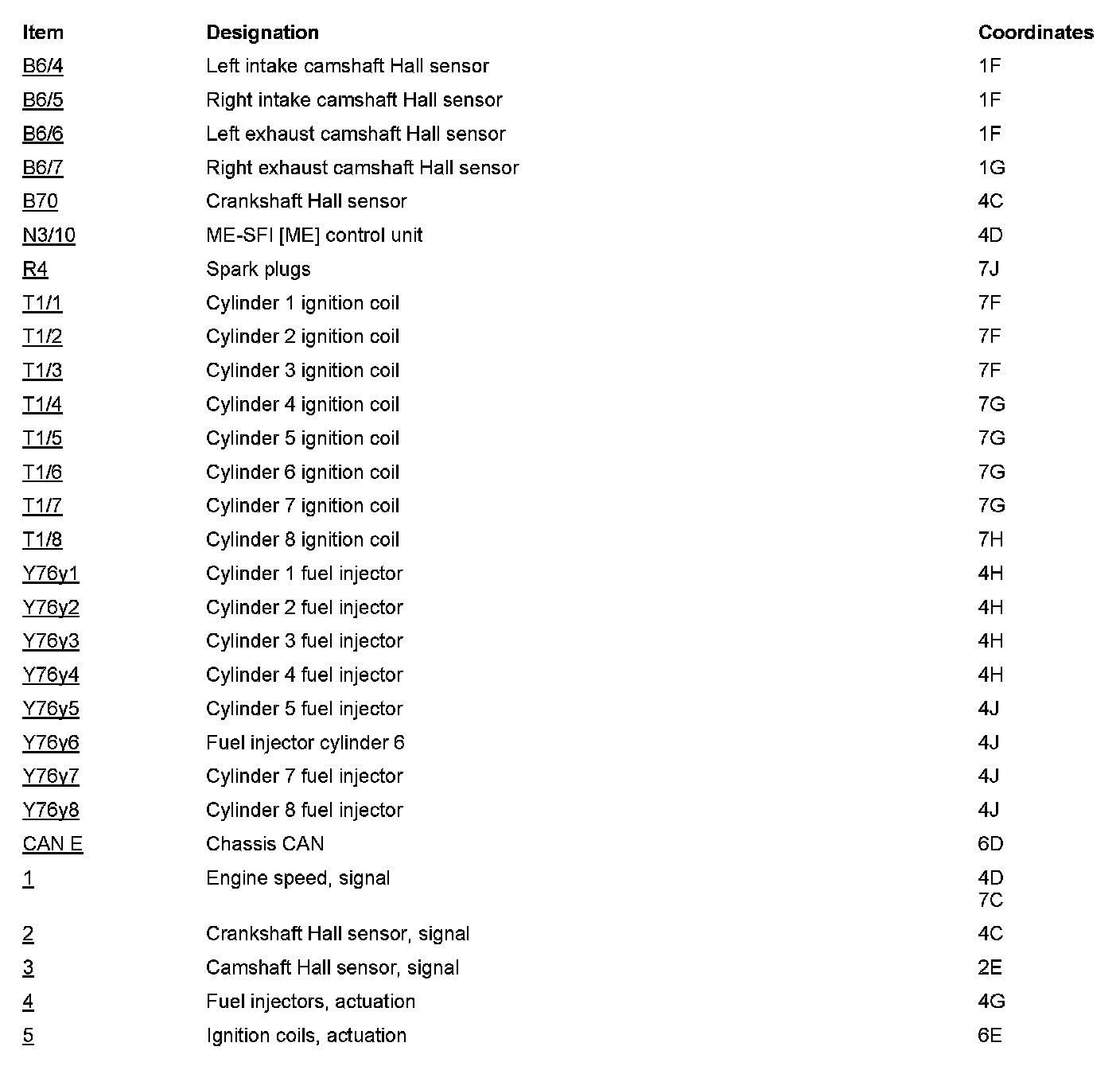

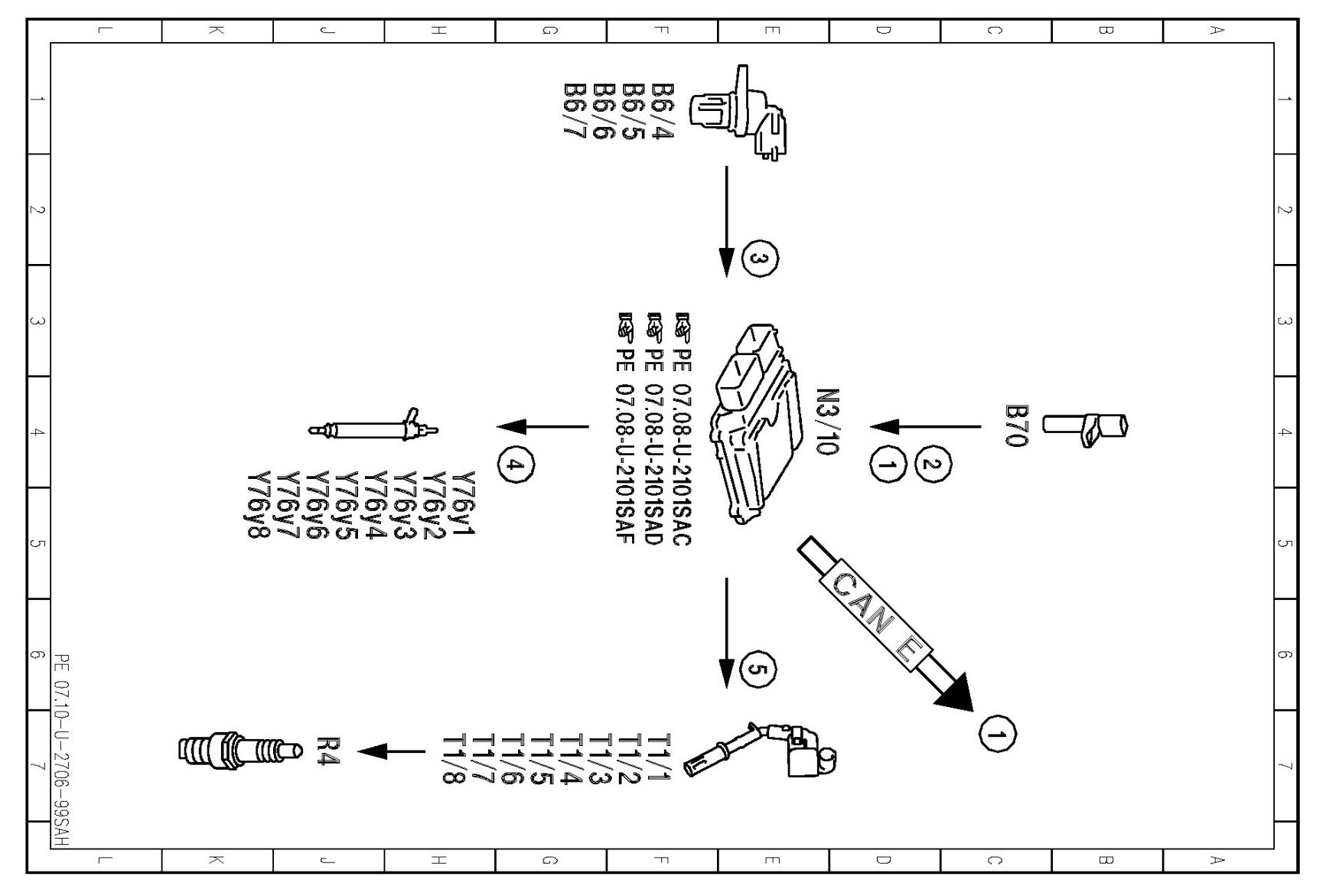

PE07.10-U-2706SAH Electrical Function Schematic, Synchronization of the Injection and Firing Order

PE07.10-U-2706SAH Electrical Function Schematic, Synchronization of the Injection and Firing Order

ENGINE 157 in MODEL 221















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
