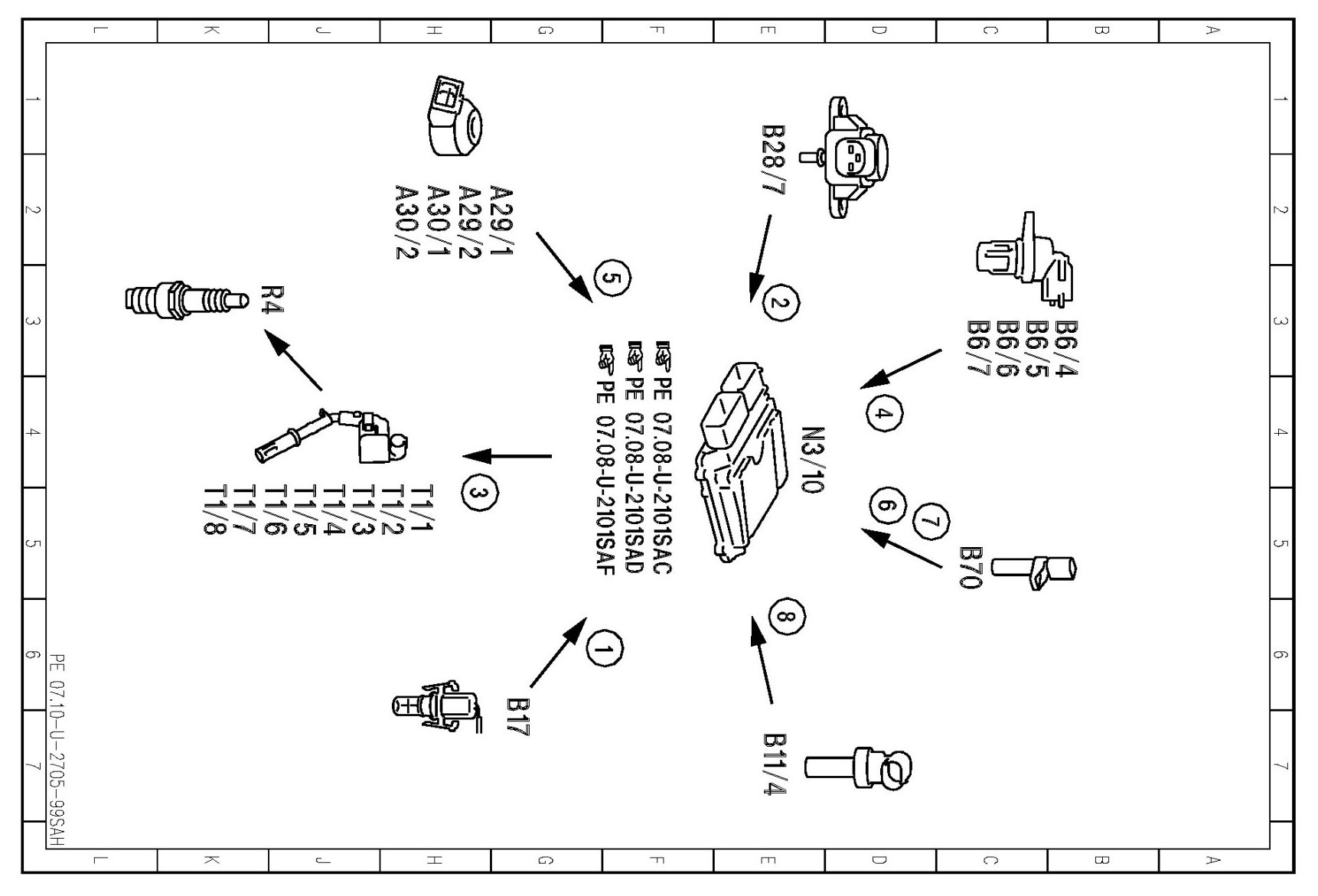

PE07.10-U-2705SAH Electrical Function Schematic For Ignition System

PE07.10-U-2705SAH Electrical Function Schematic For Ignition System

ENGINE 157 in MODEL 221

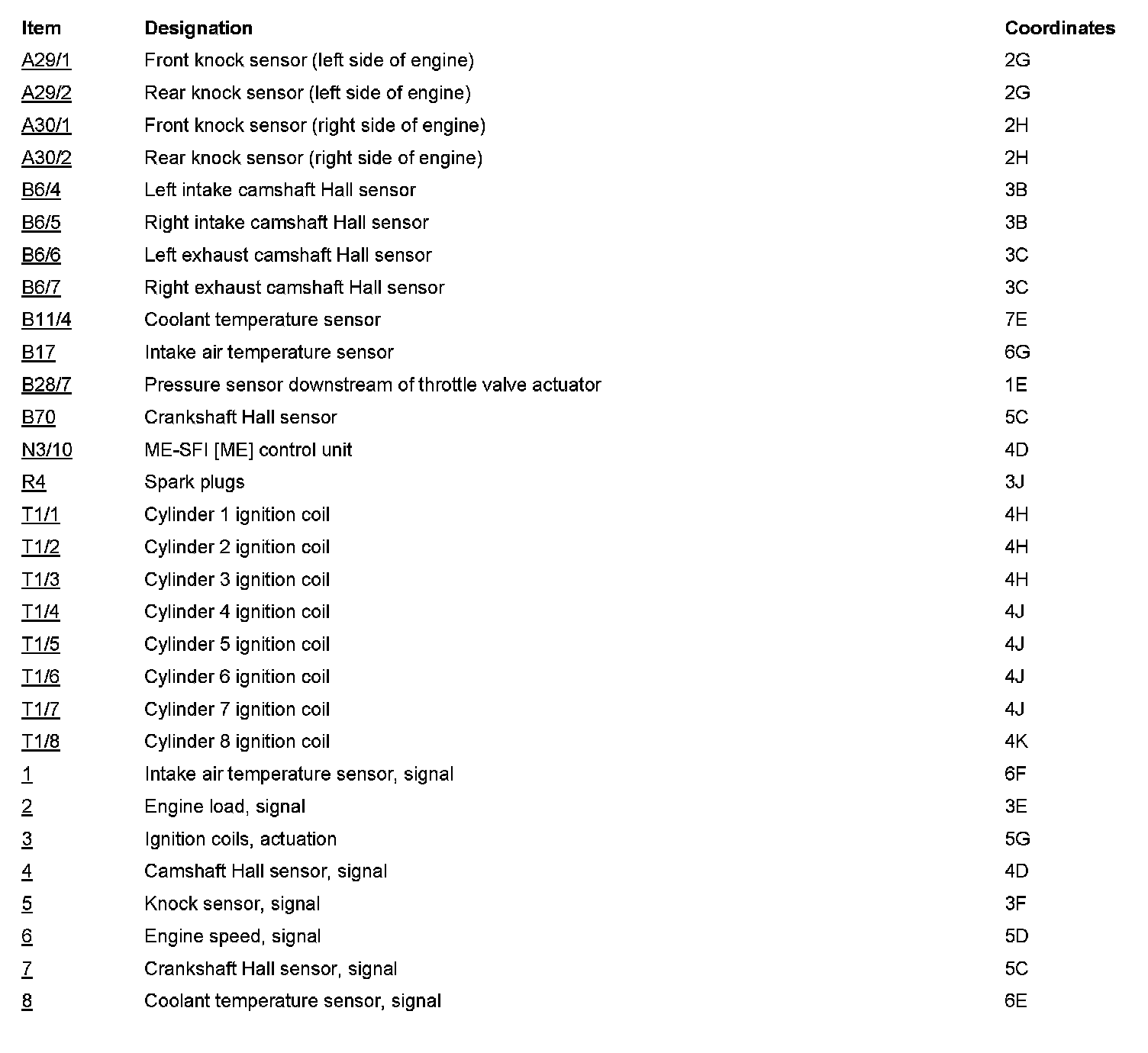

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
