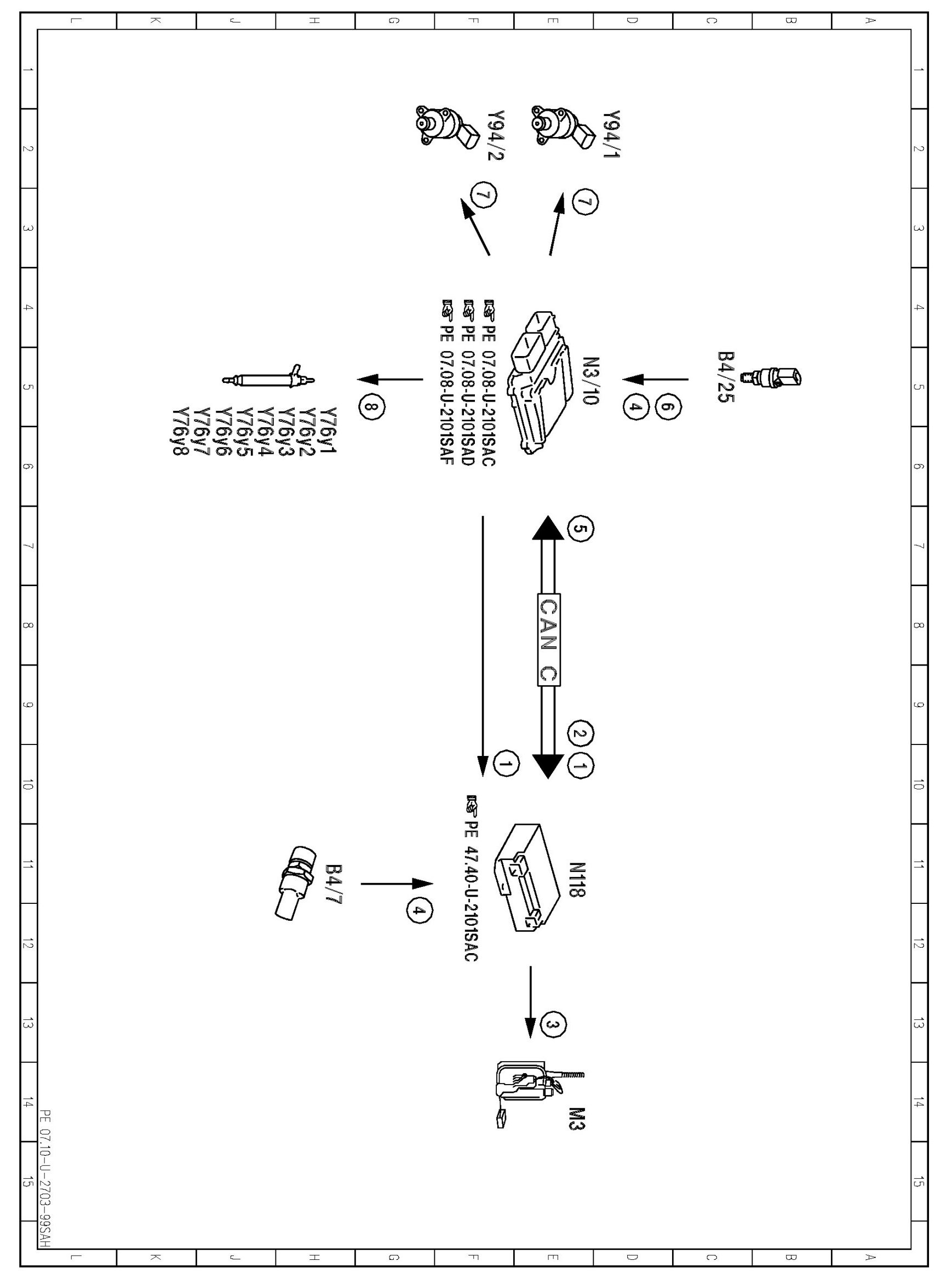

PE07.10-U-2703SAH Electrical Function Schematic For Fuel Supply

PE07.10-U-2703SAH Electrical Function Schematic For Fuel Supply

ENGINE 157 in MODEL 221























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
