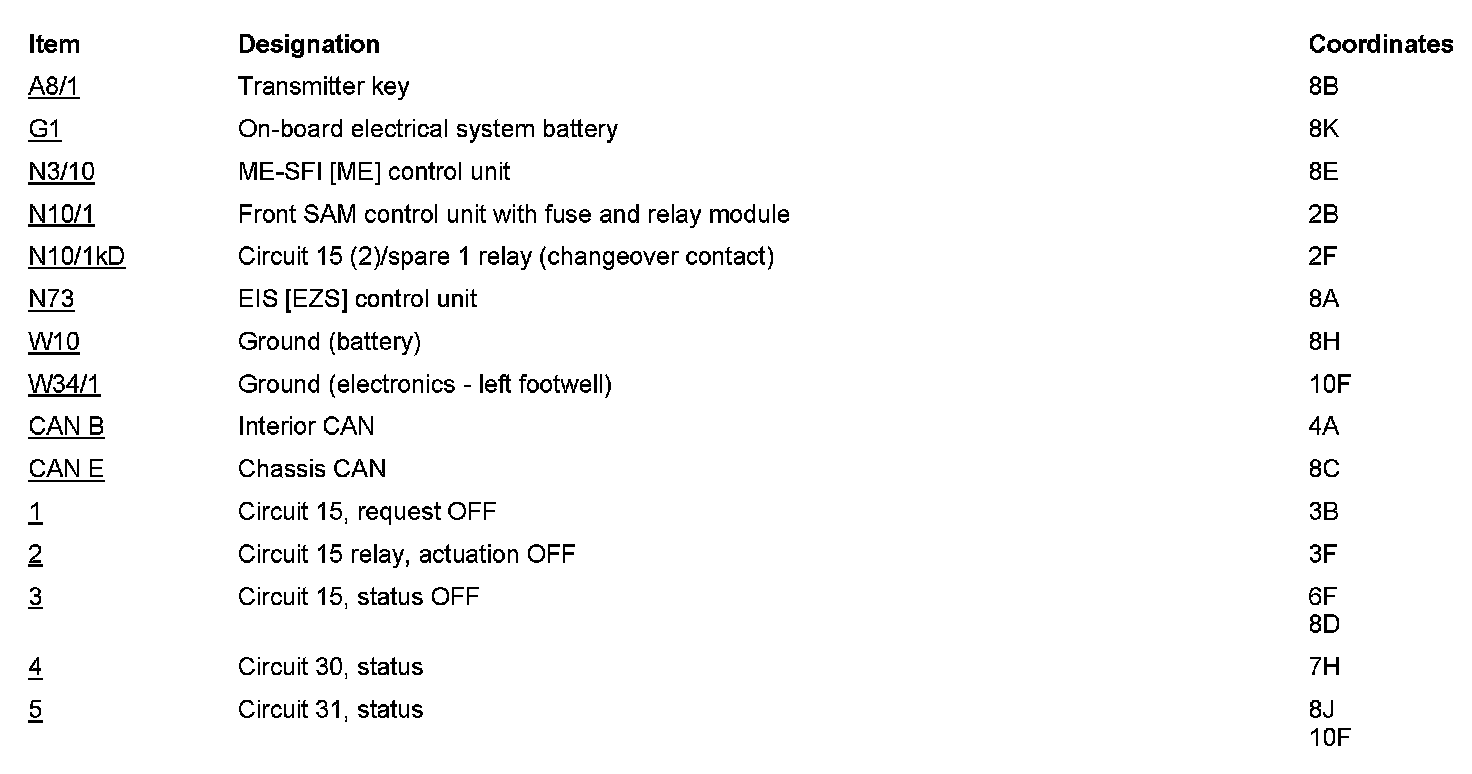

PE07.10-U-2702SAG Electrical Function Diagram For Ignition OFF

PE07.10-U-2702SAG Electrical Function Diagram For Ignition OFF

ENGINE 157 in MODEL 221























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
