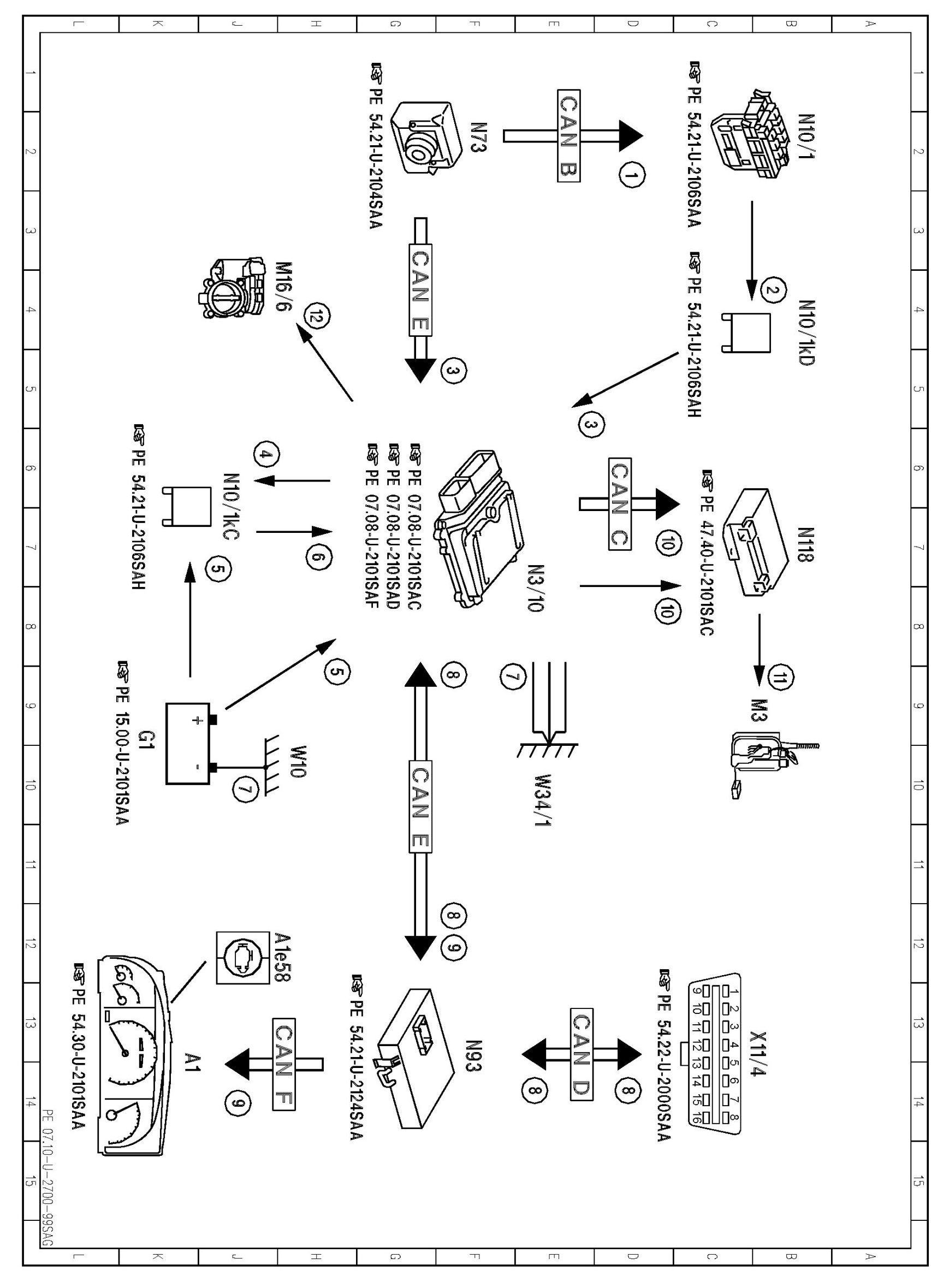

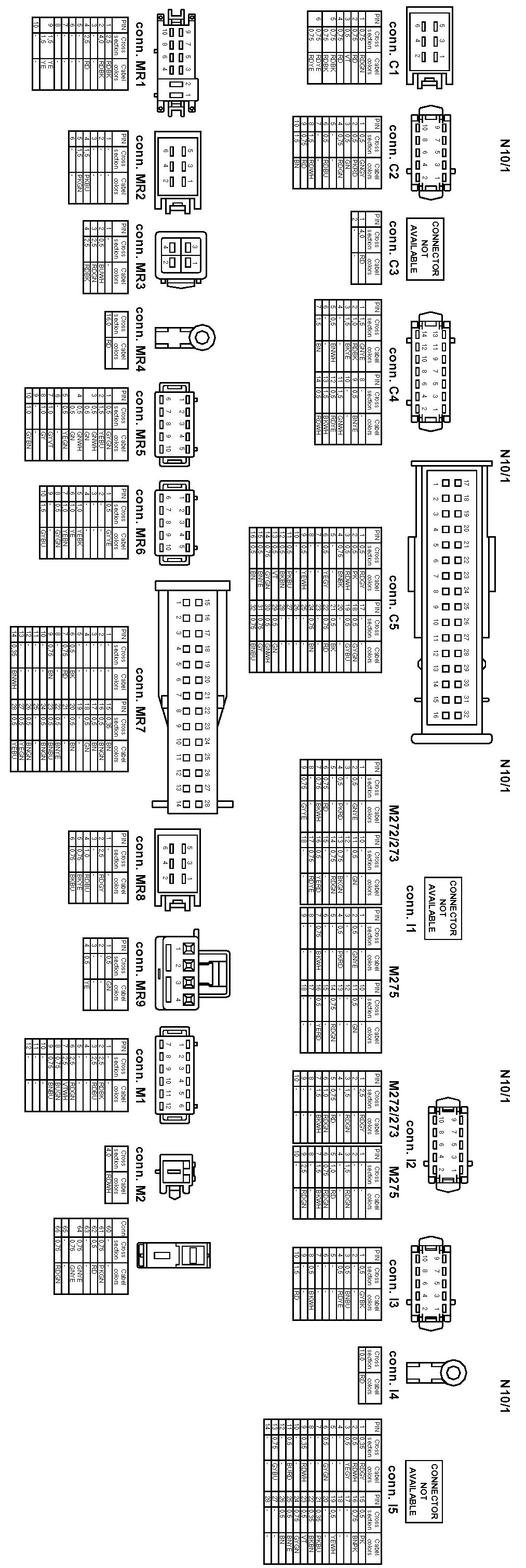

PE07.10-U-2700SAG Electrical Function Schematic For Ignition ON

PE07.10-U-2700SAG Electrical Function Schematic For Ignition ON

ENGINE 157 in MODEL 221











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
