PE07.08-U-2101SAF Gasoline Direct Injection System Control Unit

PE07.08-U-2101SAF Gasoline Direct Injection System Control Unit

ENGINE 157 in MODEL 221

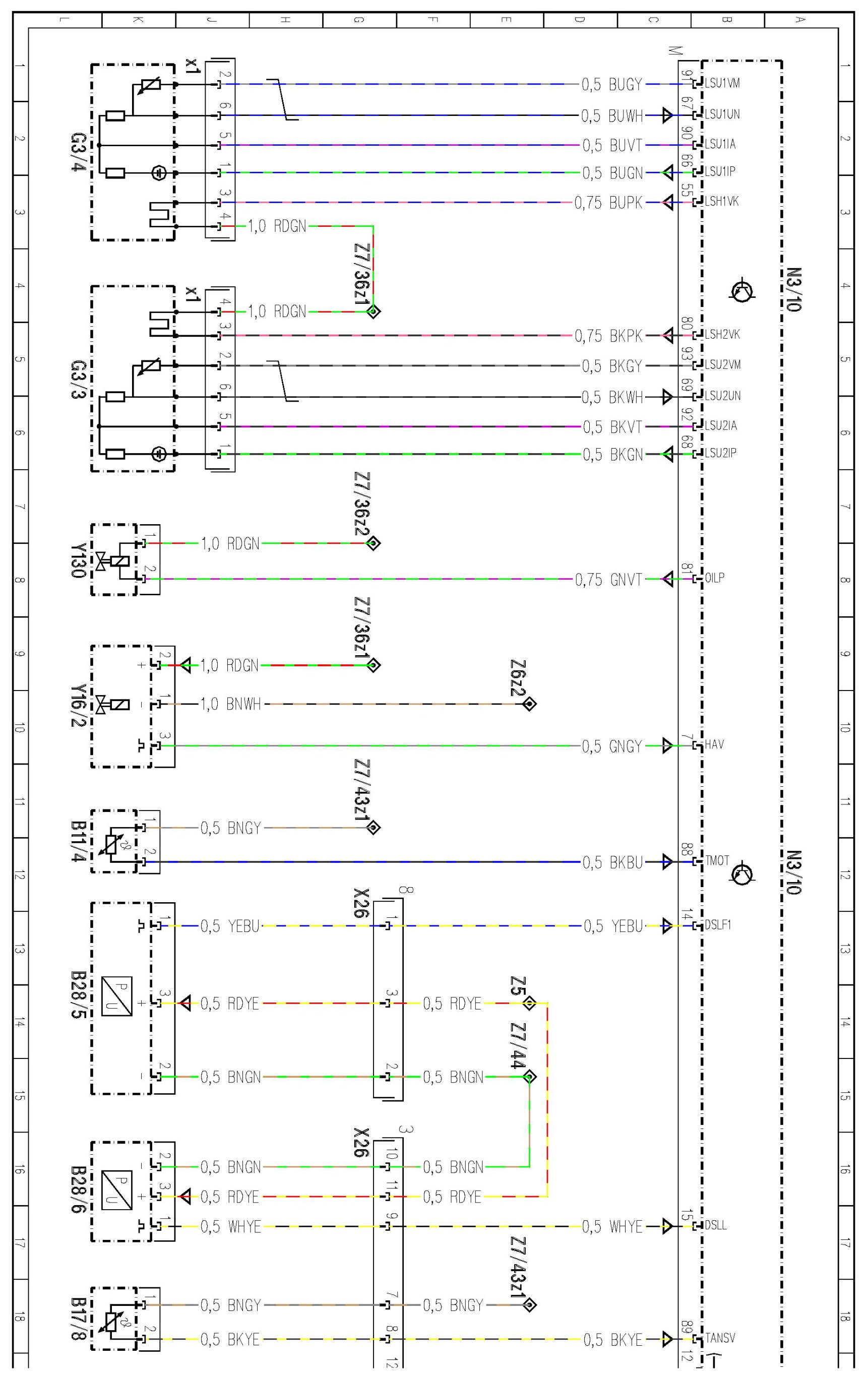

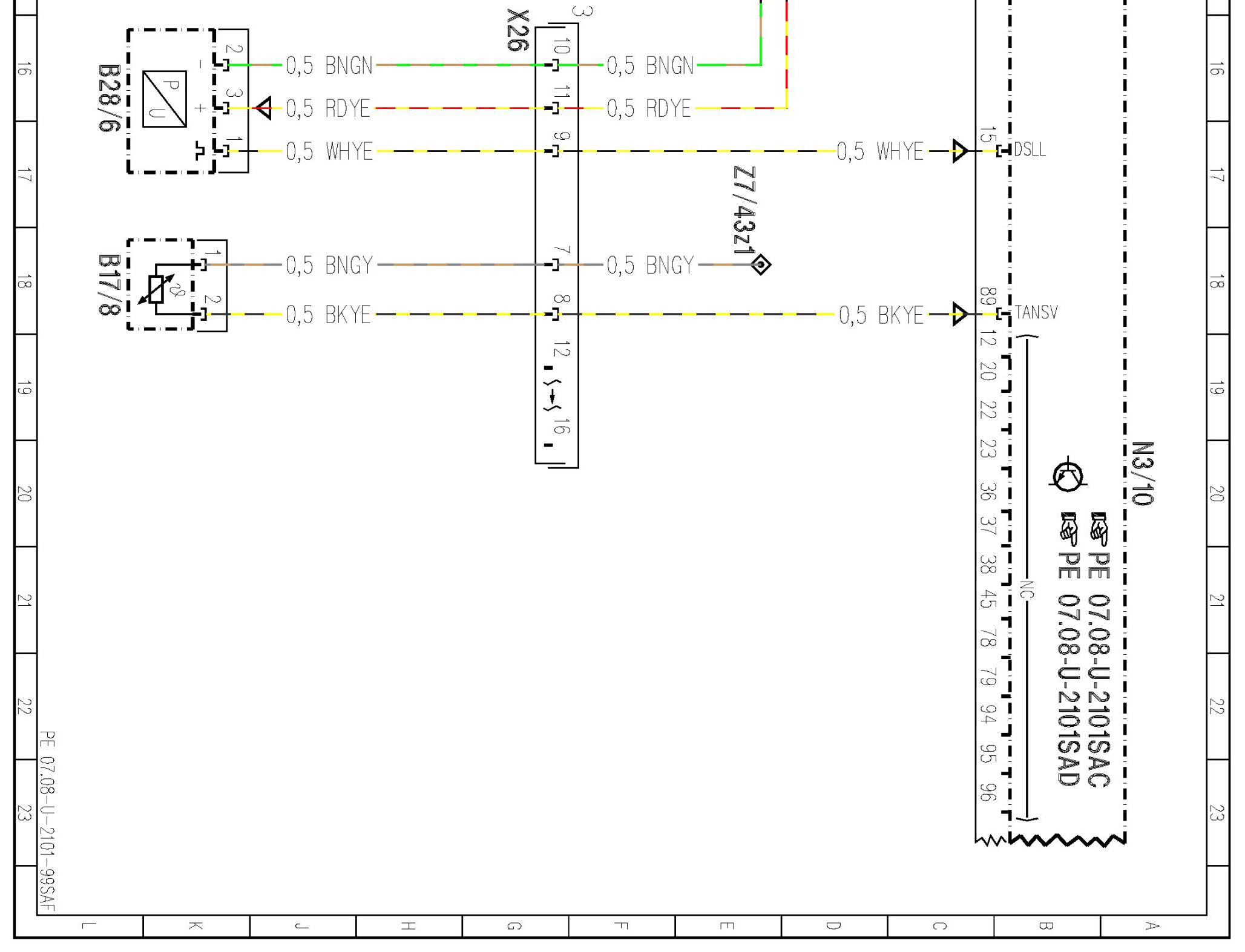

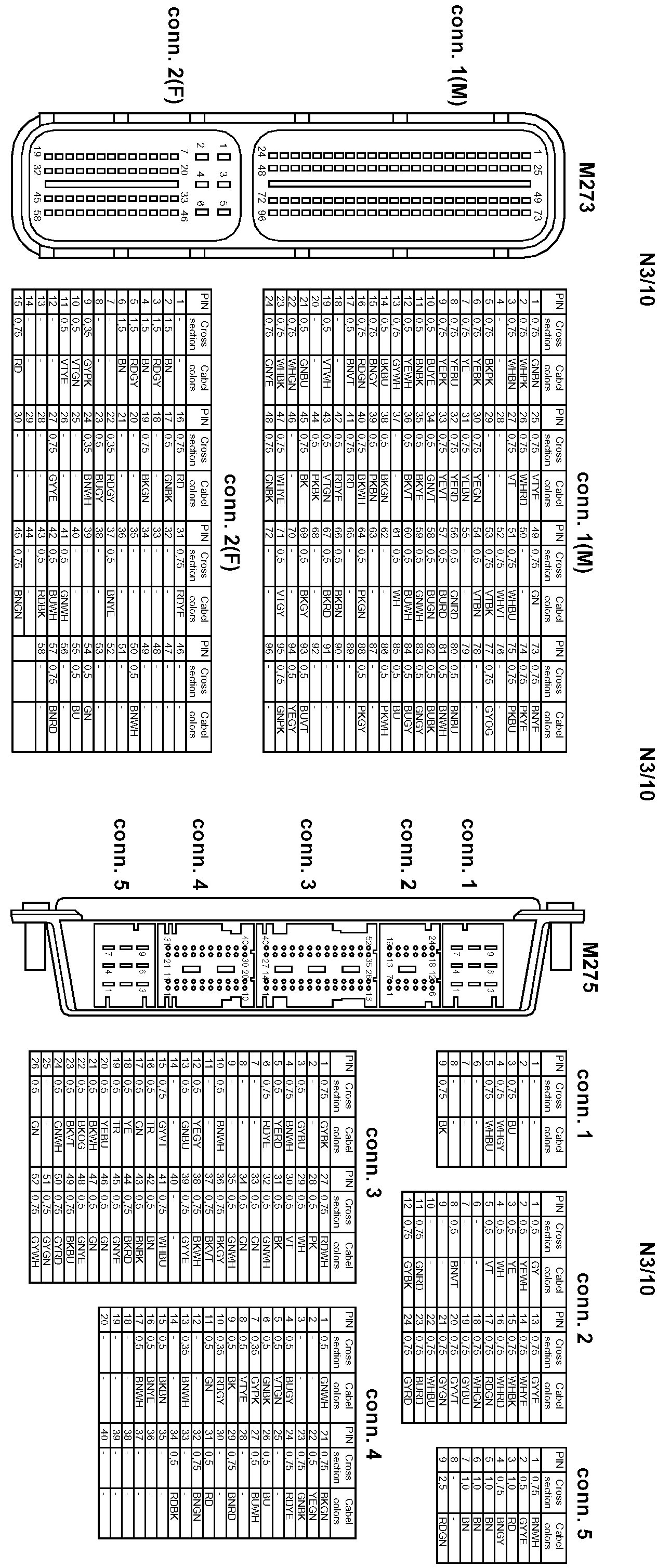

- Control unit N3/10, engine side, sheet 2























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
