Transmission Speed Sensor: Service and Repair
AR15.12-P-2139SXH Remove/install rotor position sensor

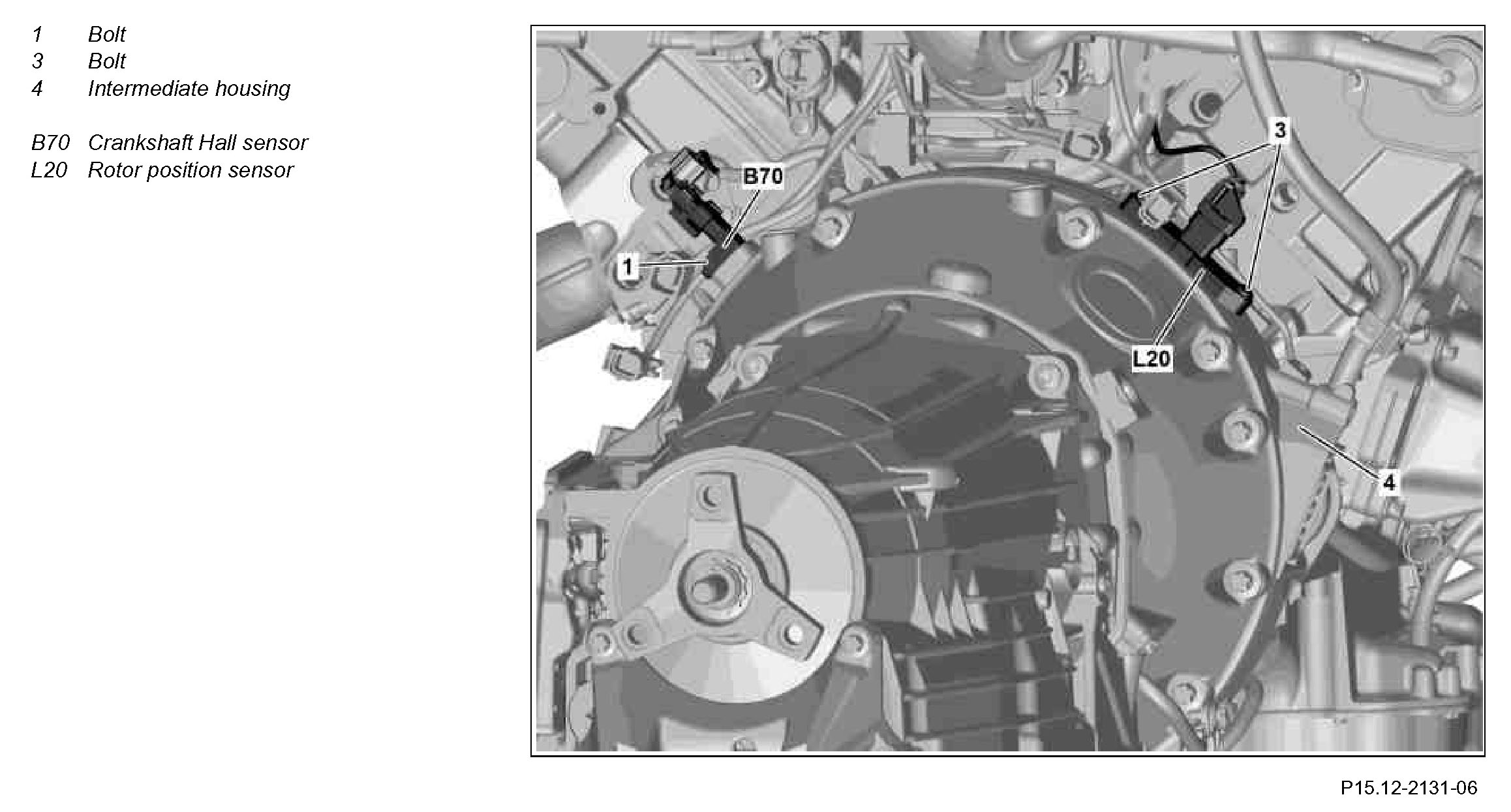

Component Identification:

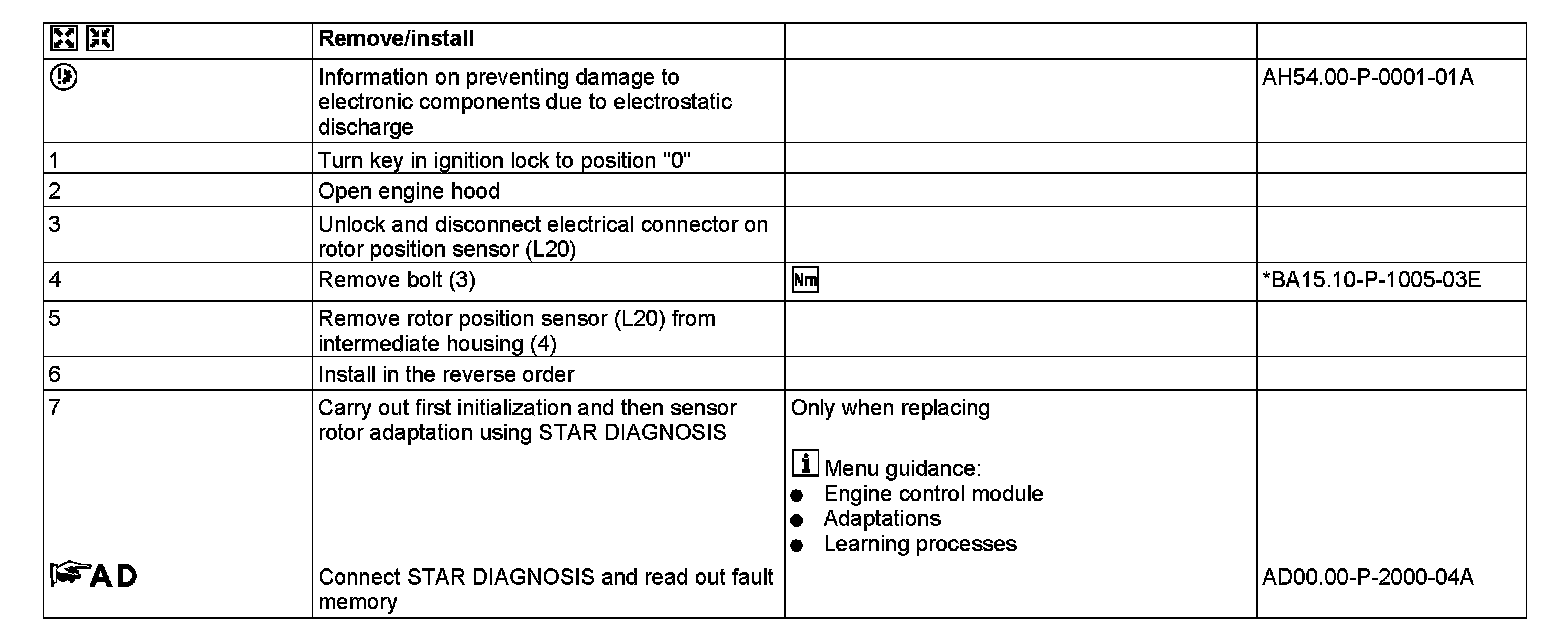

Steps 1-7:

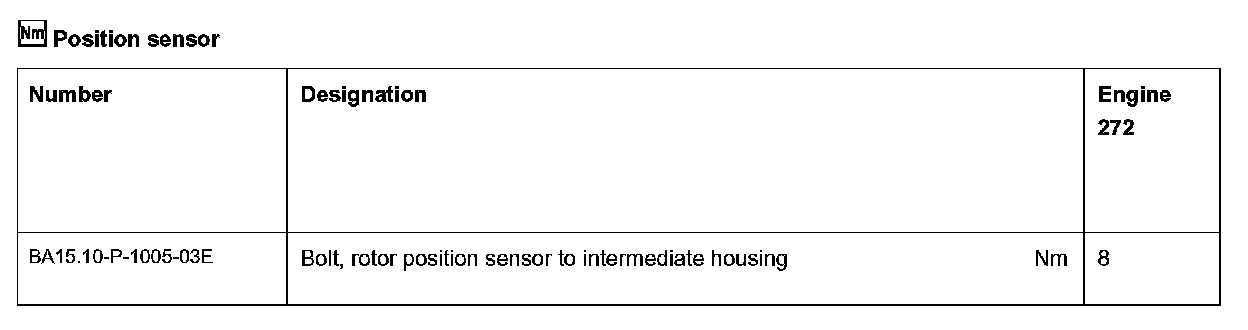

Position sensor:
