Starter Motor: Service and Repair
AR15.40-P-0003SXH Remove/install integrated starter alternator

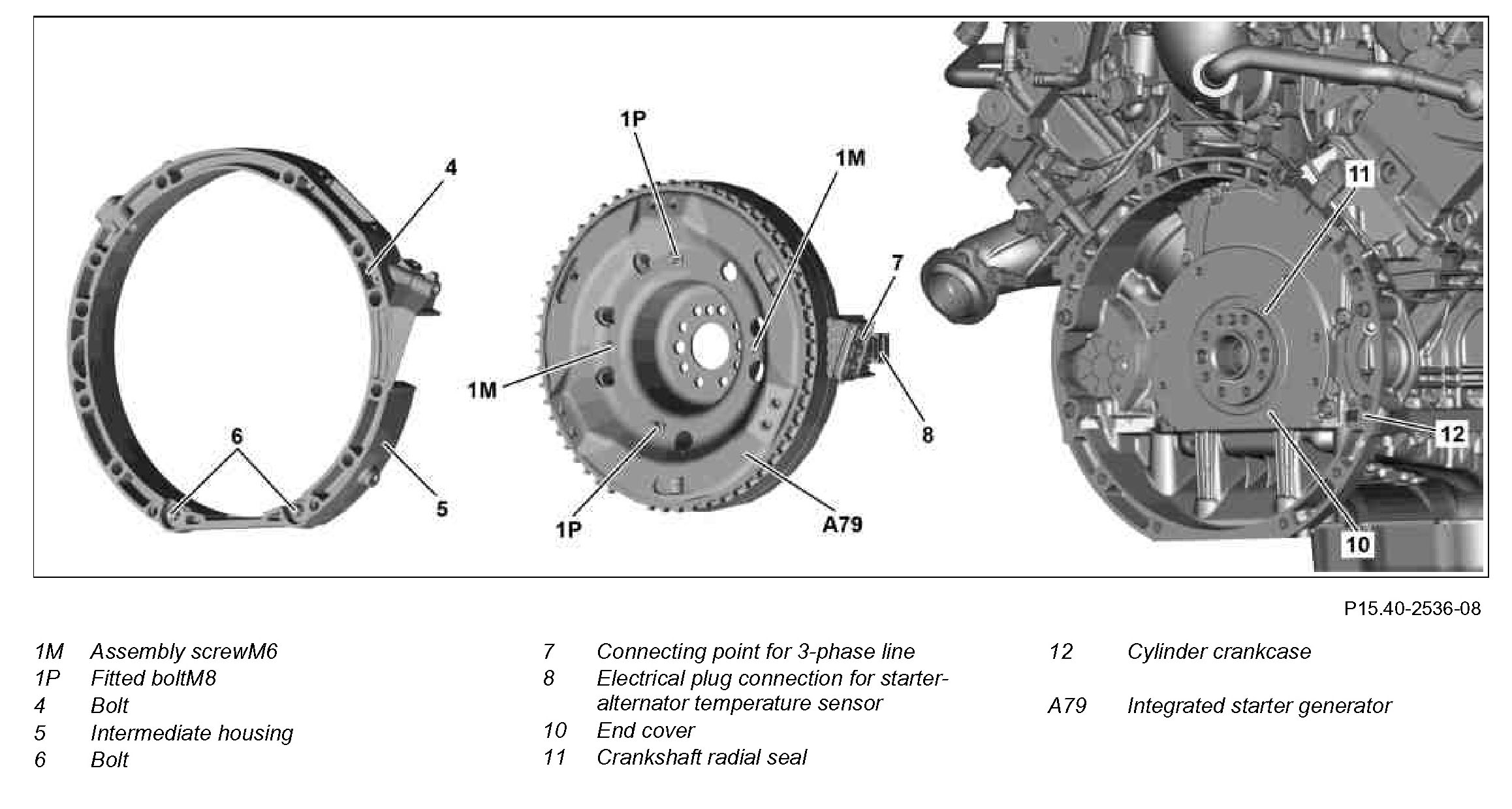

Component Identification:
Component Identification:
Remove/install Steps:

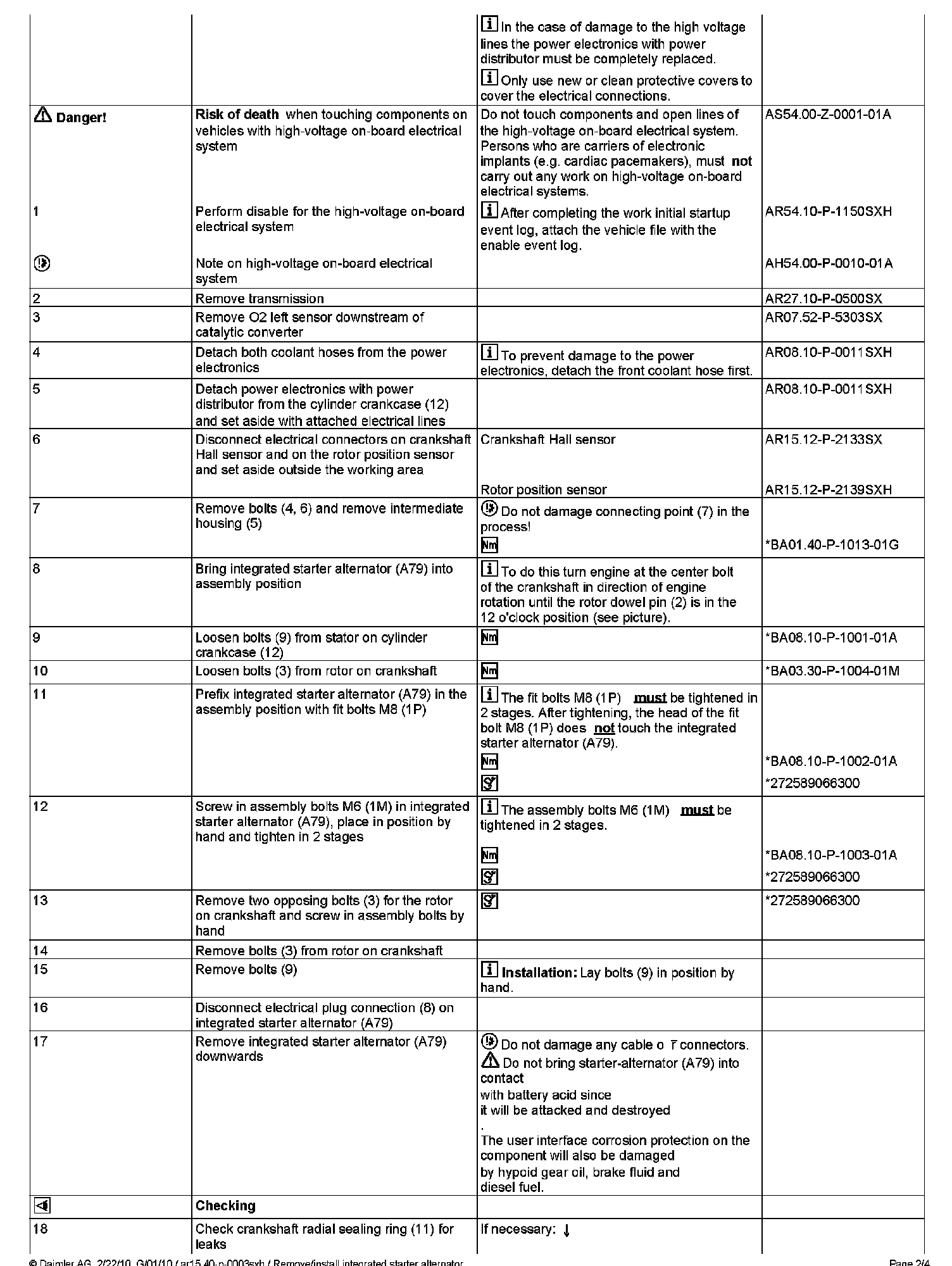

Steps 1-18:

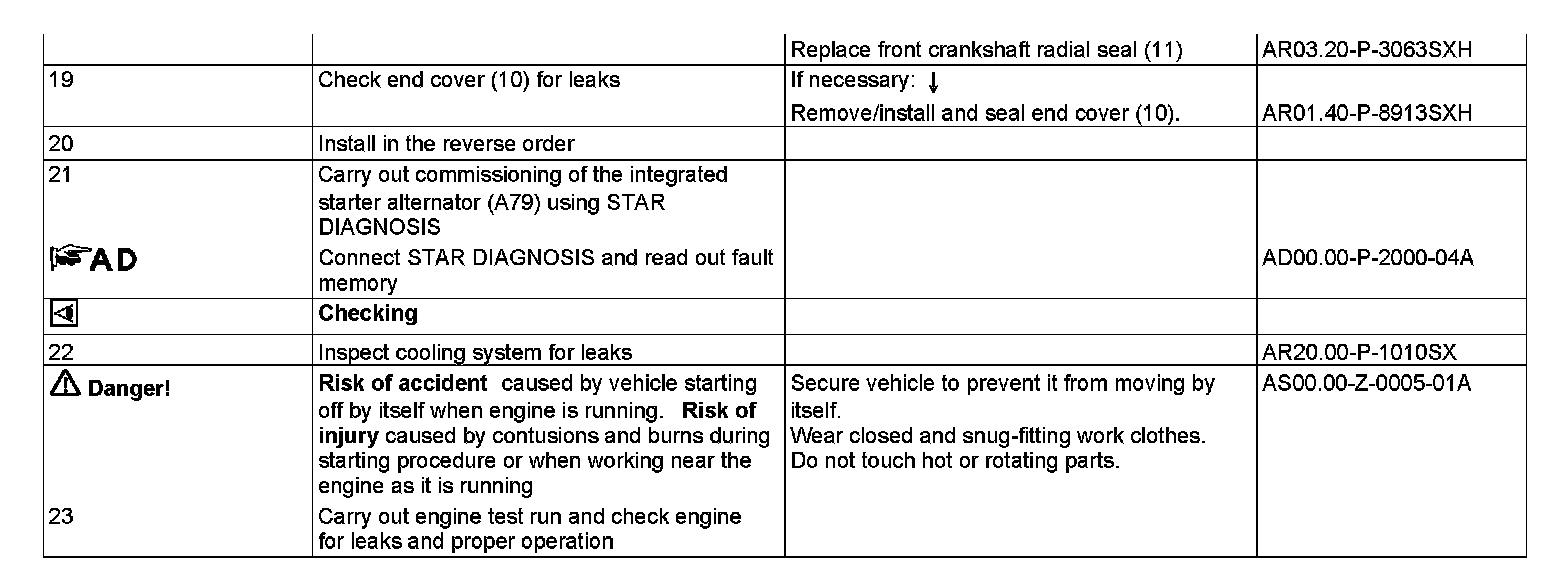

Steps 19-23:

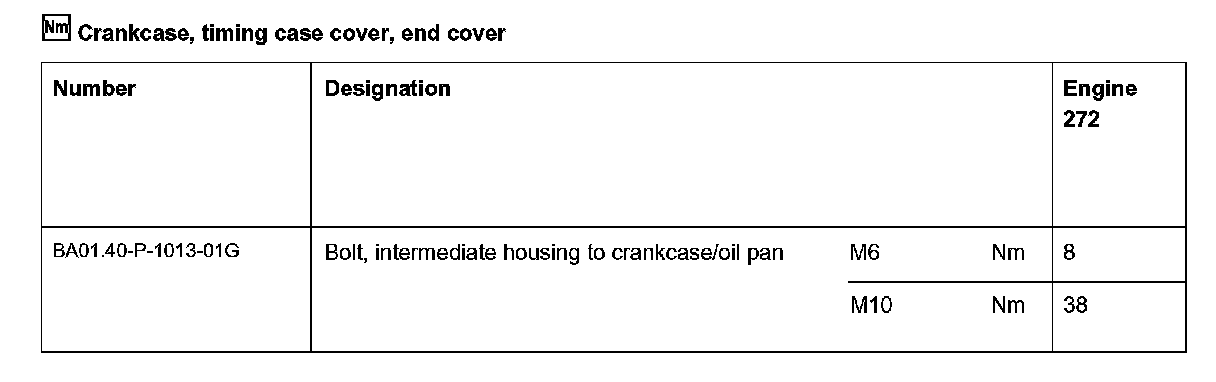

Crankcase, timing case cover, end cover:

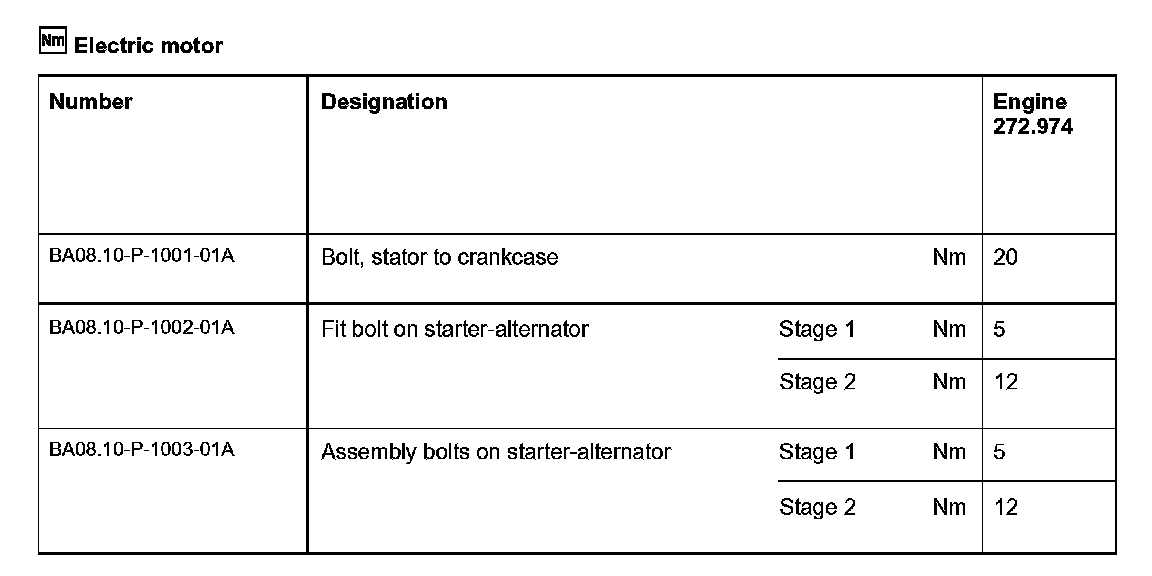

Electric motor:
Flywheel, driven plate, vibration damper, starter ring gear:

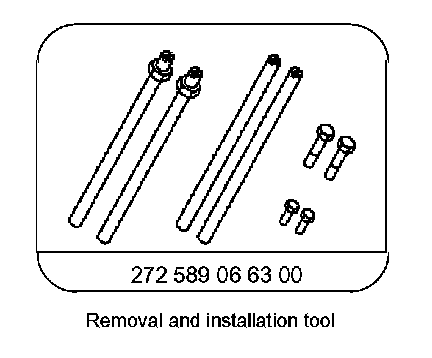

Special Tools:
