Home
>>
Mercedes Benz
>>
2012
>>
S 400 (221.195) V6-3.5L (272.974) Hybrid
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
AR15.40-P-5032SXH Remove/Install Alternator
AR15.40-P-5032SXH Remove/Install Alternator
AR15.40-P-5032SXH Remove/install
alternator

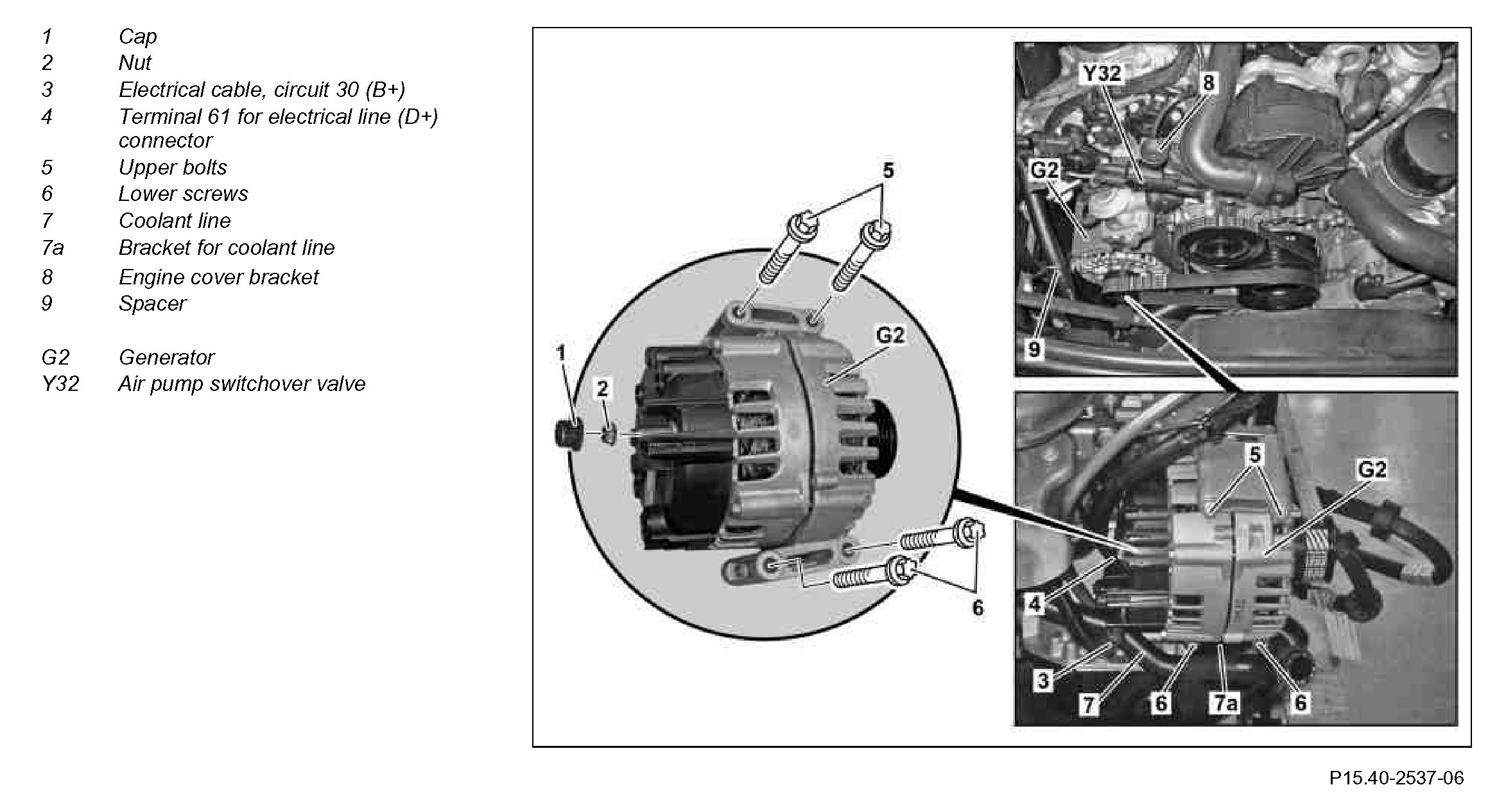

Component Identification:

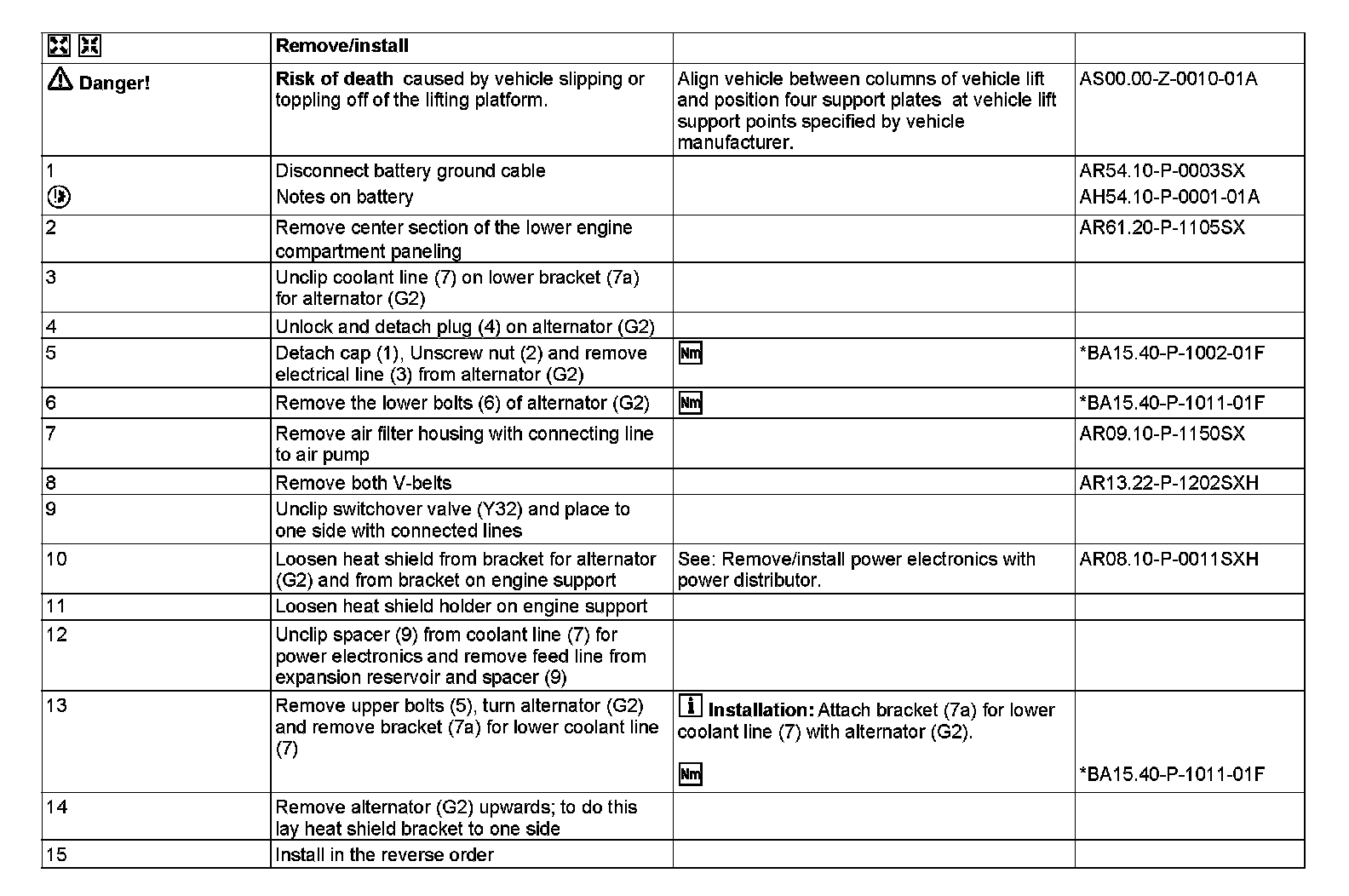

Steps 1-15:

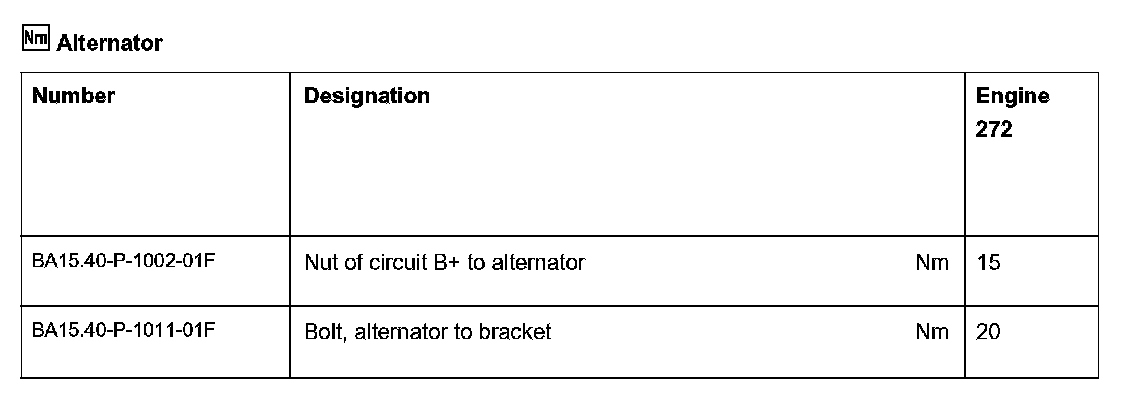

Alternator:
