AR67.10-P-1050EL Remove/Install Detachable Parts When Replacing Windshield

AR67.10-P-1050EL Remove/Install Detachable Parts When Replacing Windshield
MODEL 218

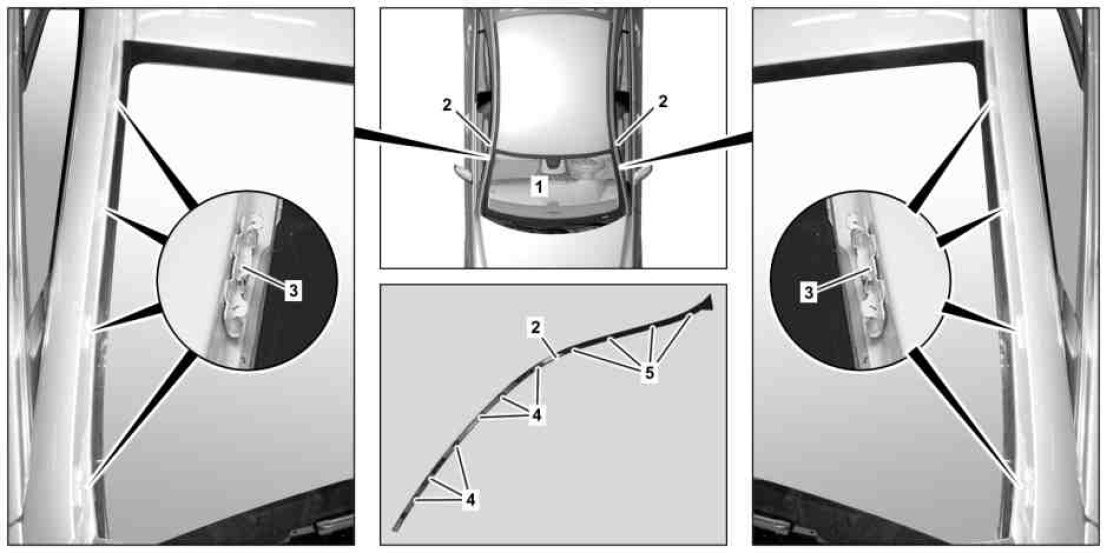

1 Windshield
2 Drip molding
3 Clips
4 Clips
5 Clips





1 Windshield

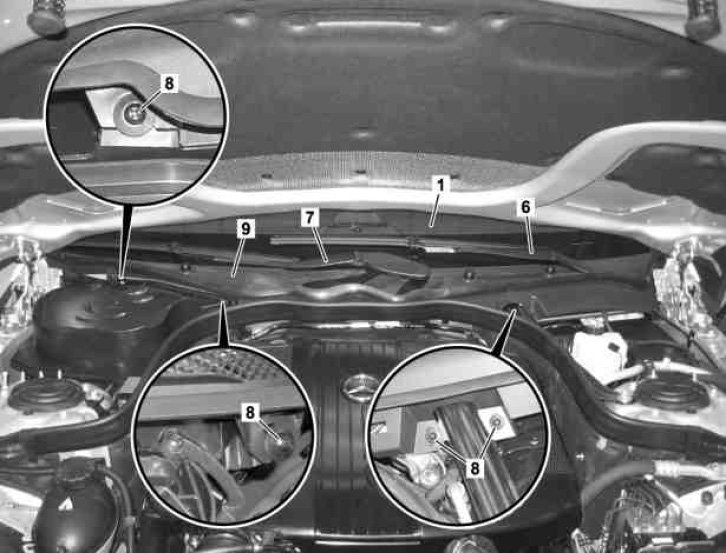

6 Driver-side wiper arm
7 Passenger-side wiper arm
8 Expansion clip
9 Water collector





1 Windshield
9 Water collector
10 Clutch
11 Connector

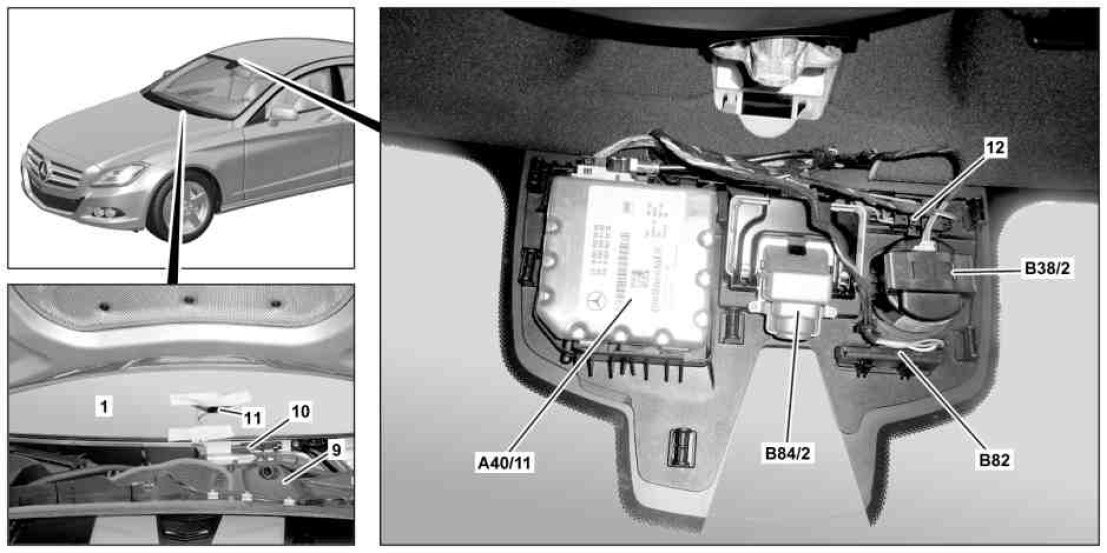

12 Electrical connector (with code (610) Night View Assist, with code (238) Active Lane Keeping Assist, code (476) Automatic Lane Keeping recognition, code (513) Speed Limit Assist, code (608) Adaptive Highbeam Assist)

A40/11 Multifunction camera (with code (238) Active Lane Keeping Assist, code (476) Automatic Lane Keeping recognition, code (513) Speed Limit Assist, code (608) Adaptive Highbeam Assist)

B38/2 Rain/light sensor
B82 Vehicle interior humidity/ temperature sensor
B84/2 Camera night view assist (with code (610) Night View Assist)








115 589 03 59 00
Long wedge
