Window Track: Adjustments

AR72.12-P-1500-01EL Adjust Rear Door Window Guide Rail








129 589 03 21 00
Feeler gauge





219 589 00 09 00
Socket wrench





Check, shown on left rear door

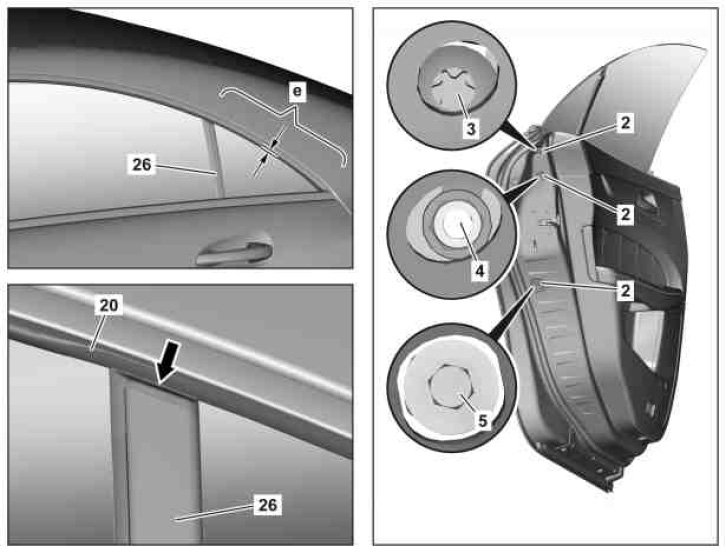

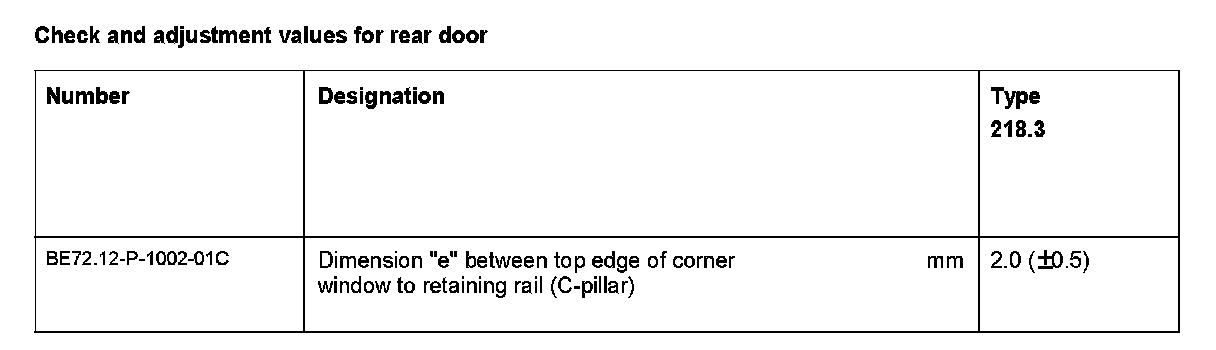

1 Close rear door and check adjustment of window guide rail (26) as well as dimension "e" of corner window, adjust if necessary
The upper end of the window guide rail (26) and the corner window should make uniform contact with the roof frame seal (20).

Adjustment shown on left rear door

2 Open rear door and remove covers (2).
3 Loosen bolt (3).
TORX screwdriver, long, T30
gotis://G_58.3_06.2
4 Loosen nut (4) and bolt (5) with socket wrench.
5 Close rear door and raise window guide rail (26) until window guide rail seal (26) makes contact with roof frame seal (20) (arrow) and dimension "e" is adjusted
6 Hold window guide rail (26) in this position, open rear door and tighten bolt (3)
7 Tighten nut (4) with socket wrench.
8 Close rear door and recheck adjustment of window guide rail (26) as well as dimension "e" of corner window, repeat adjustment if necessary
9 Tighten bolt (5) with socket wrench.
10 Install covers (2).
