Auxiliary Power Outlet: Service and Repair
AR54.10-P-1000EW Remove/install 12 Volt Socket

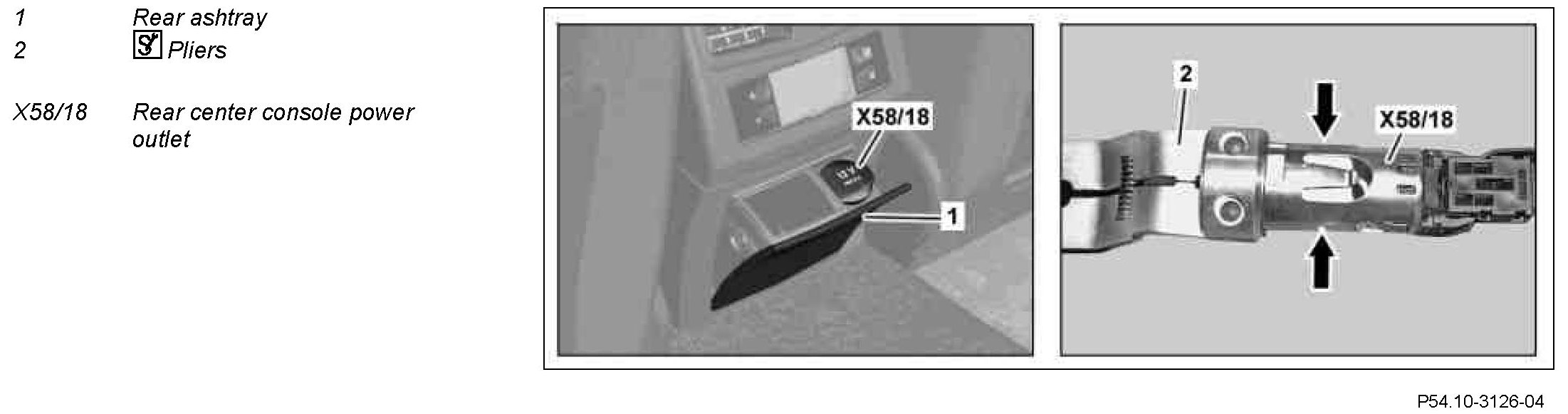

Component Identification:

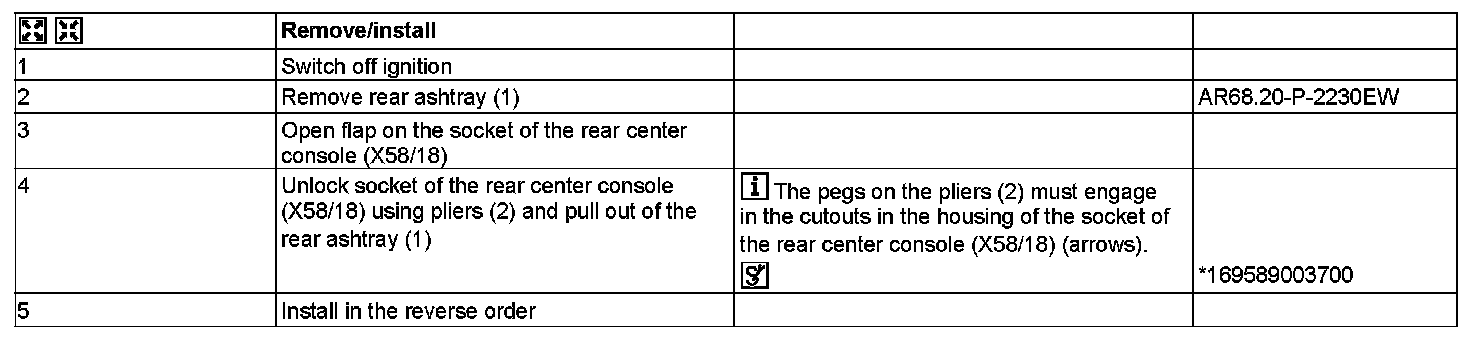

Steps 1-5:

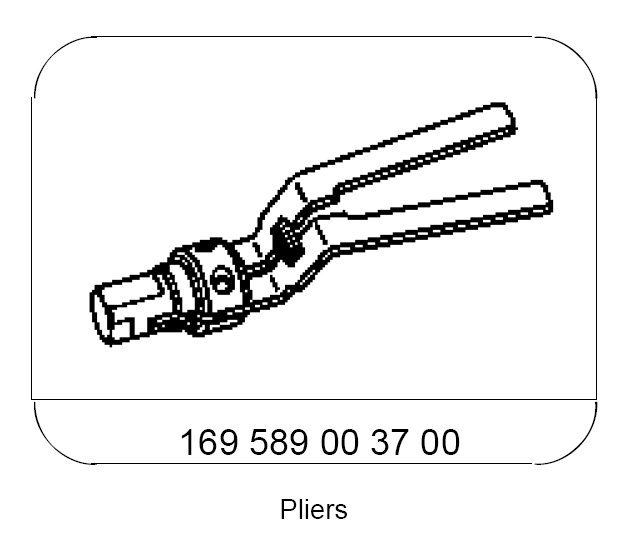

Special Tools:
