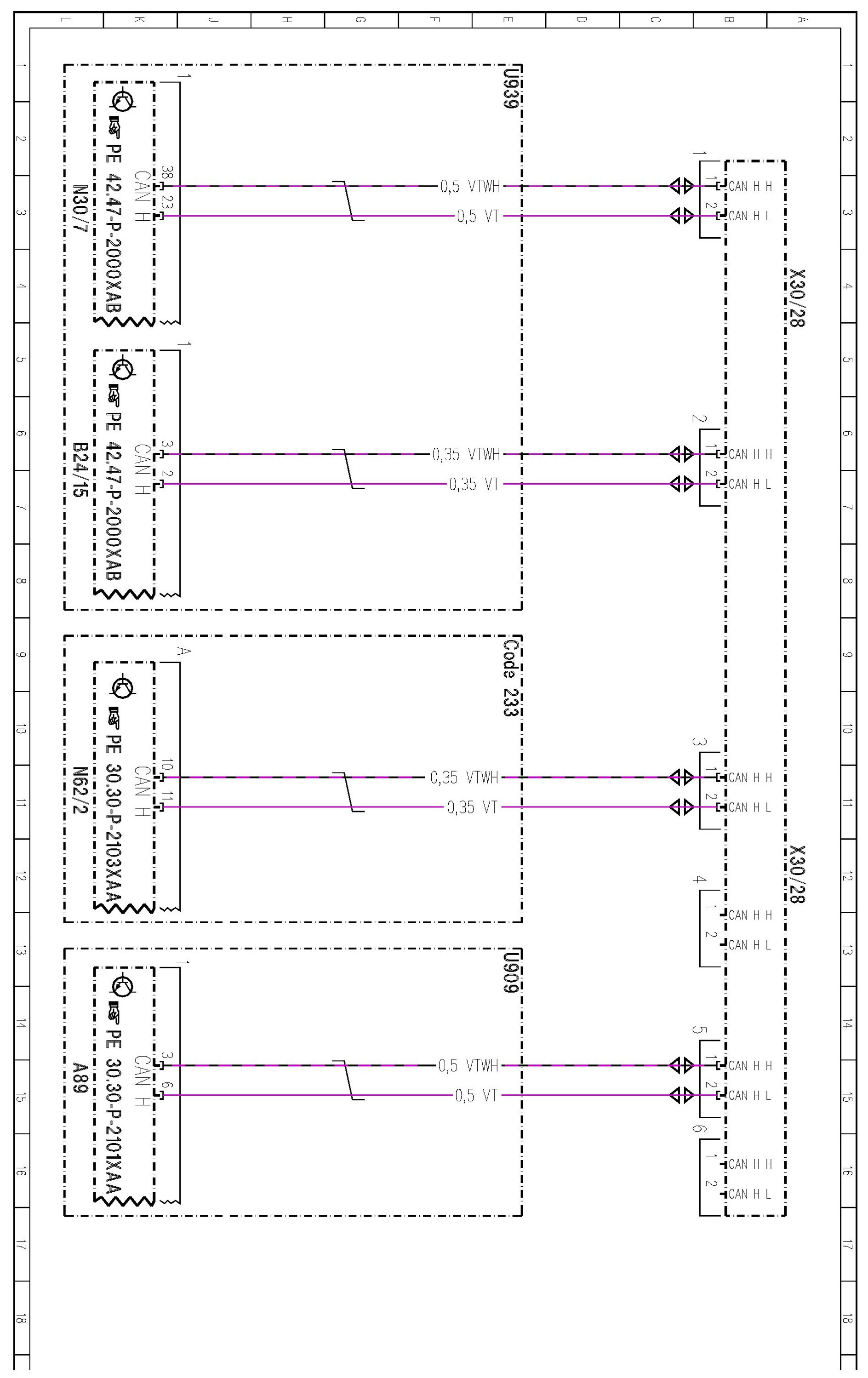

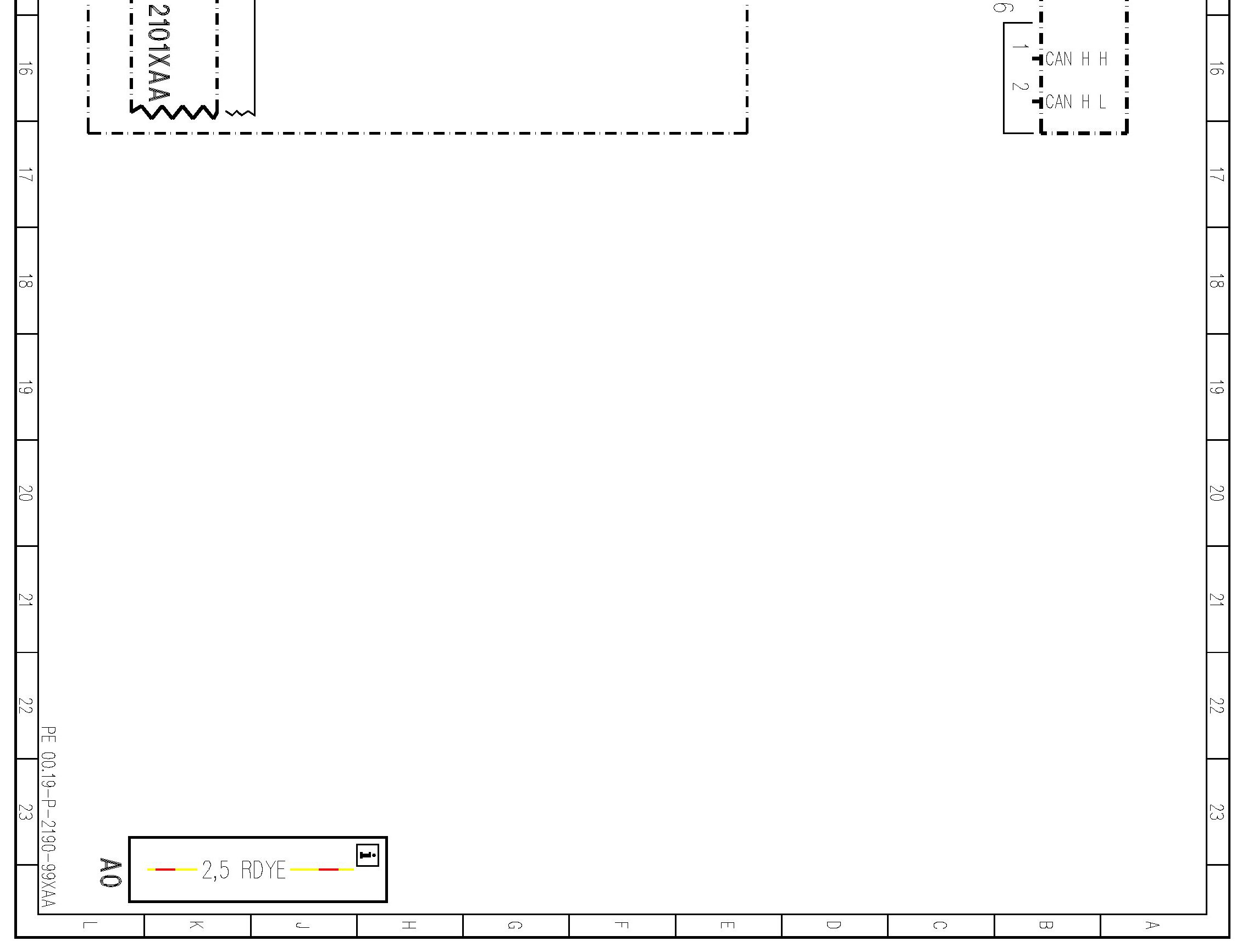

PE00.19-P-2190XAA Vehicle Dynamics CAN

PE00.19-P-2190XAA Vehicle Dynamics CAN
MODEL 218
Voltage Distributor X30/28






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
