AR40.20-P-0322-03EG Check Caster, Match With Value In Table

AR40.20-P-0322-03EG Check Caster, Match With Value In Table








RA Rear axle level value
FA Front axle level value

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

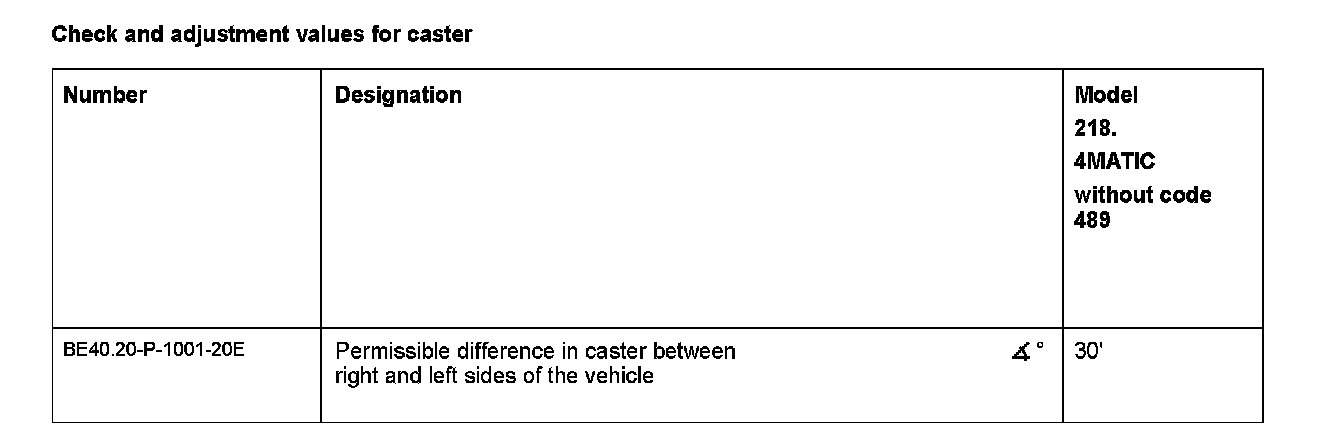

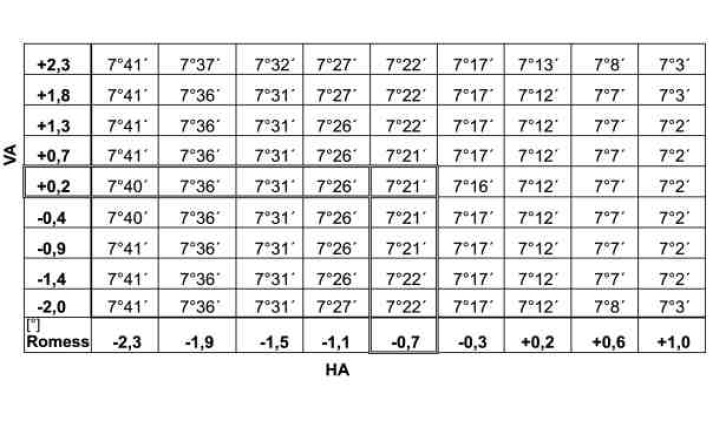

Example, see Table:

Front axle level value (FA): +0.2°
Rear axle level value (RA): -0.7°
= Caster value 7° 21' (± 30')
