AR40.20-P-0261EW Adjust Rear-Axle Toe




AR40.20-P-0261EW Adjust Rear-Axle Toe
MODEL 212, 218

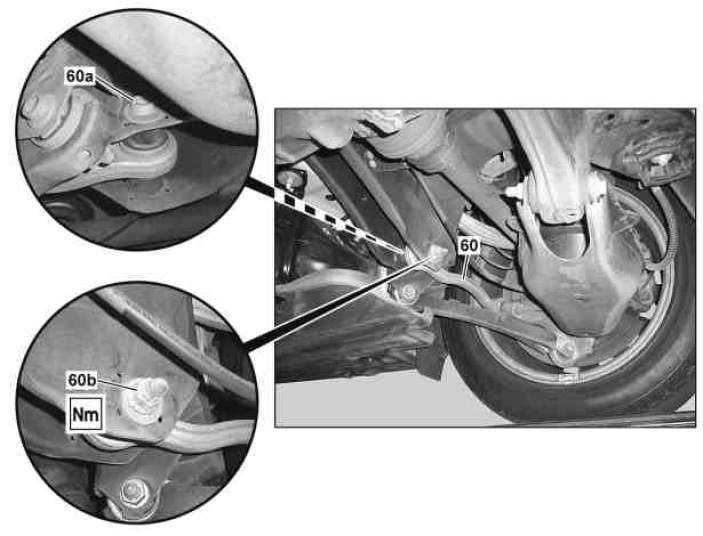

Shown on model 204.0 without 4MATIC

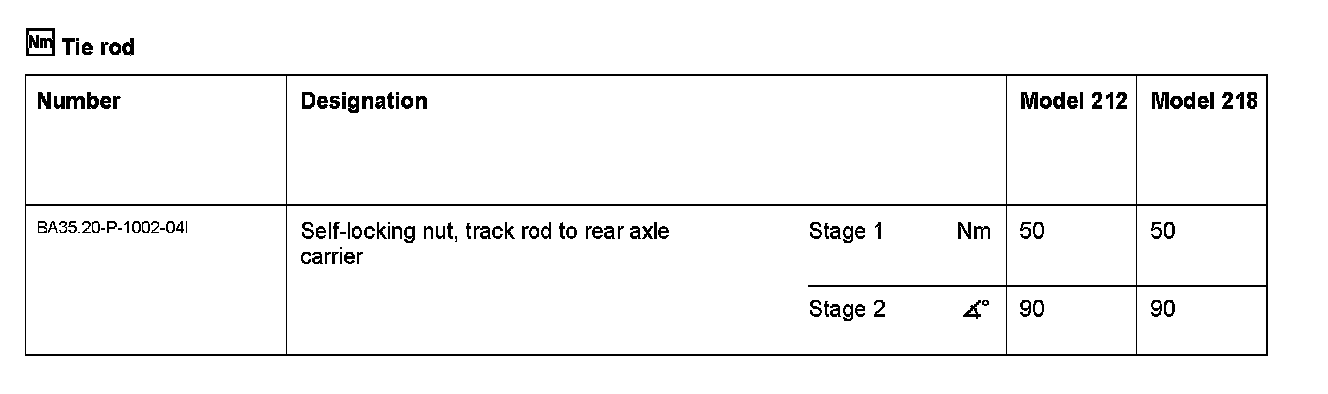

60 Tie rod
60a Cam bolt
60b Nut
