Function Diagrams

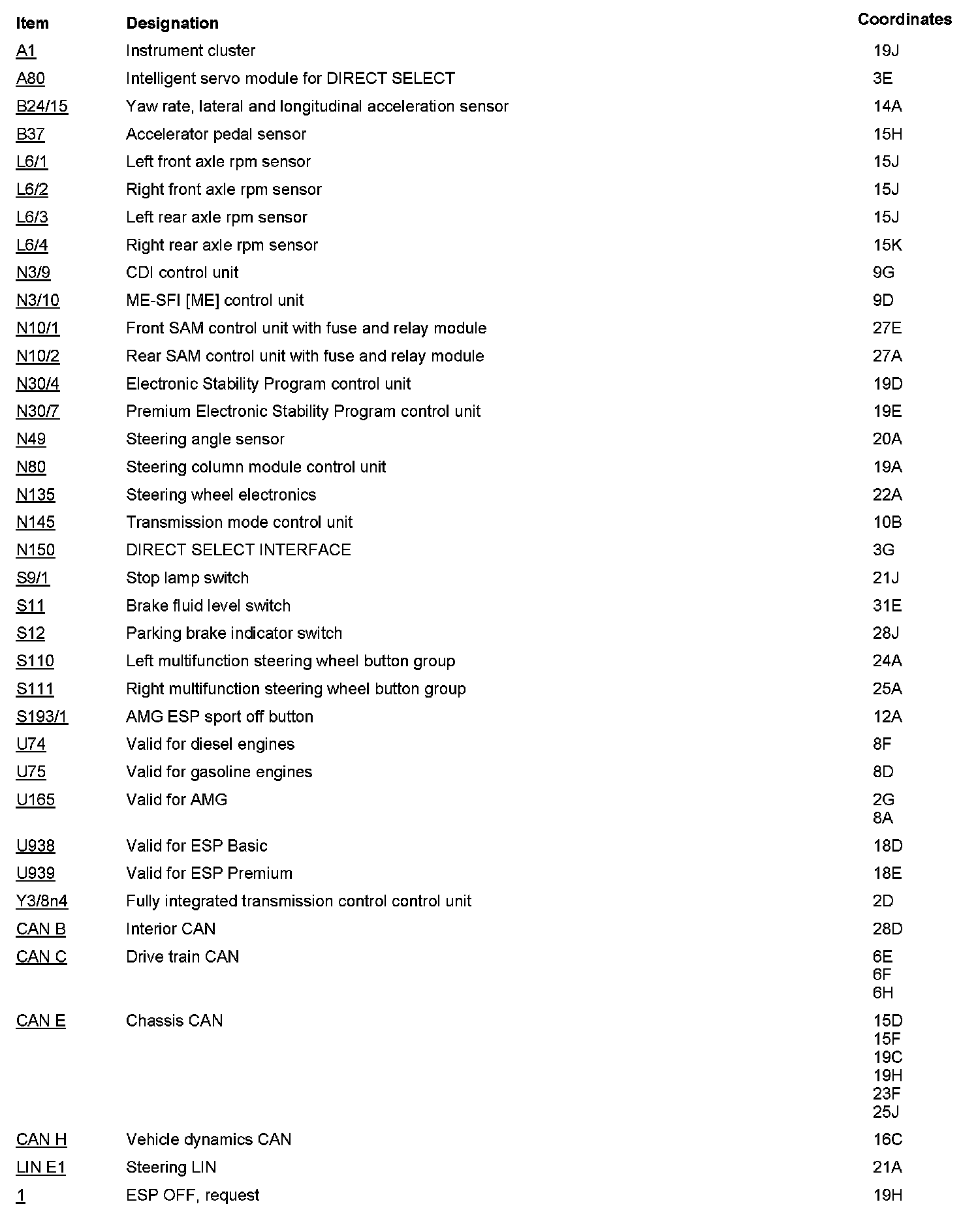

PE42.47-P-2050XAA Electrical Function Schematic For Adaptive Brake (ABR)
MODEL 218


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
