Accessory Control Display: Service and Repair

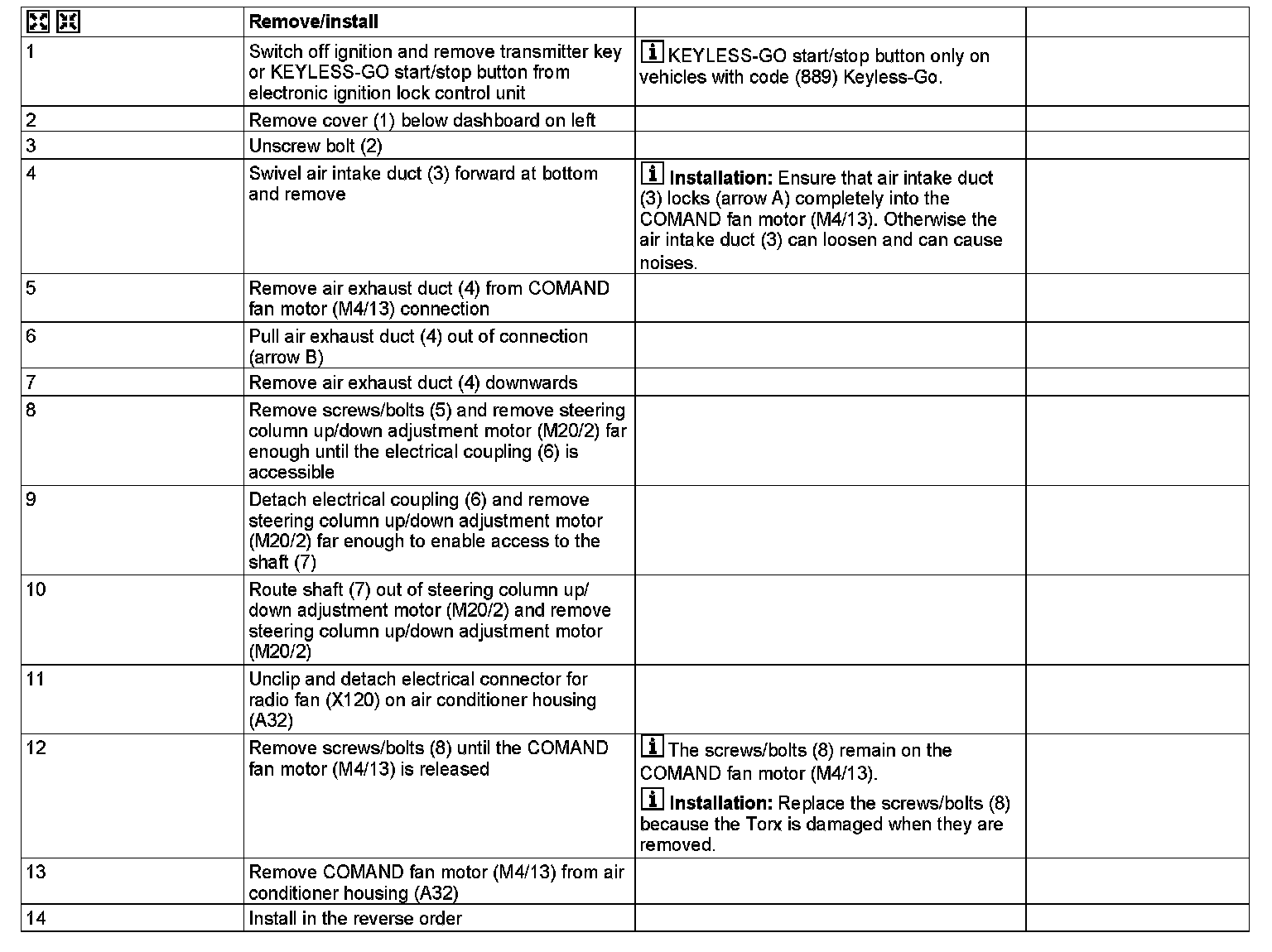

AR82.85-P-0005EL Remove/Install Additional Fan For COMAND
MODEL 218

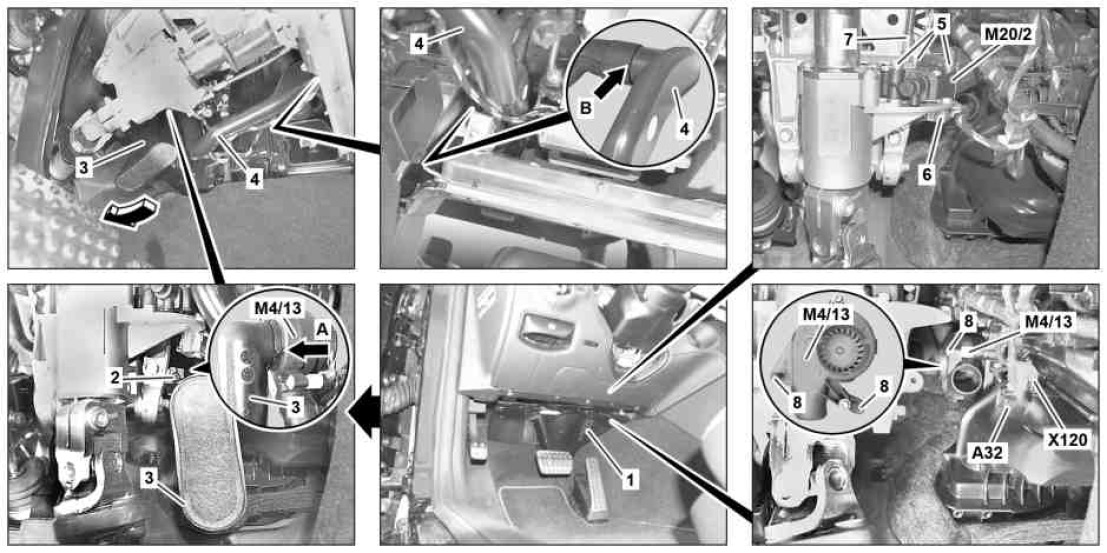

1 Cover
2 Screw
3 Air intake duct
4 Air exhaust duct
5 Bolts
6 Electrical connector
7 Shaft
8 Screw
A32 AC housing
M4/13 COMAND fan motor
M20/2 Steering column up/down adjustment motor
X120 Radio fan electrical connector

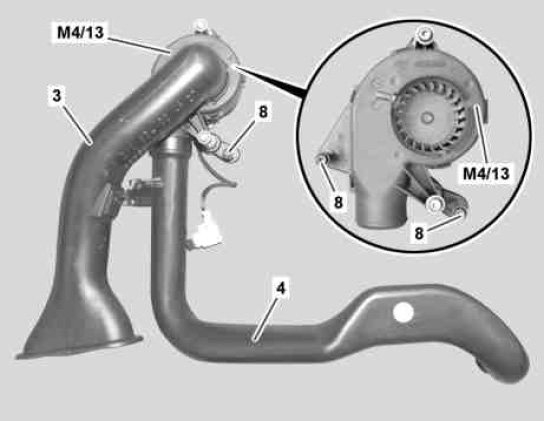

3 Air intake duct
4 Air exhaust duct
8 Screw
M4/13 COMAND fan motor
