GF82.85-P-0003FQ Cockpit Management and Data System (COMAND), Function

GF82.85-P-0003FQ Cockpit Management and Data System (COMAND), Function
MODEL 218
- with CODE (512) COMAND APS with DVD changer
- with CODE (526) COMAND with single DVD drive (without navigation)
- with CODE (528) COMAND with DVD changer
MODEL 218
- with CODE (527) COMAND APS with single DVD drive (with navigation system)
- except CODE (498) Japan version

Function requirements for Cockpit Management and Data System (COMAND), general
^ Circuit 30g ON

COMAND, general
The COMAND controller unit (A40/3) is the central control for the entertainment and communication systems integrated into the vehicle.

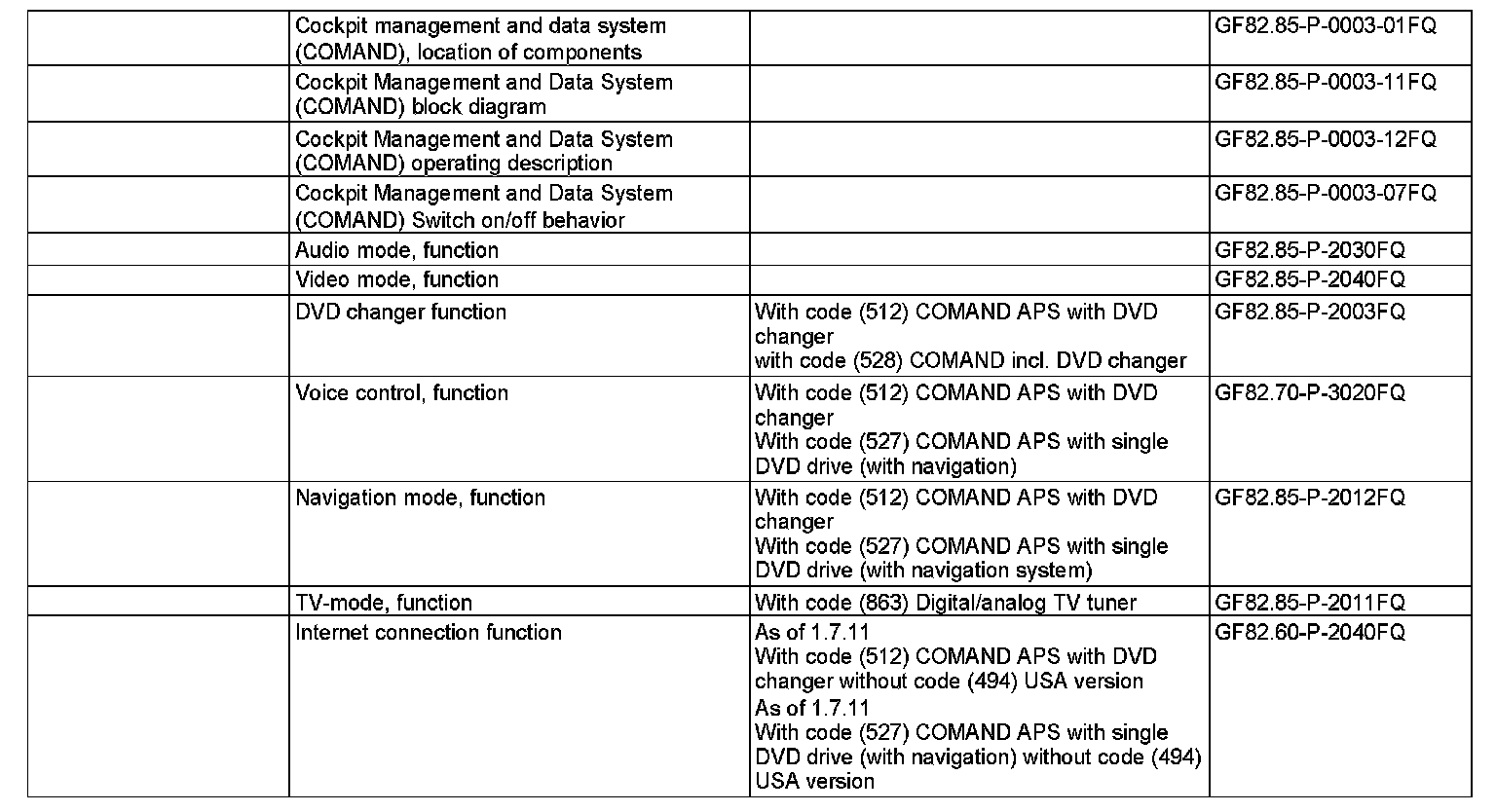

The COMAND controller unit contains the following subfunctions, which are described in separate documents:
^ Audio mode, function
- Volume/tone settings, function
- Radio mode (FM/AM)
- DVD/CD audio and video function
- Music Register
- Bluetooth(R) Audio
- Digital Audio Broadcasting (DAB) function (with code (537) Digital radio)
- Satellite digital audio radio (satellite radio) (SDAR), function (with code (536) SIRIUS-satellite radio)
- Media interface function (with code (518) Media interface)
^ Video mode, function
^ TV mode function (with code (863) Digital/analog TV tuner )
^ "DVD changer" function (with code (512) COMAND APS with DVD changer or code (528) COMAND incl. DVD changer)
^ Voice control system (VCS [SBS]) function (with code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
^ Navigation mode function (with code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
^ Internet connection function (as of 1.7.11 with code (512) COMAND APS with DVD changer except code (494) USA version or code (527) COMAND APS with single DVD drive (with navigation) except code (494) USA version)
The mobile phone system function is not described here since it is available as a separate function description.
The displays and menu presentations for the Audio/COMAND display (A40/8) are generated in the COMAND controller unit. The following applications are also displayed in the instrument cluster (A1) at the same time as being displayed in the Audio/COMAND display:
- Audio
- Cellular telephone
- Navigation
The COMAND controller unit communicates over the Media Oriented System Transport (MOST) with the following control units:
- Digital Audio Broadcasting control unit (N87/3) (with code (537) Digital radio)
- Satellite Digital Audio Radio (SDAR) control unit (N87/5) (with code (536) SIRIUS satellite radio)
- TV tuner (analog/digital) (A90/1) (with code (863) Digital/analog TV tuner)
- Sound system amplifier control unit (N40/3) (with code (810) Sound system)
- Media interface control unit (N125/1) (with code (518) Media interface)
The COMAND controller unit is the communication interface (gateway) between the following CAN systems and MOST:
- Interior CAN (CAN B)
- Telematics CAN (CAN A)
