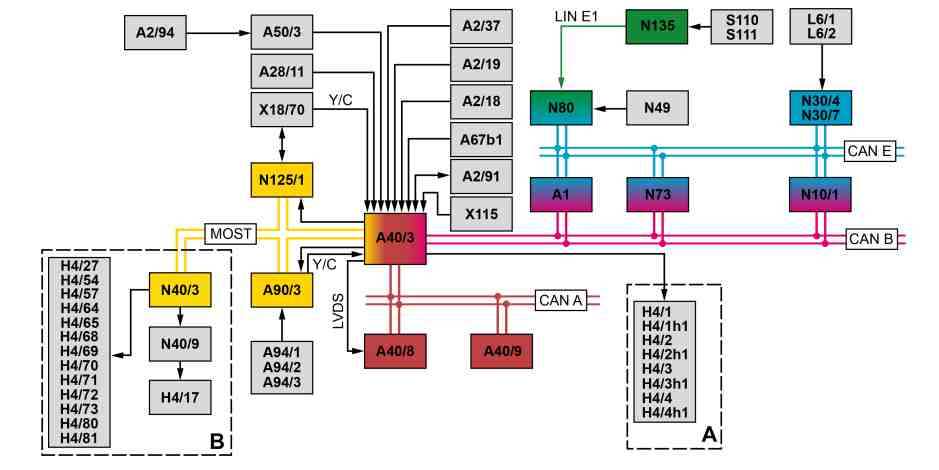

GF82.85-P-0003-11FQJ Cockpit Management and Data System (COMAND) Block Diagram

GF82.85-P-0003-11FQJ Cockpit Management and Data System (COMAND) Block Diagram
MODEL 218
- with CODE (527) COMAND APS with single DVD drive (with navigation system)
- with CODE (498) Japan version





A1 Instrument cluster
A2/18 FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier
A2/19 FM 2 and DAB antenna amplifier
A2/37 VICS control unit (dealer option)
A2/91 Bluetooth antenna
A2/94 Electronic Toll Collection antenna (ETC) (Dealer Option)
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A50/3 Electronic Toll Collection control unit (dealer option)
A67b1 Hands-free system microphone
A90/3 TV digital tuner
A94/1 TV 1 antenna amplifier
A94/2 TV 2 antenna amplifier
A94/3 TV 3 antenna amplifier
H4/1 Left front door speaker (without code (810) Sound system)
H4/1h1 Left front door tweeter (without code (810) Sound system)
H4/2 Right front door speaker (without code (810) Sound system)
H4/2h1 Right front door tweeter (without code (810) Sound system)
H4/3 Left rear door speaker (without code (810) Sound system)
H4/3h1 Left rear door tweeter (without code (810) Sound system)
H4/4 Right rear door speaker (without code (810) Sound system)
H4/4h1 Right rear door tweeter (without code (810) Sound system)
H4/17 Bass speaker (with code (810) Sound system)
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
H4/64 Left front door sound system bass speaker (with code 810) Sound system)
H4/65 Right front door sound system bass speaker (with code (810) Sound system)
H4/68 Left front door sound system tweeter (with code (810) Sound system)
H4/69 Right front door sound system tweeter (with code (810) Sound system)
H4/70 Left rear door sound system tweeter (with code (810) Sound system)
H4/71 Right rear door sound system tweeter (with code (810) Sound system)
H4/72 Left front door sound system midrange speaker (with code (810) Sound system)
H4/73 Right front door sound system midrange speaker (with code (810) Sound system)
H4/80 Left rear door sound system midrange speaker (with code (810) Sound system)
H4/81 Right rear door sound system midrange speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit (without model 218.374)
N30/7 Premium Electronic Stability Program control unit (model 218.374)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N40/9 Rear bass speaker amplifier (with code (810) Sound system)
N49 Steering angle sensor
N73 Electronic ignition switch control unit
N80 Steering column module control unit
LIN E1 Steering LIN
LVDS Low voltage differential signal
MOST Media Oriented System Transport
Y/C Y-brightness (luminance)/C-color information (chrominance)
A Vehicle without code (810) Sound system
B Vehicle with code (810) Sound system
