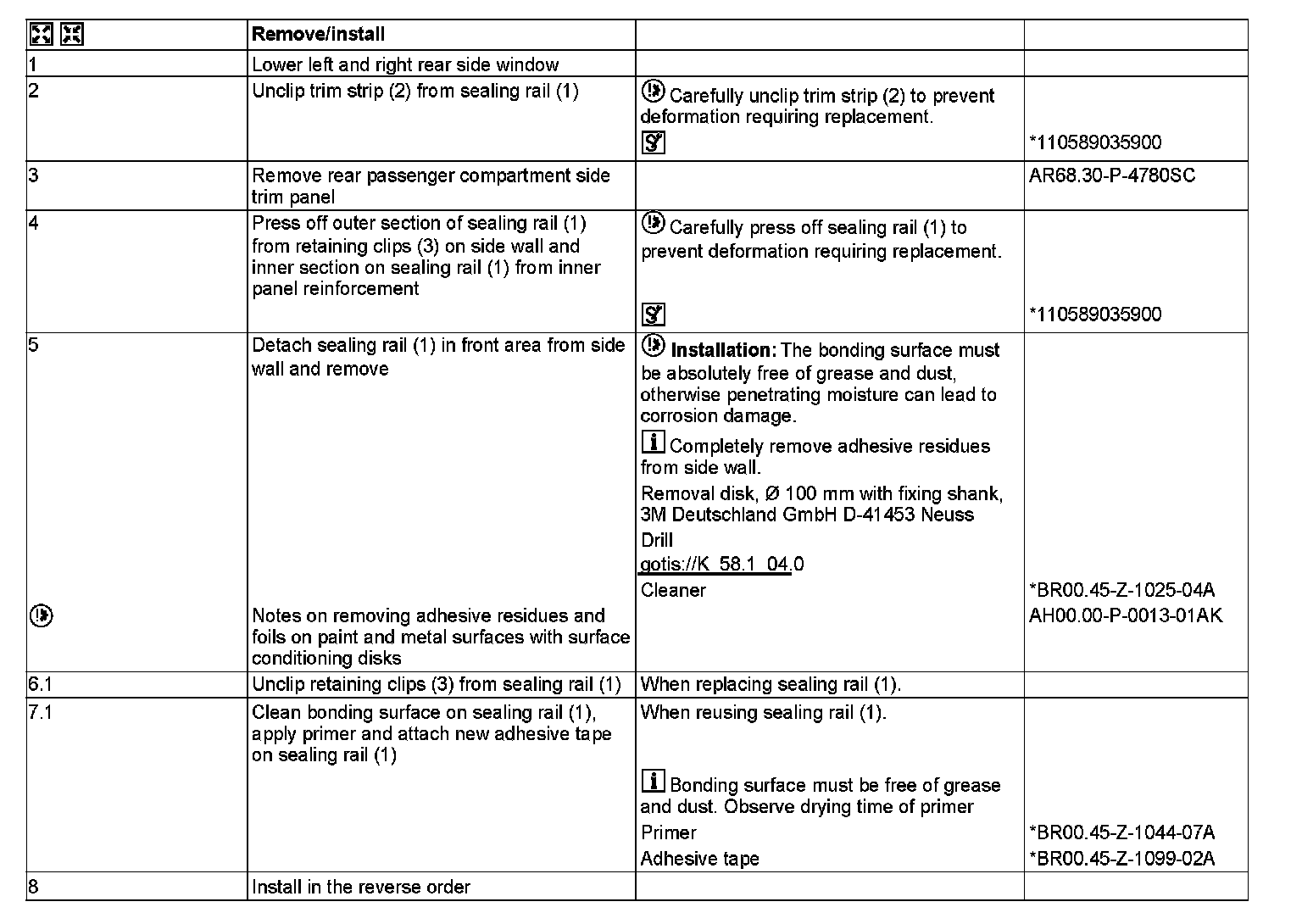

AR67.30-P-4070SC Remove/Install Rear Side Window Sealing Rail




AR67.30-P-4070SC Remove/Install Rear Side Window Sealing Rail
MODEL 216.3

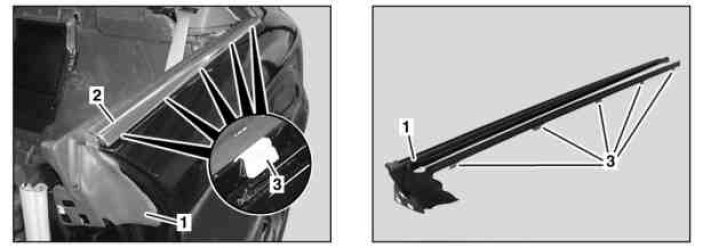

1 Sealing rail
2 Trim strip
3 Retaining clips








110 589 03 59 00
Mounting wedge
