Home >> Mercedes Benz >> 2012 >> CL 600 (216.376) V12-5.5L Turbo (275.953) >> Repair and Diagnosis >> Transmission and Drivetrain >> Flex Plate >> Service and Repair >> AR03.30-P-5000SZ Remove/Install Retaining Lock For Crankshaft/Ring Gear

AR03.30-P-5000SZ Remove/Install Retaining Lock For Crankshaft/Ring Gear



AR03.30-P-5000SZ Remove/install retaining lock for crankshaft/ring gear

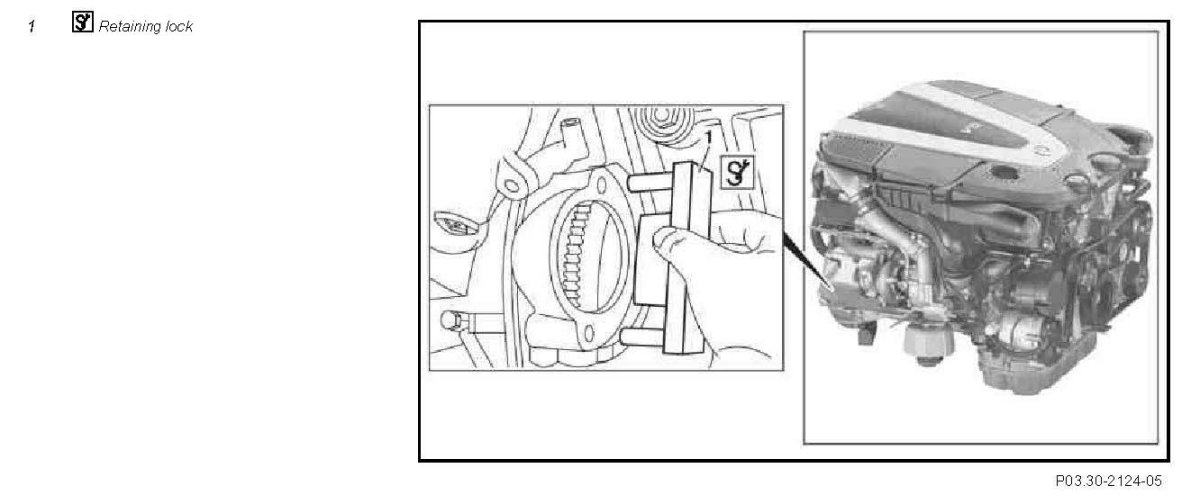

Component Identification:

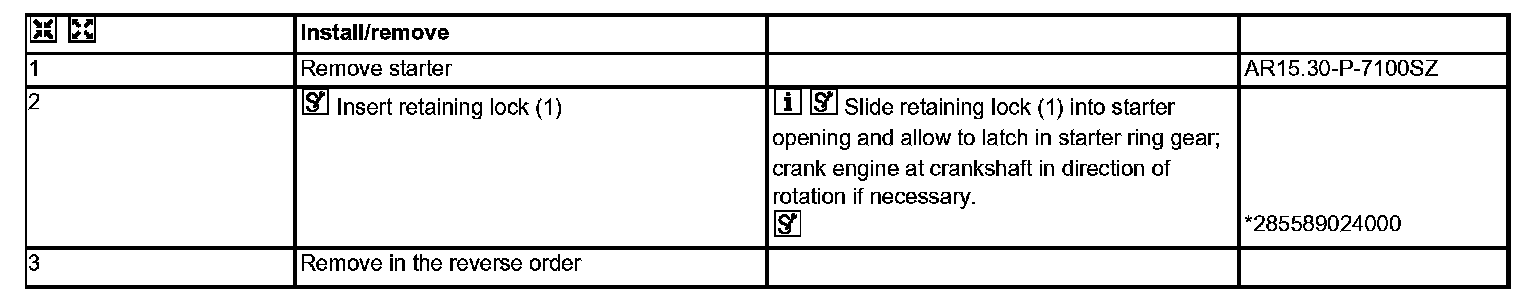

Remove/install Steps 1-3:

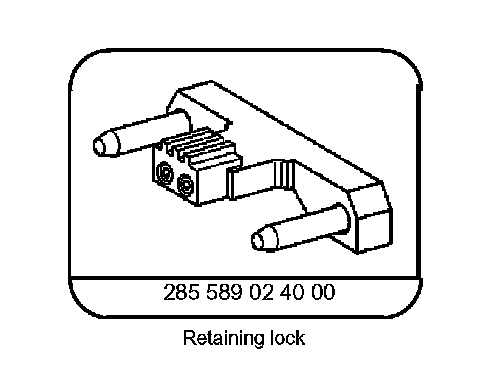

Special Tools:
