AR15.40-P-5011SX Test Alternator Charging Current



AR15.40-P-5011SX Test alternator charging current

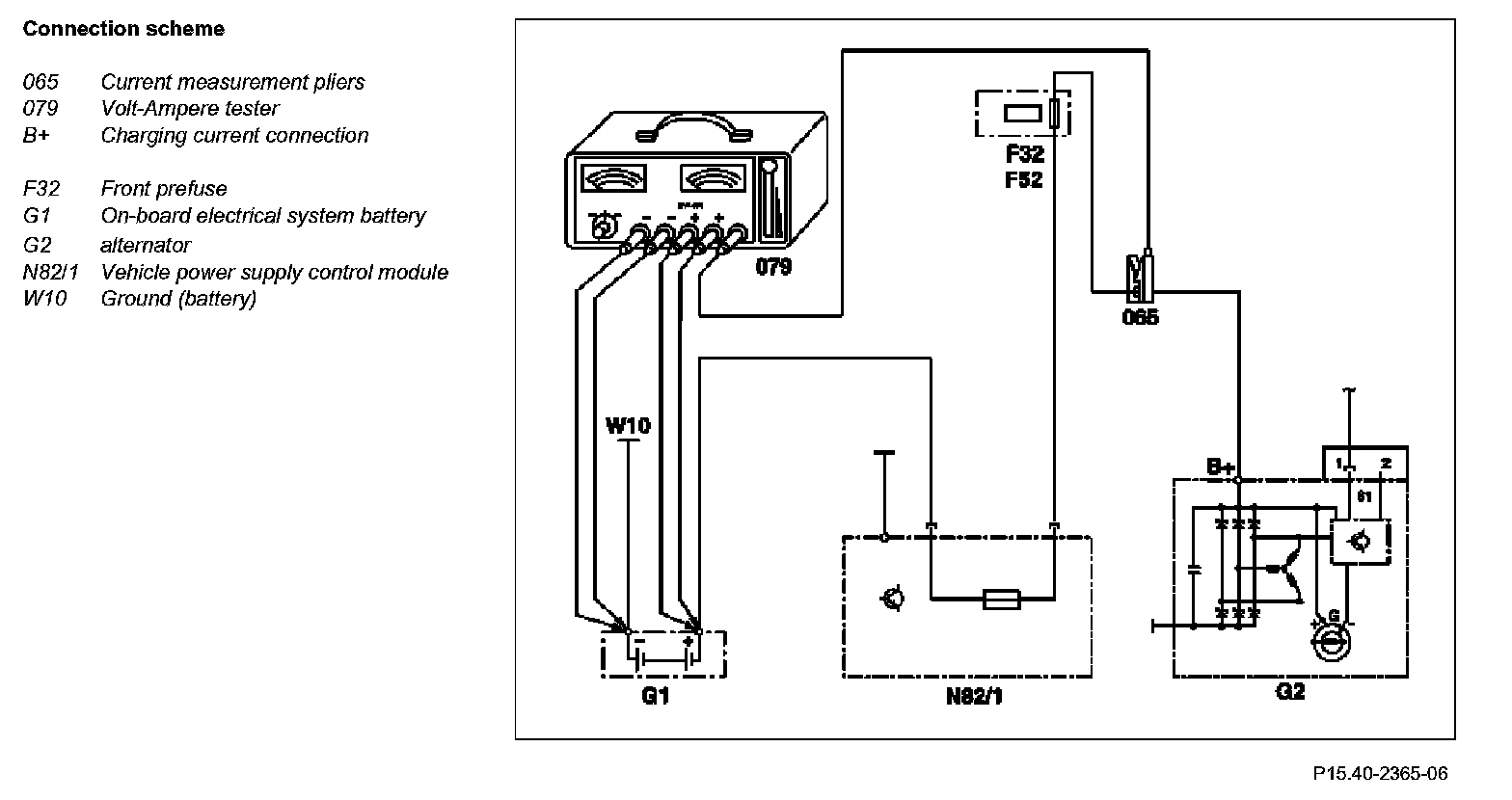

Connection scheme:

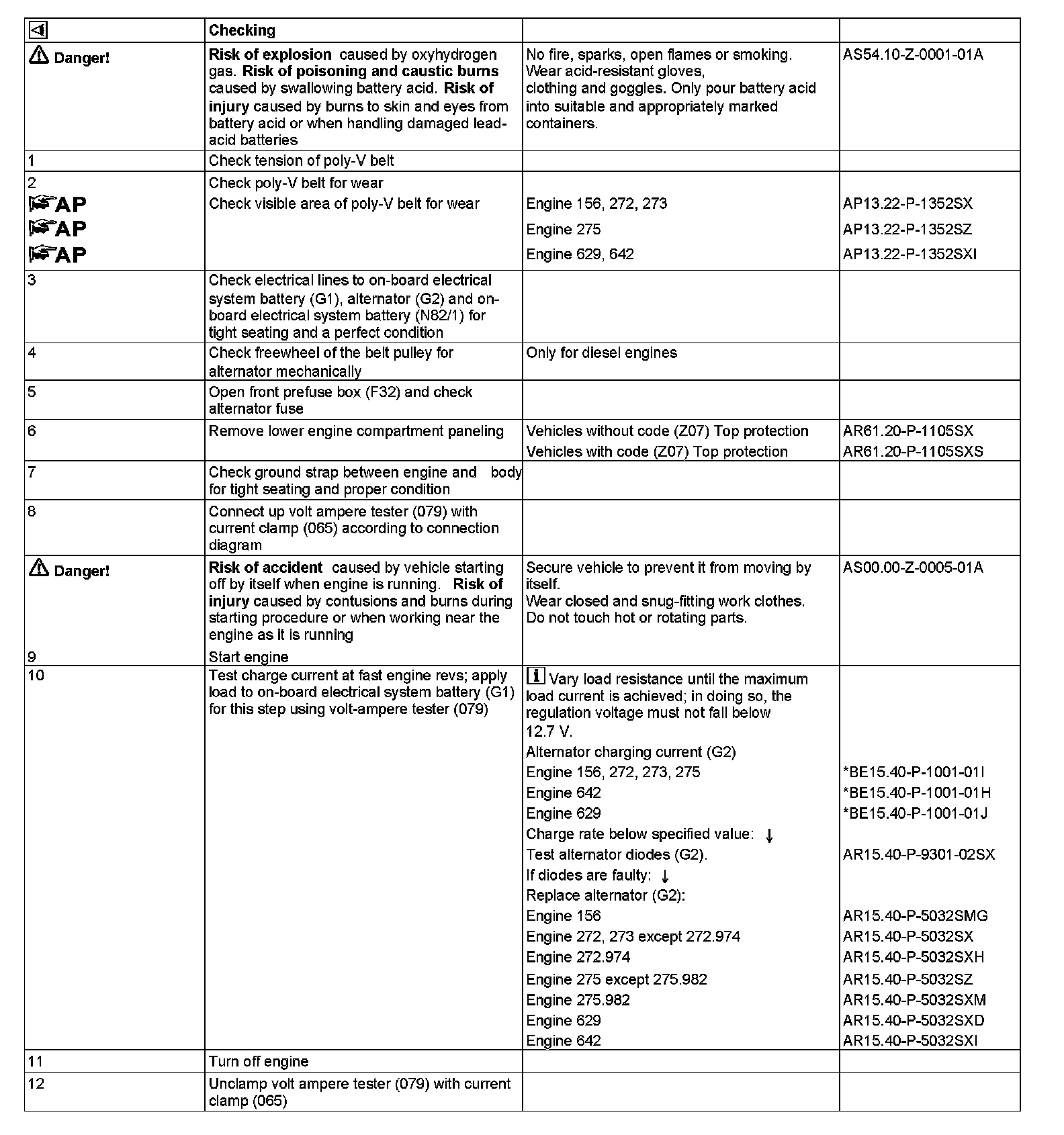

Steps 1-12:

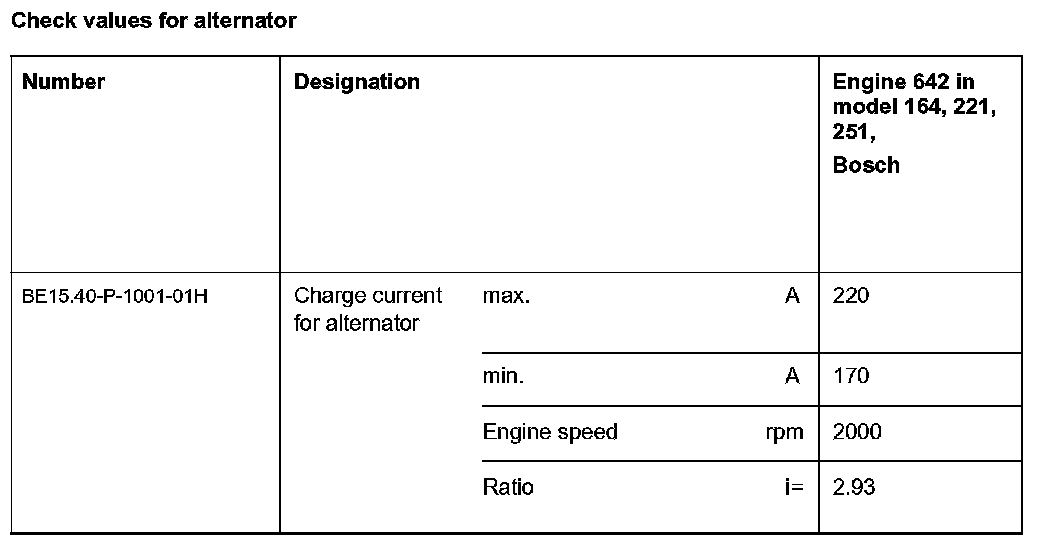

Check values for alternator:

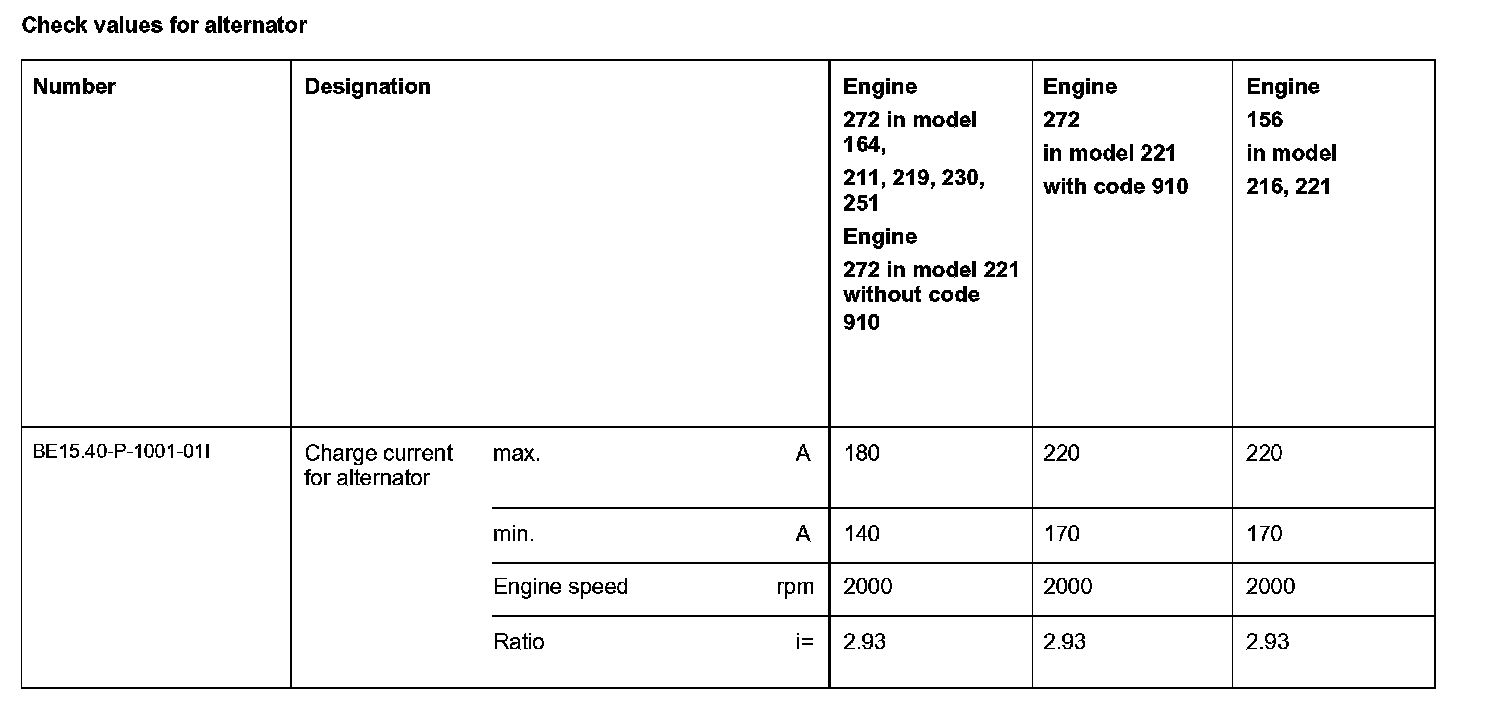

Check values for alternator:

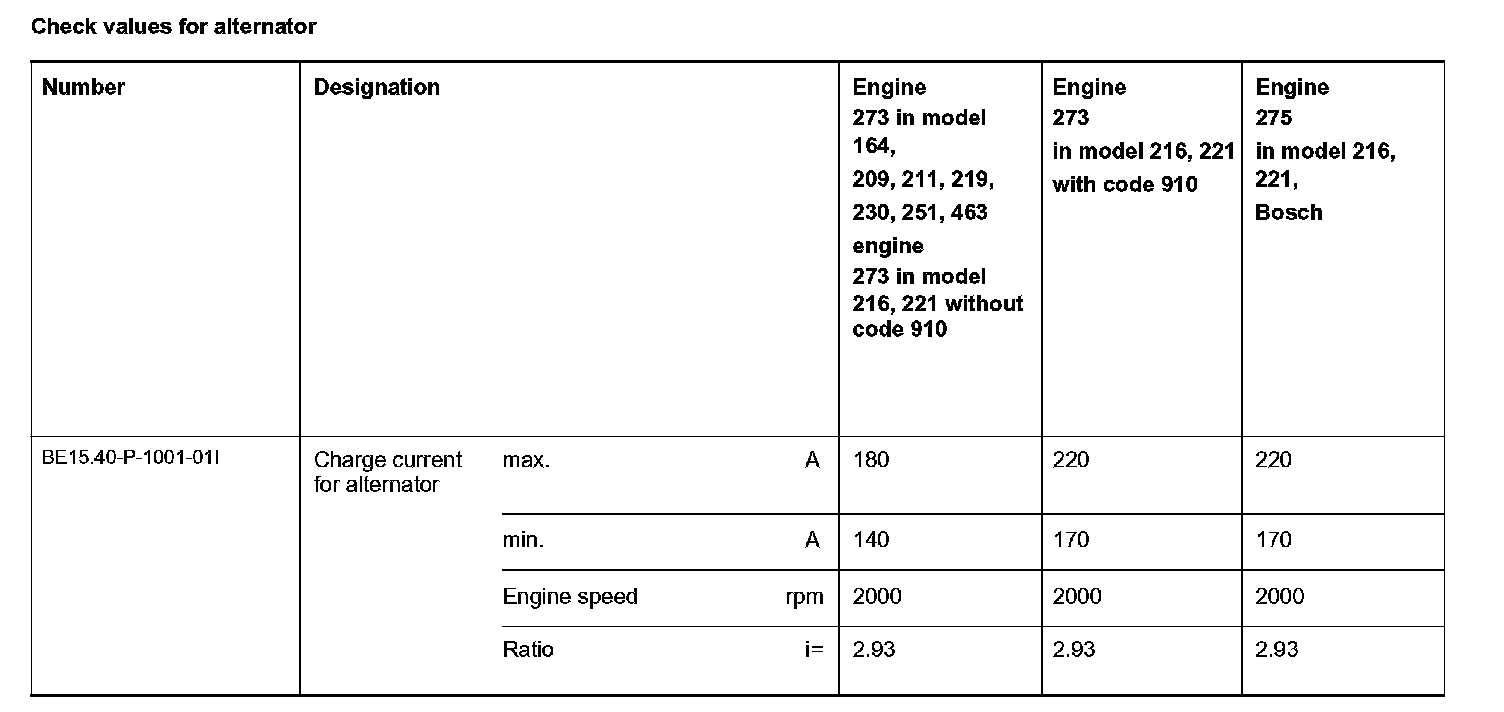

Check values for alternator:

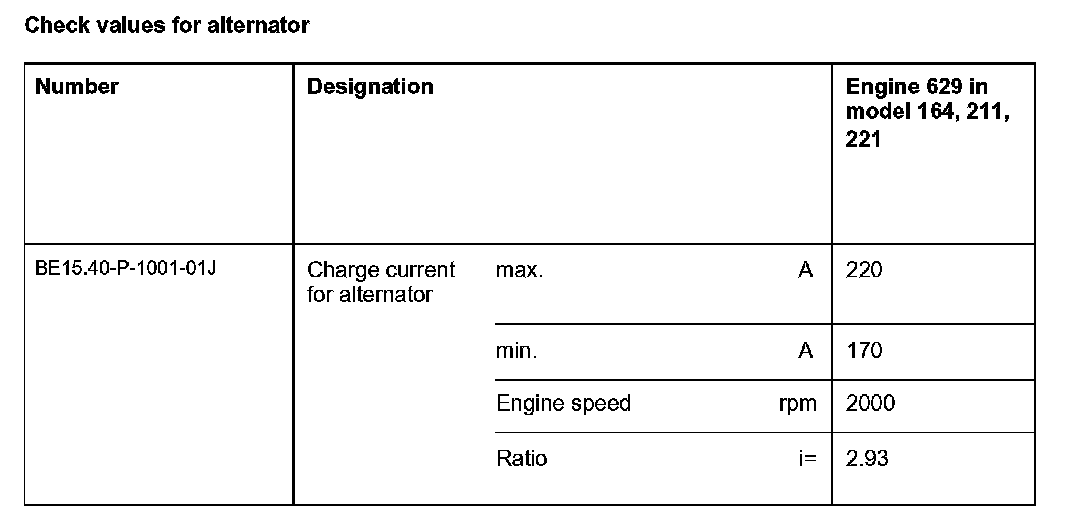

Check values for alternator:
