Air Injection Pump: Service and Repair



AR14.30-P-7251SZ Remove/install air pump

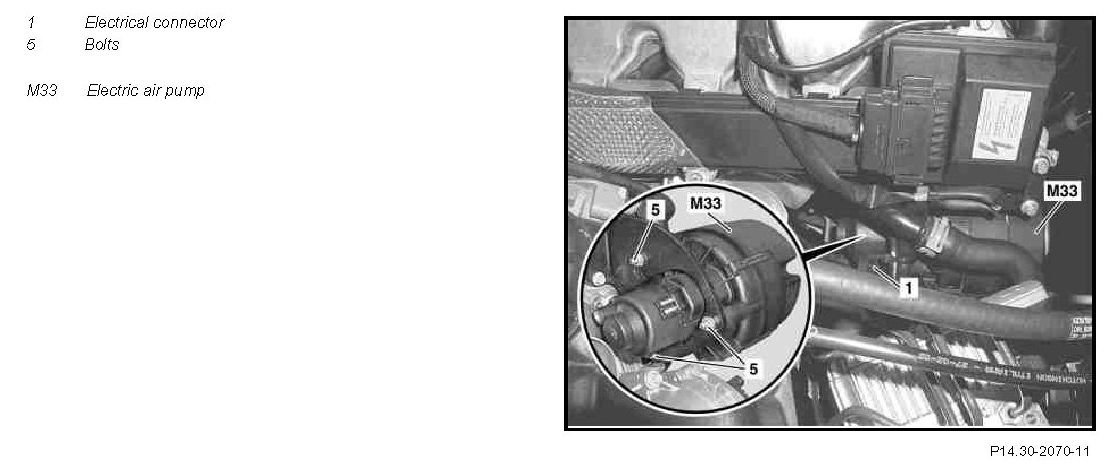

Component Identification:

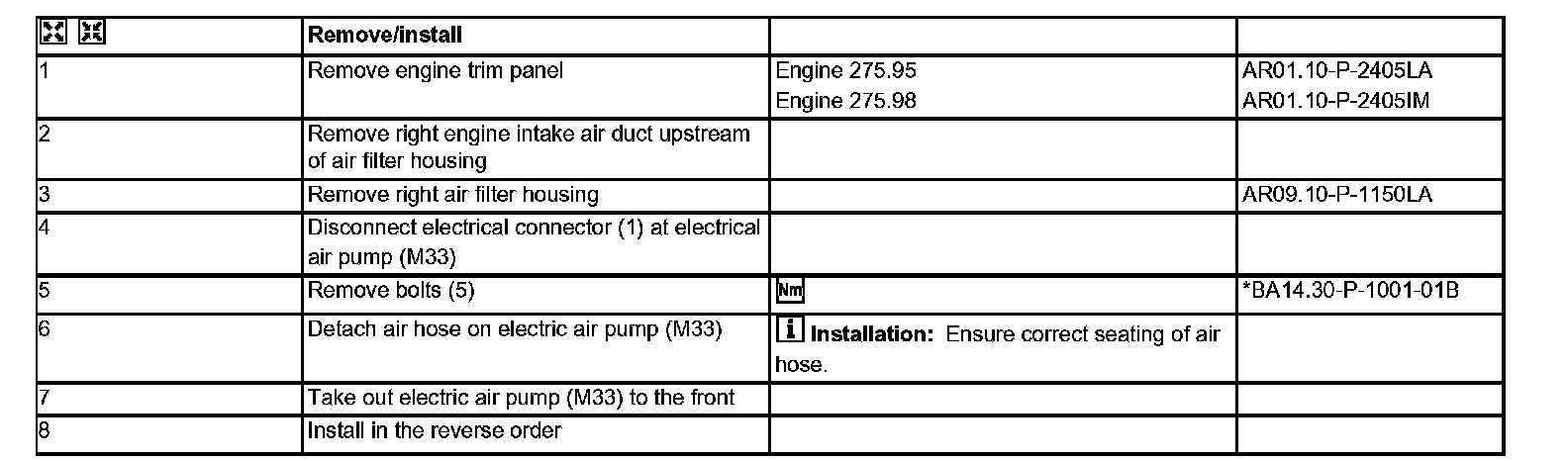

Remove/install Steps 1-8:

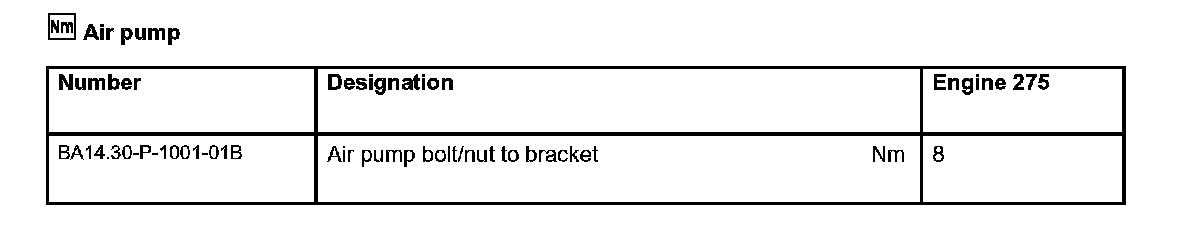

Air pump:
