Home >> Mercedes Benz >> 2012 >> CL 600 (216.376) V12-5.5L Turbo (275.953) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Control Valve >> Service and Repair

Air Injection Control Valve: Service and Repair

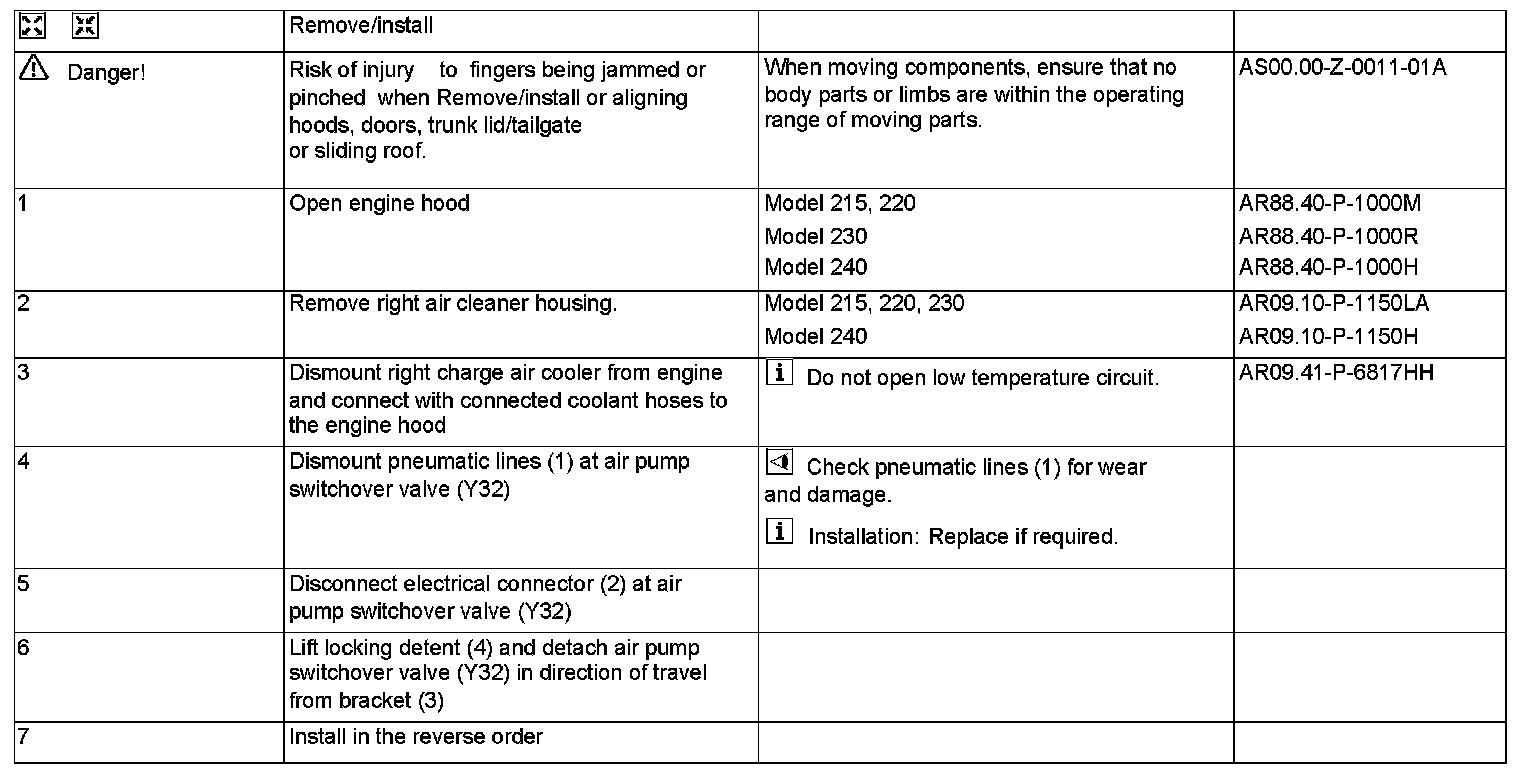

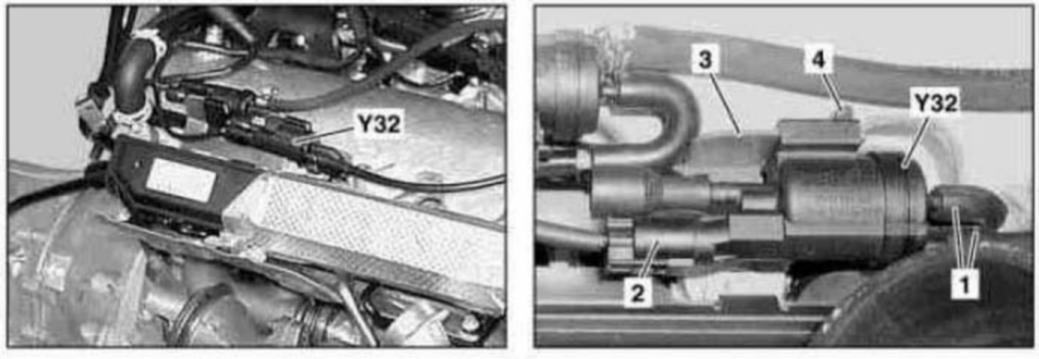

AR14.30-P-7255H Remove/install air pump switchover valve
