Radiator: Service and Repair
AR20.20-P-3865SZ Remove/install radiator

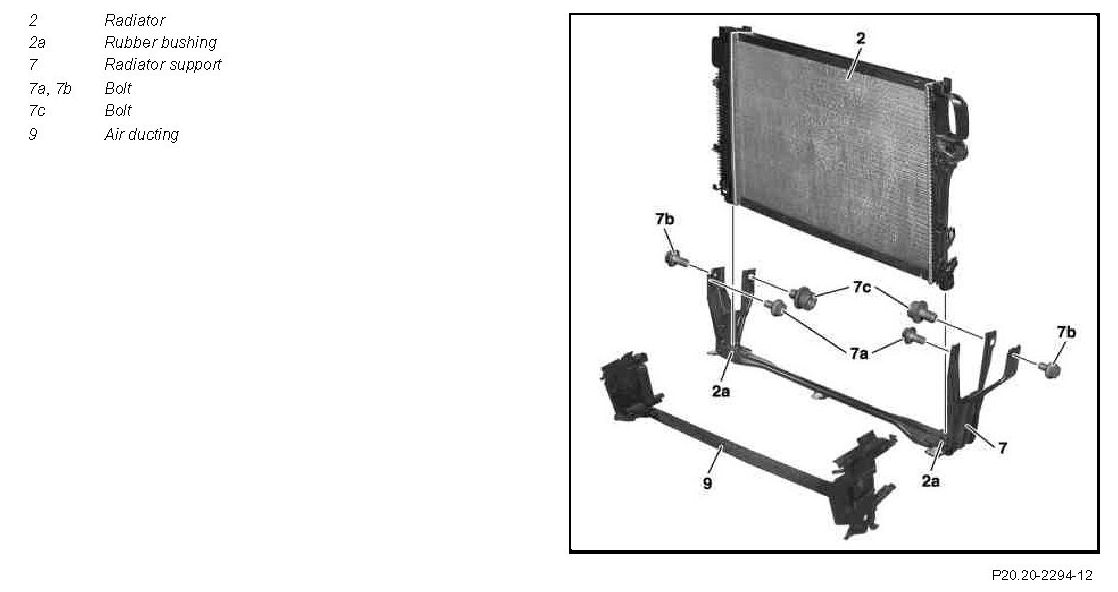

Component Identification:

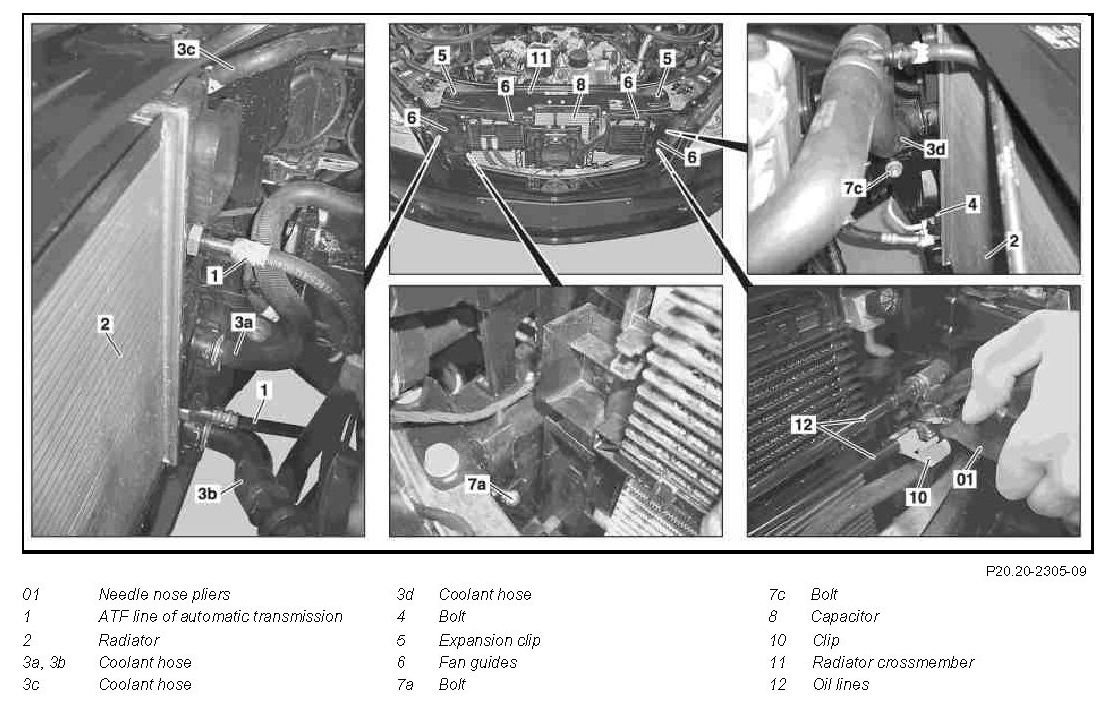

Component Identification:

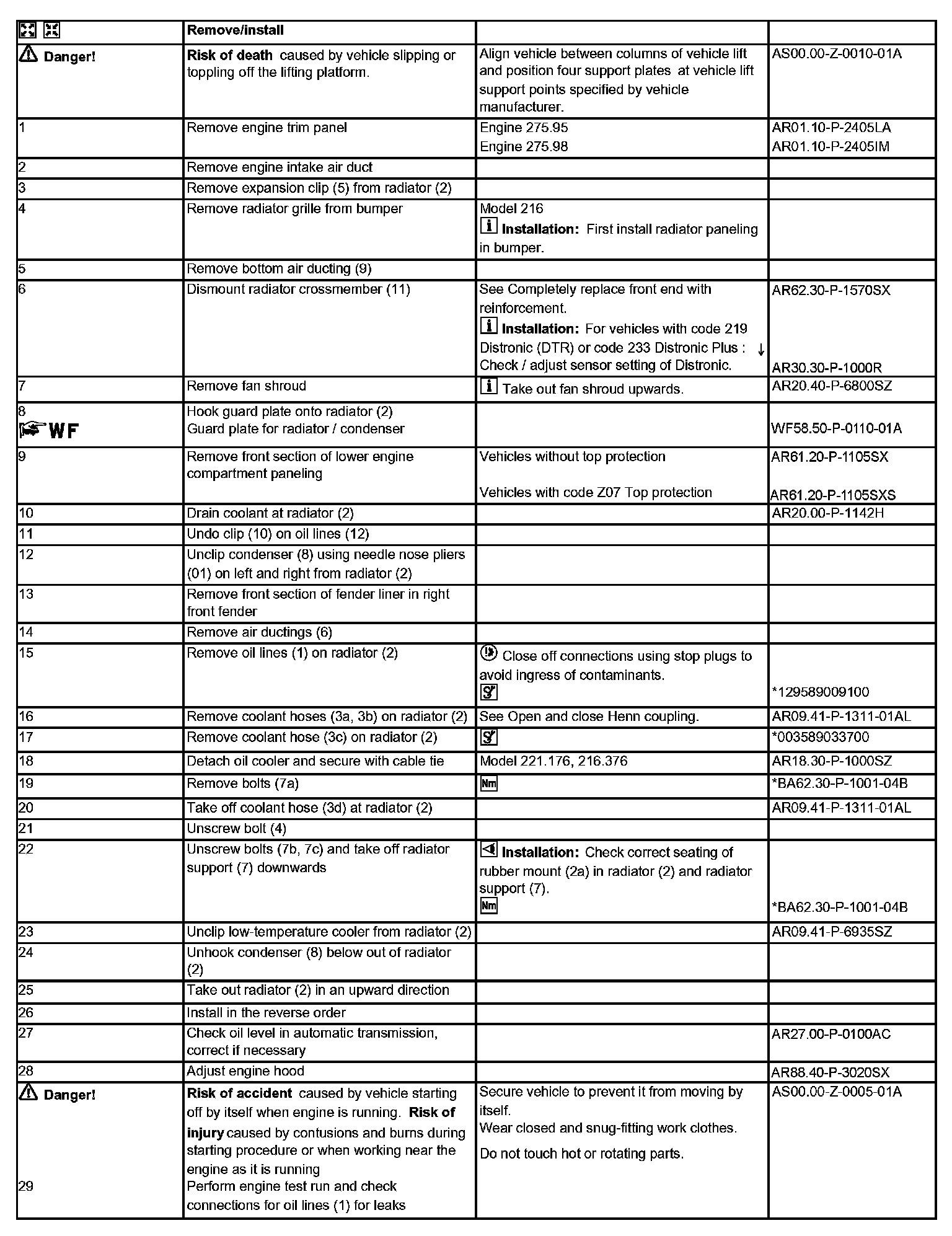

Remove/install Steps 1-29:

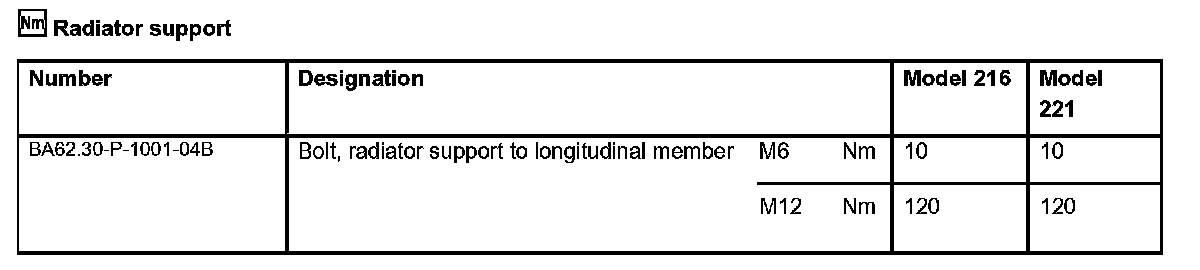

Radiator support:

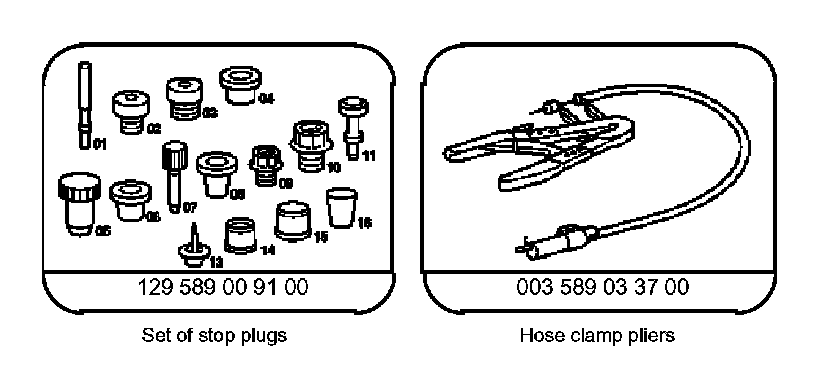

Special Tools:
