AR54.30-P-6000SX Remove/Install Additional Fan For Instrument Cluster/COMAND Display



AR54.30-P-6000SX Remove/Install Additional Fan For Instrument Cluster/COMAND Display

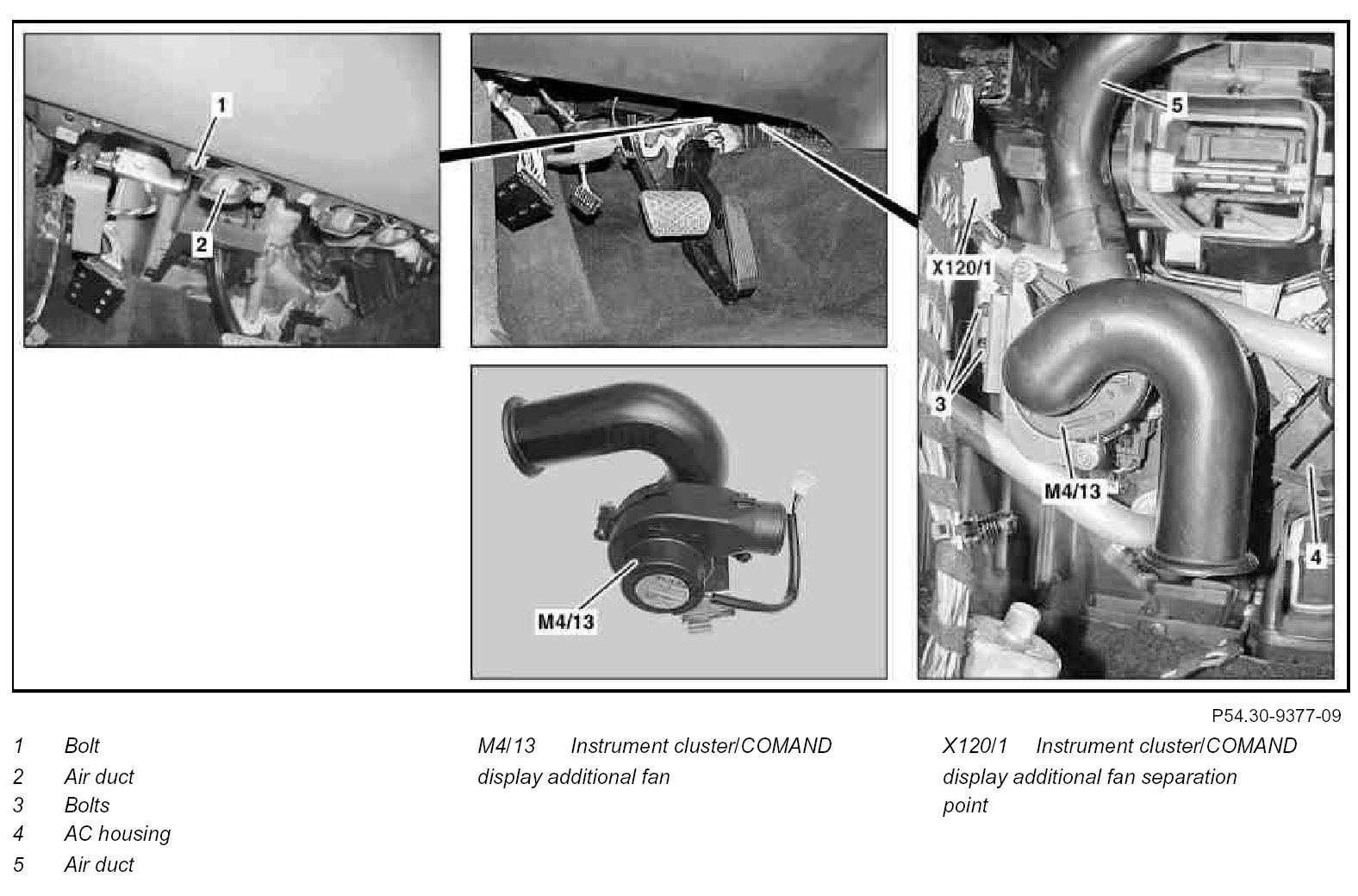

Component Identification:

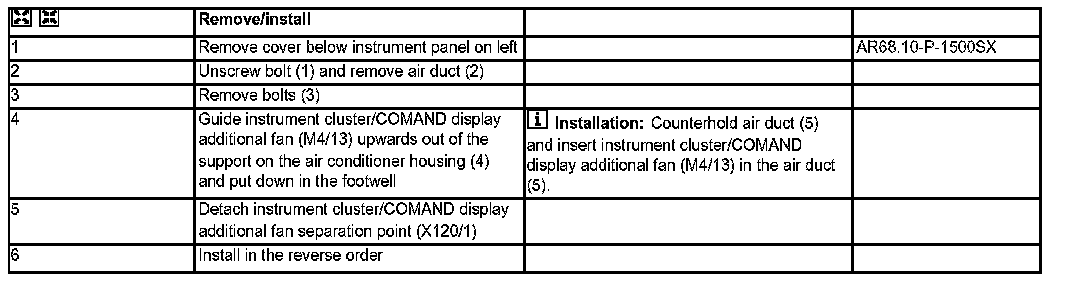

Steps 1 - 6:
