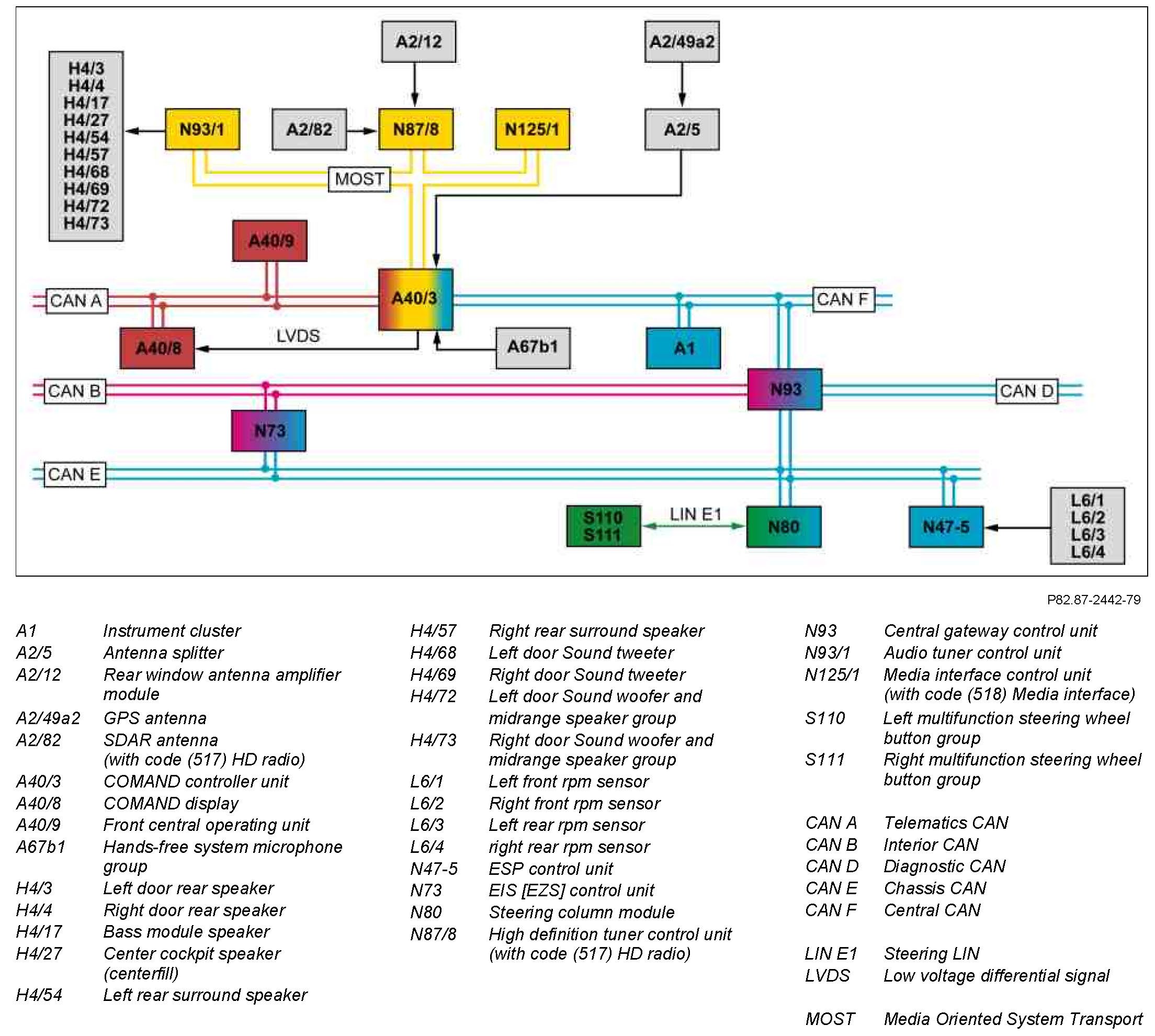

GF82.85-P-0003-11LAV Cockpit Management and Data System (COMAND) Block Diagram



GF82.85-P-0003-11LAV Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (530) COMAND APS USA (with navigation system)


Component Identification:
