Starter Motor: Service and Repair



AR15.30-P-7100CMG Remove/install starter

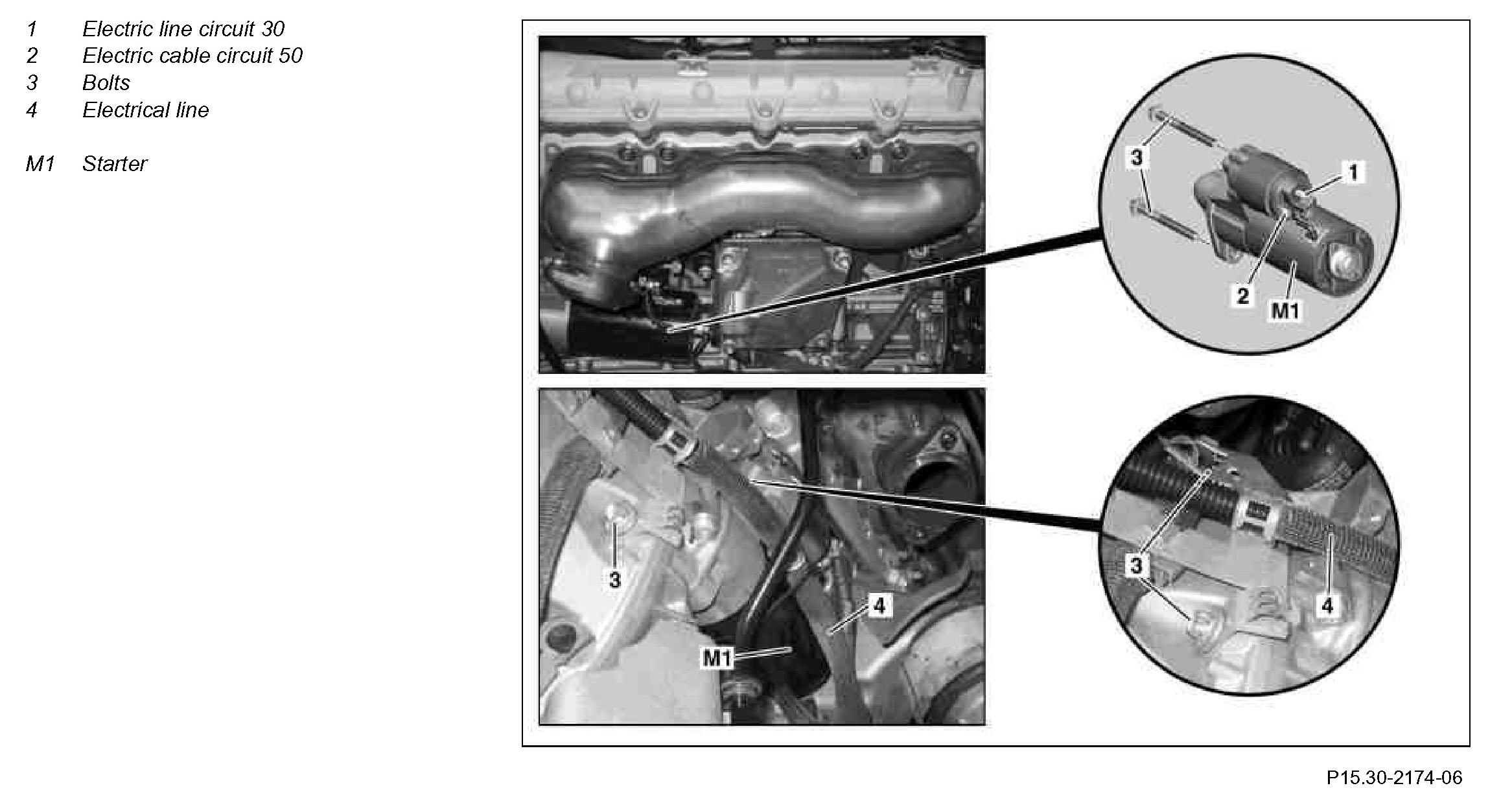

Component Identification:

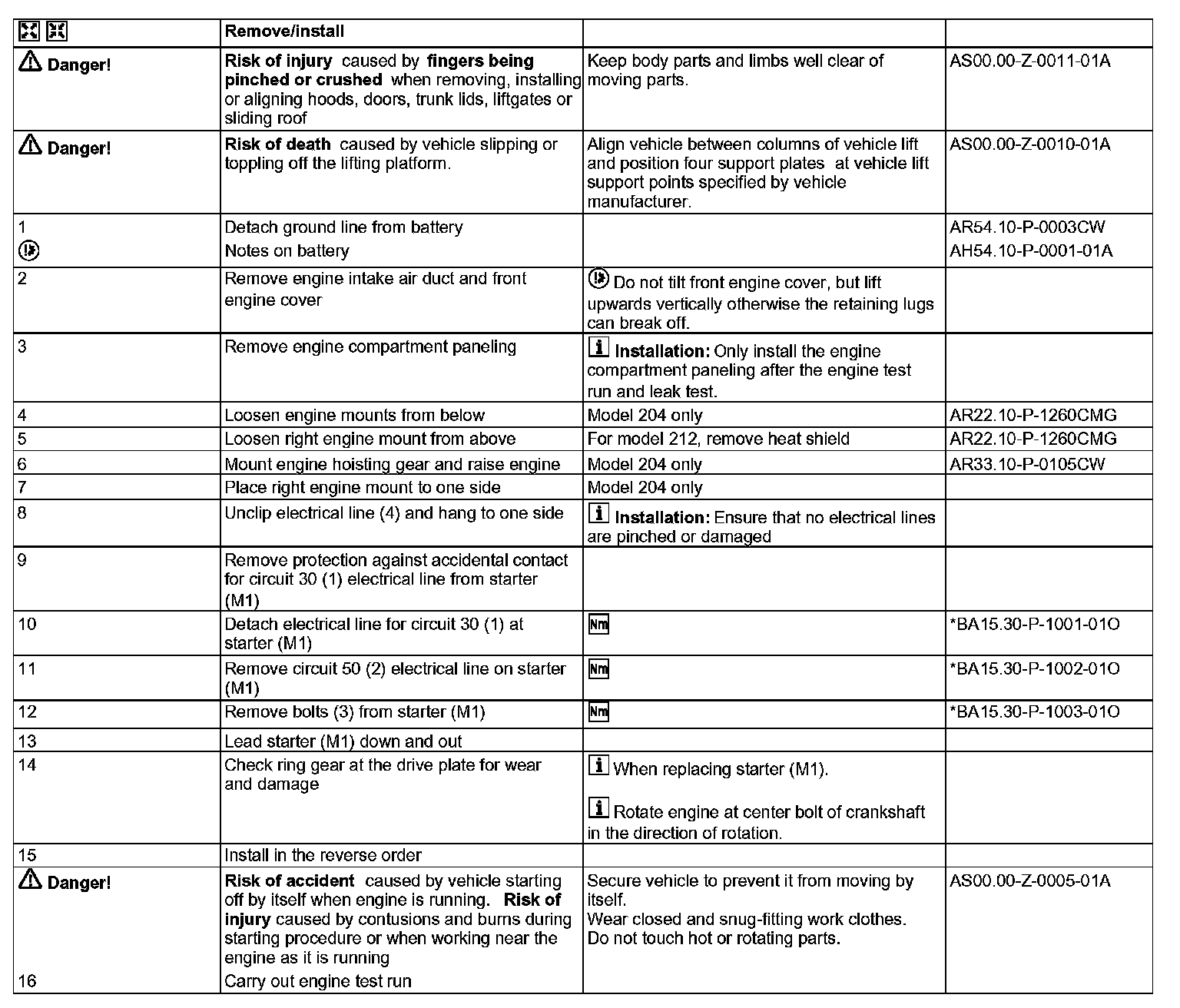

Steps 1-16:

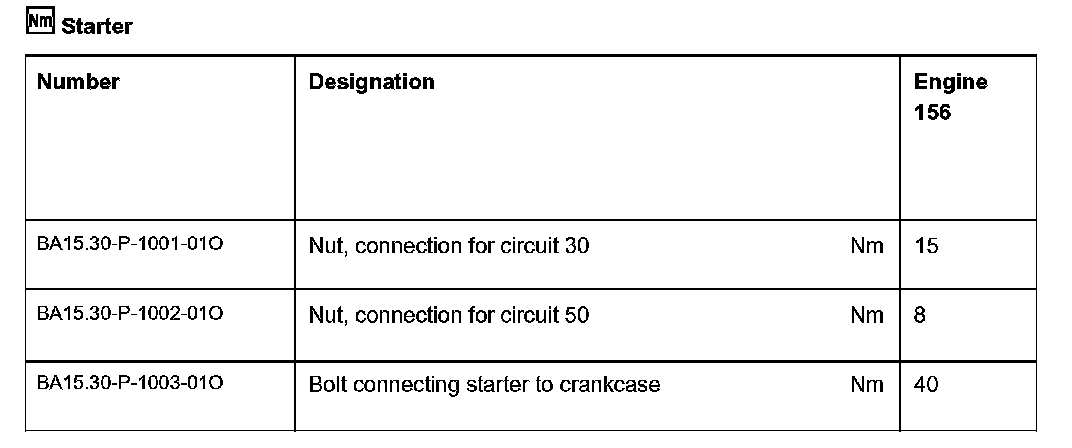

Starter:
