Ignition Coil: Service and Repair
AR15.12-P-2003CMG Remove/install
ignition coils

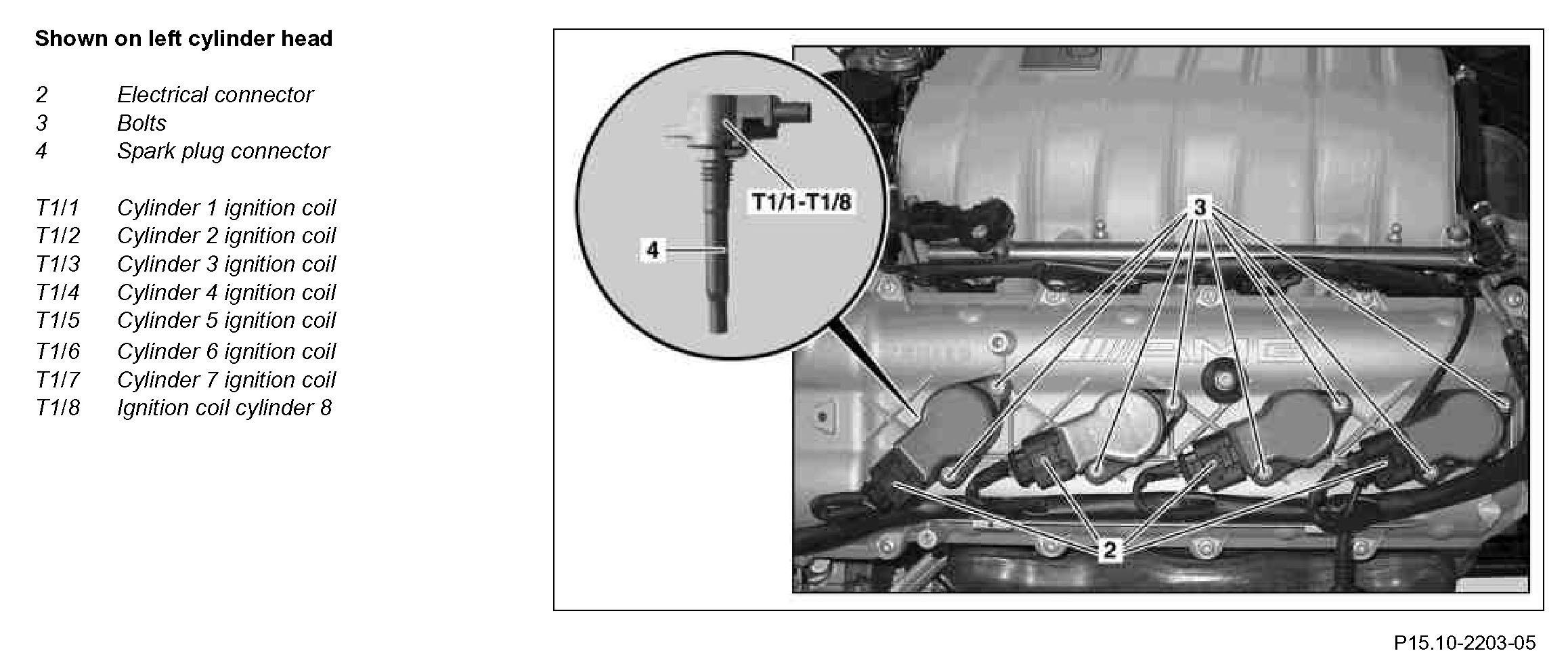

Component Identification:

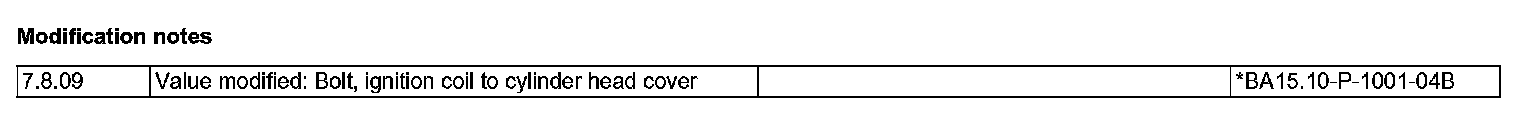

Modification notes:

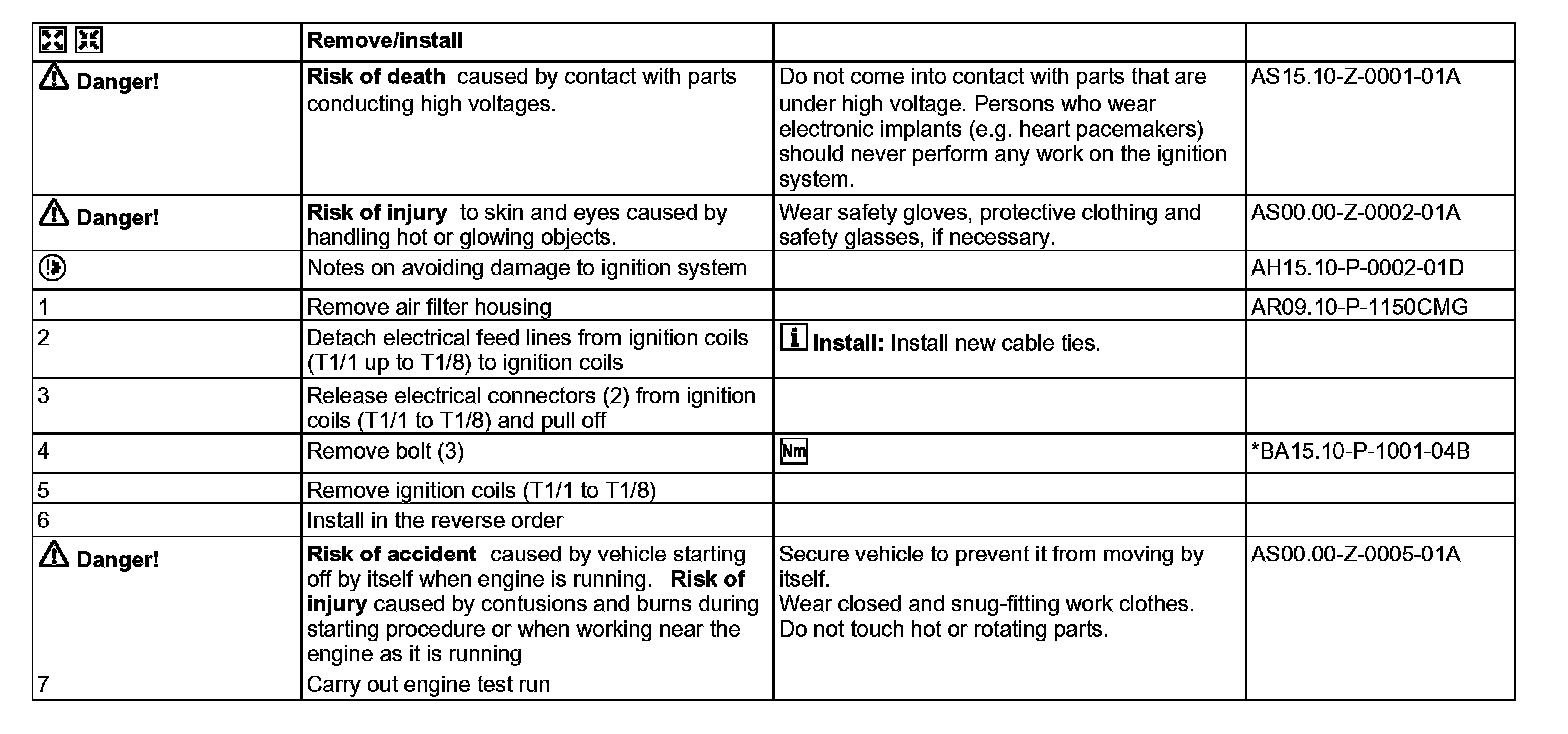

Steps 1-7:

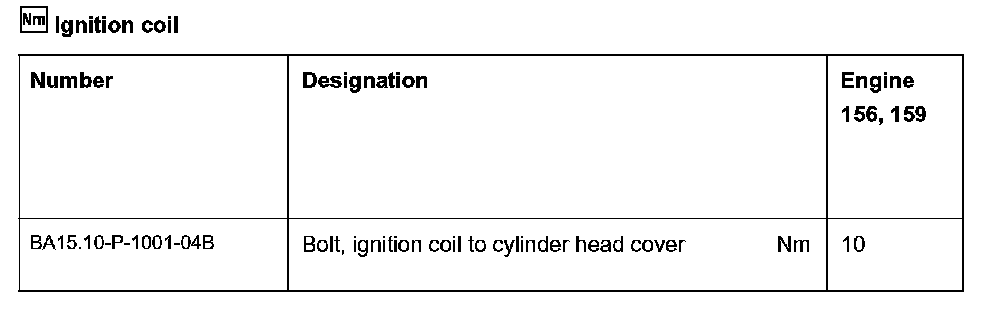

Ignition coil:
