Engine Oil: Service and Repair

AP18.00-P-0101CMG Engine oil and filter change

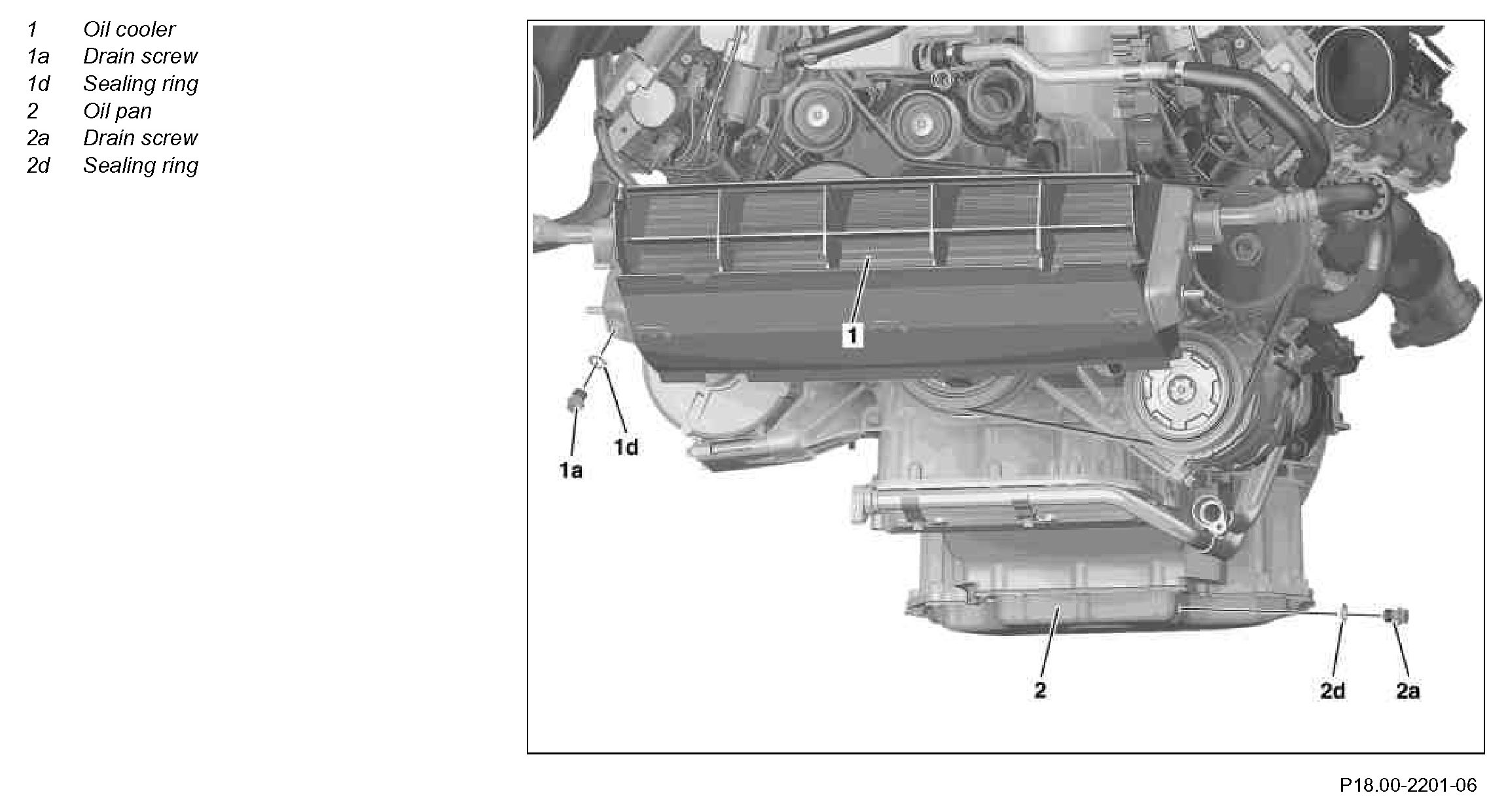

Component Identification:

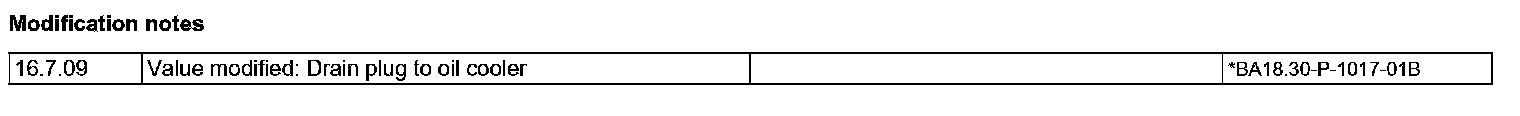

Modification notes:

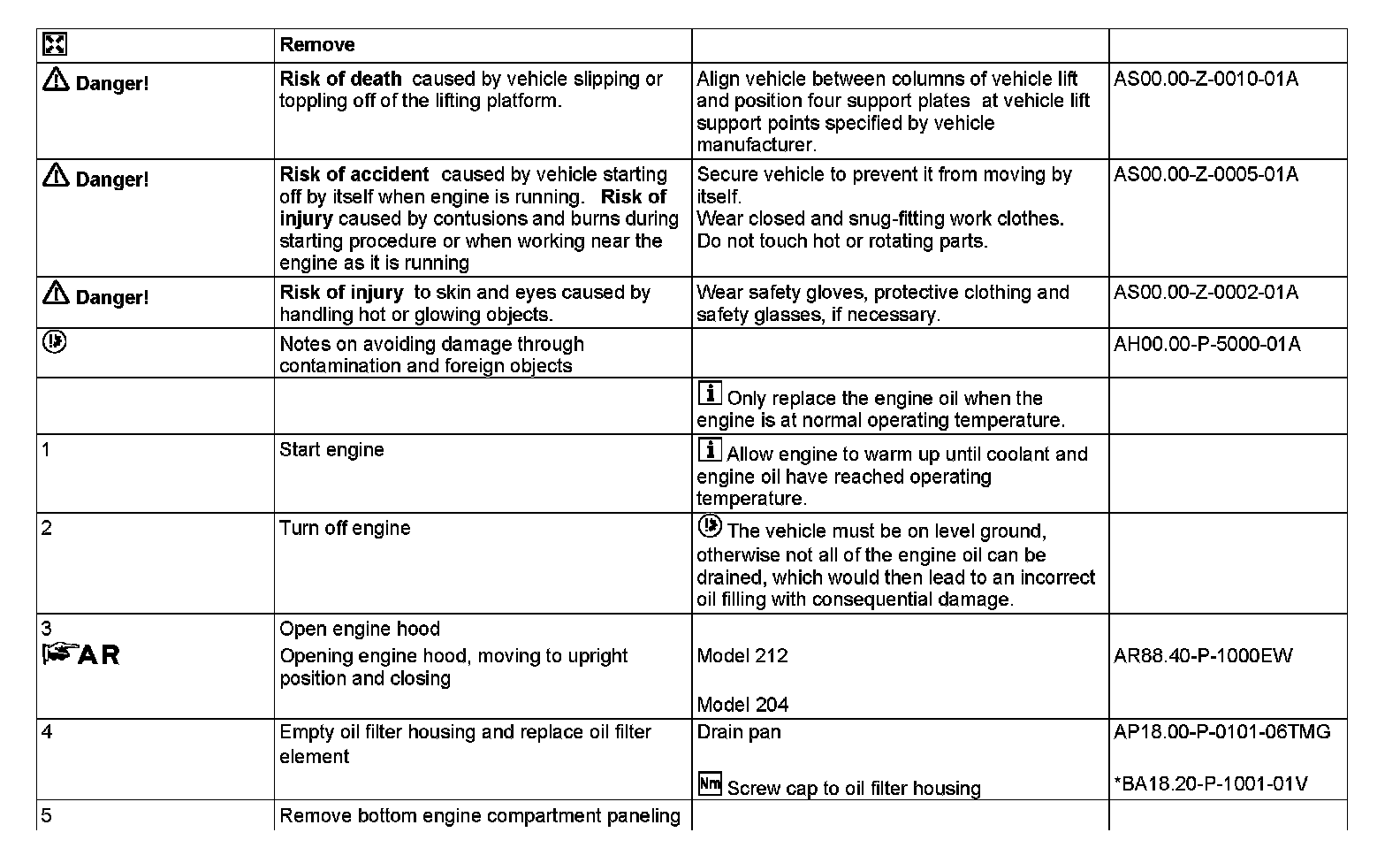

Steps 1-5:

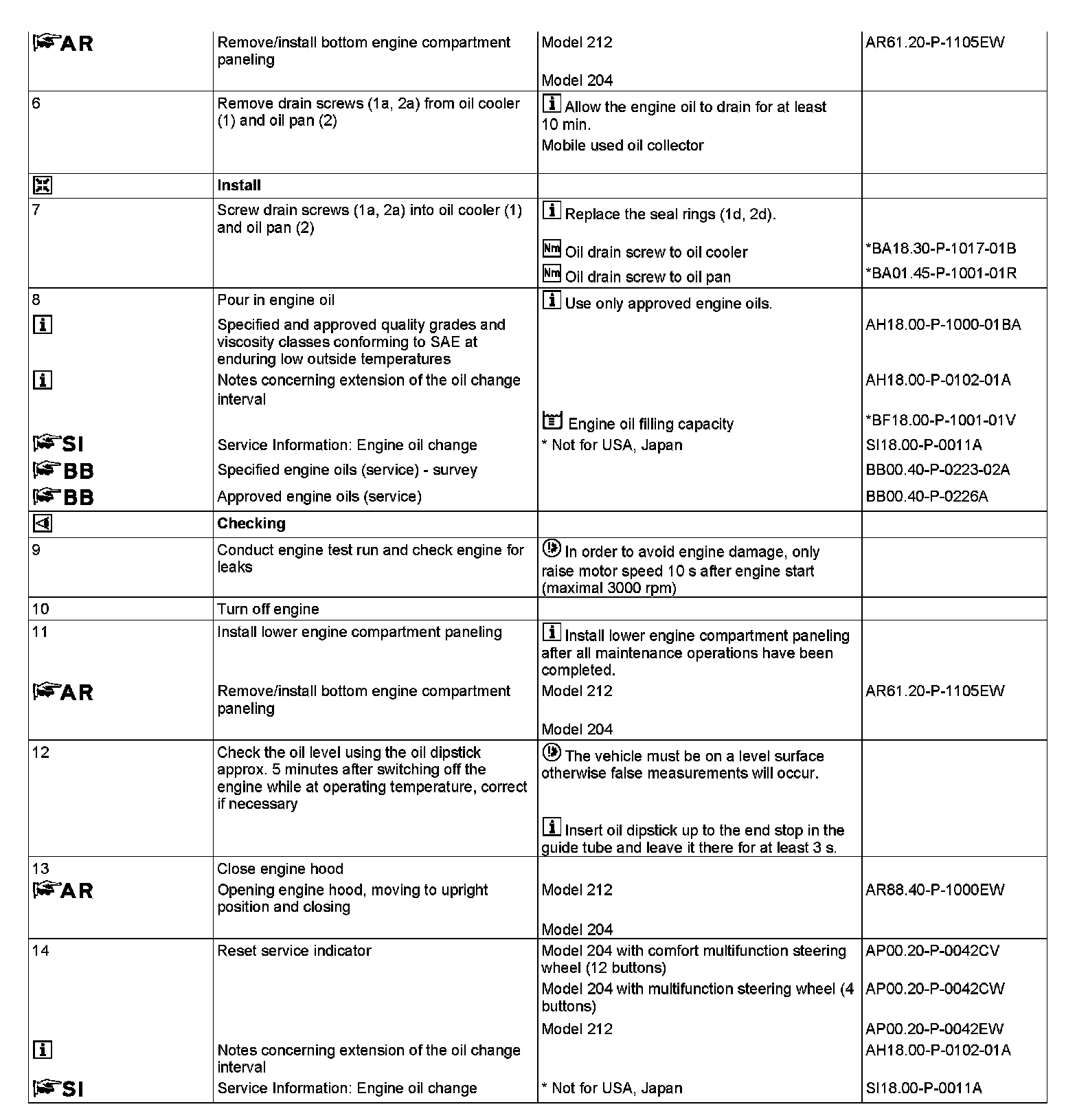

Steps 5 (Continued)-14:

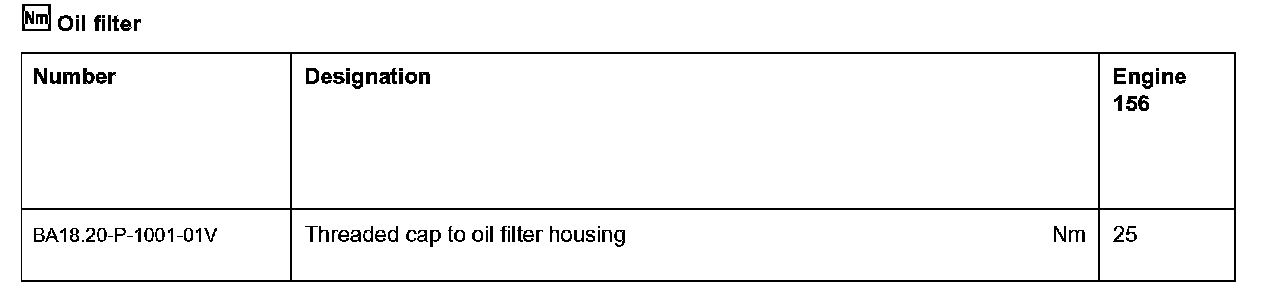

Oil filter:

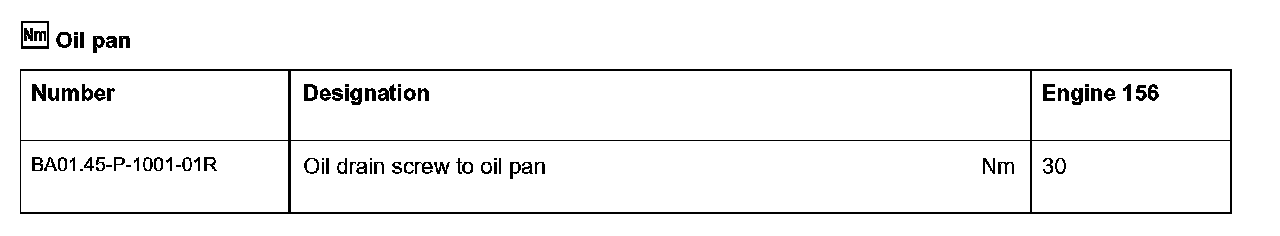

Oil pan:

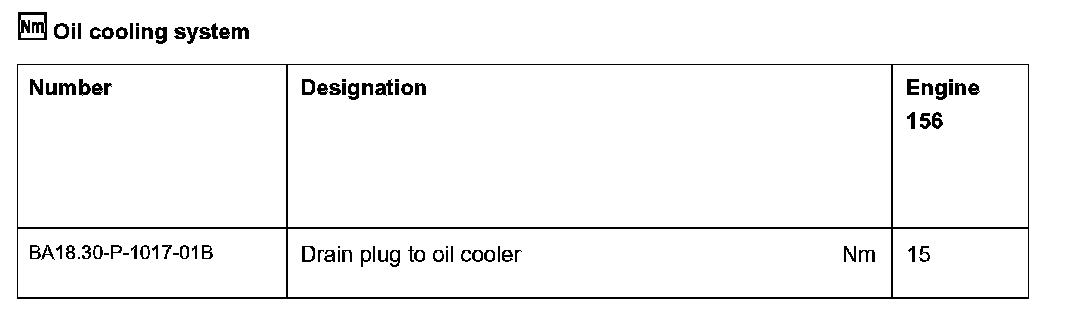

Oil cooling system:

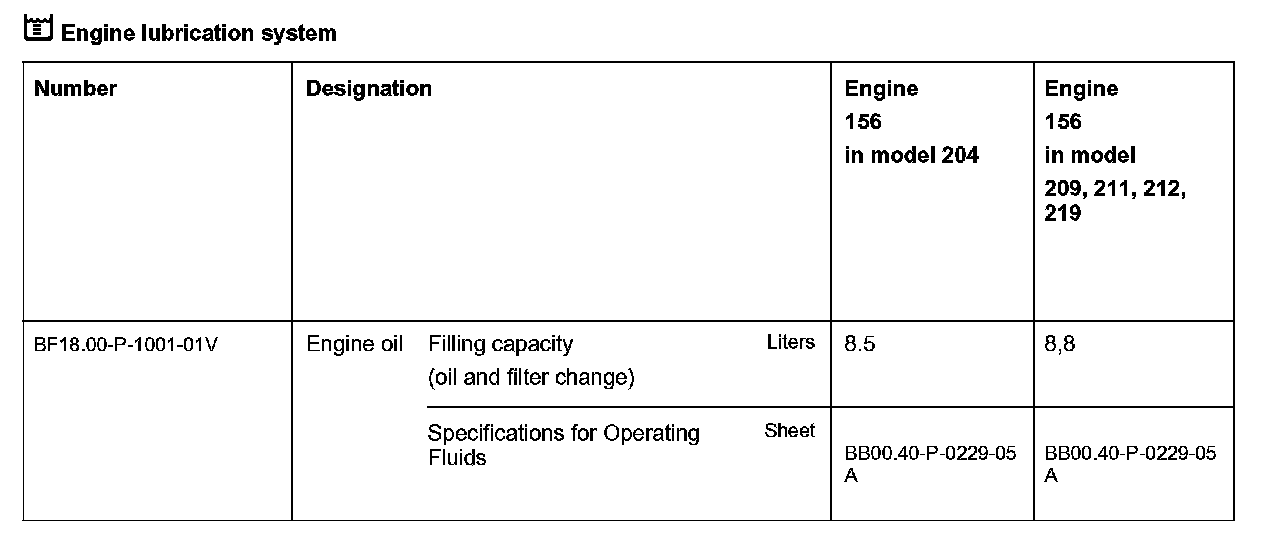

Engine lubrication system:
