AR91.10-P-1915CW Remove/Install Back Shell From Front Seat Backrest
AR91.10-P-1915CW Remove/Install Back Shell From Front Seat Backrest
AR91.10-P-1915CW Remove/Install Back Shell From Front Seat Backrest

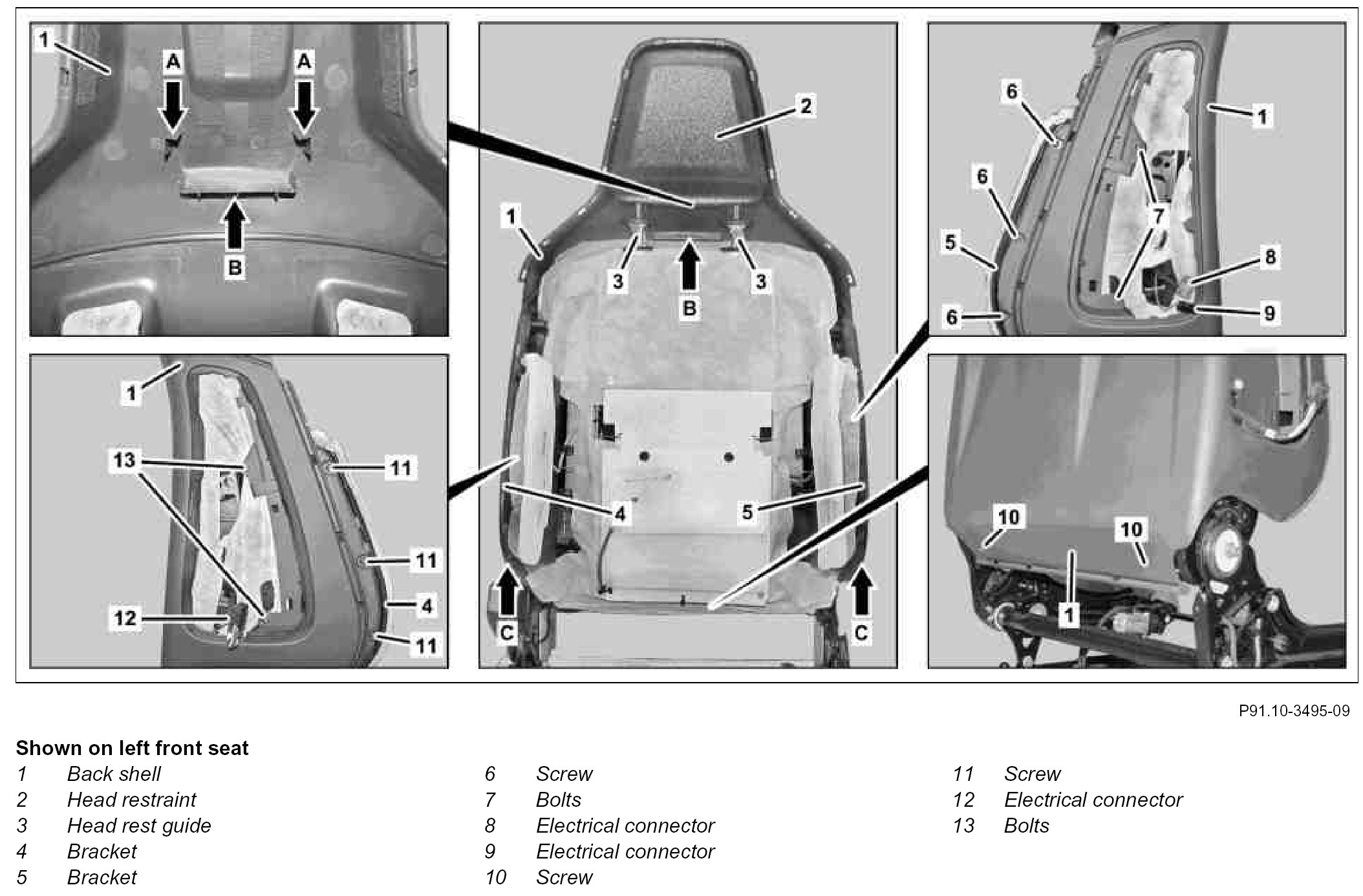

Component Identification:

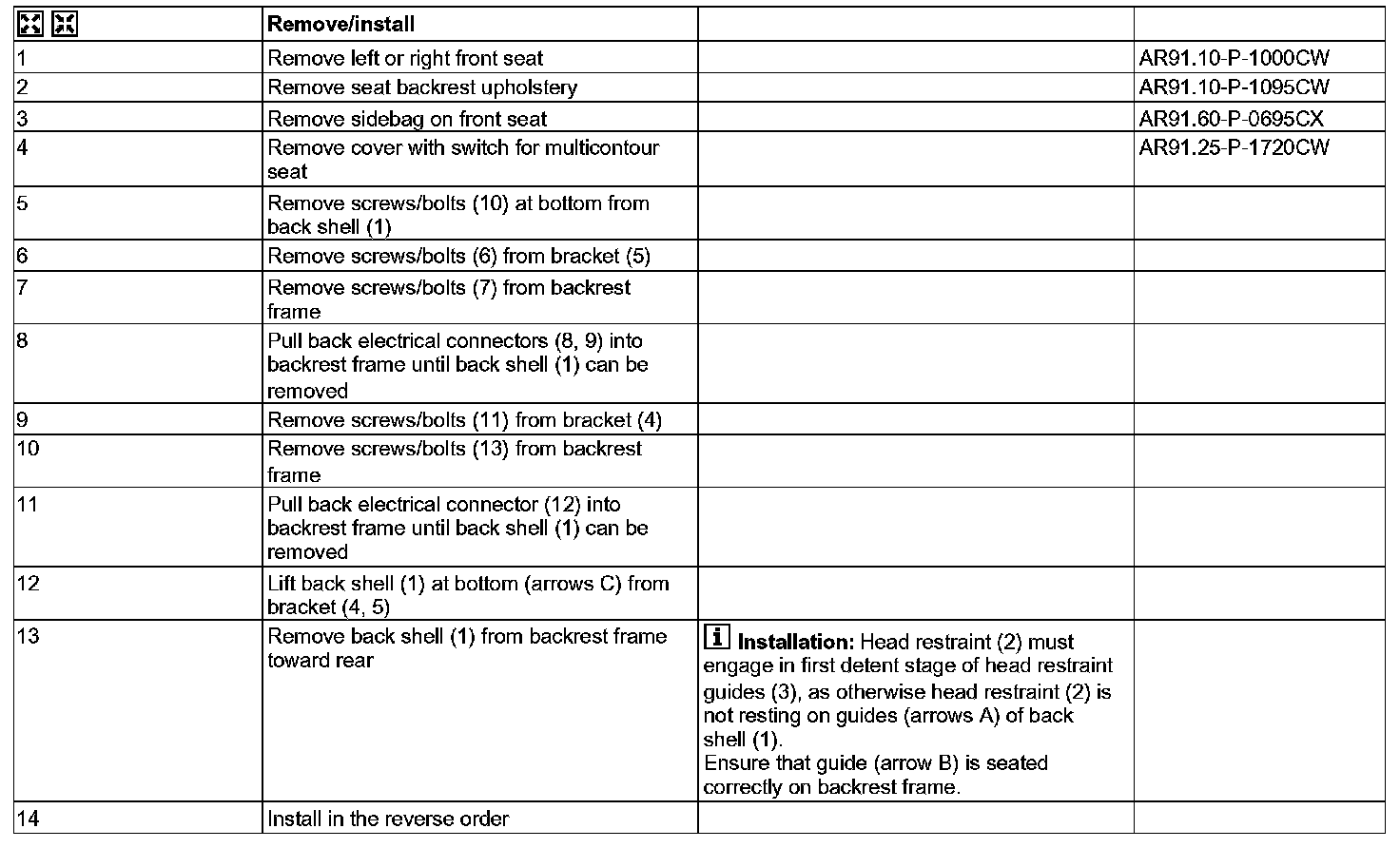

Steps 1 - 14:
