Air Register: Service and Repair



AR83.10-P-4800CW Remove/Install Rear Air Nozzle

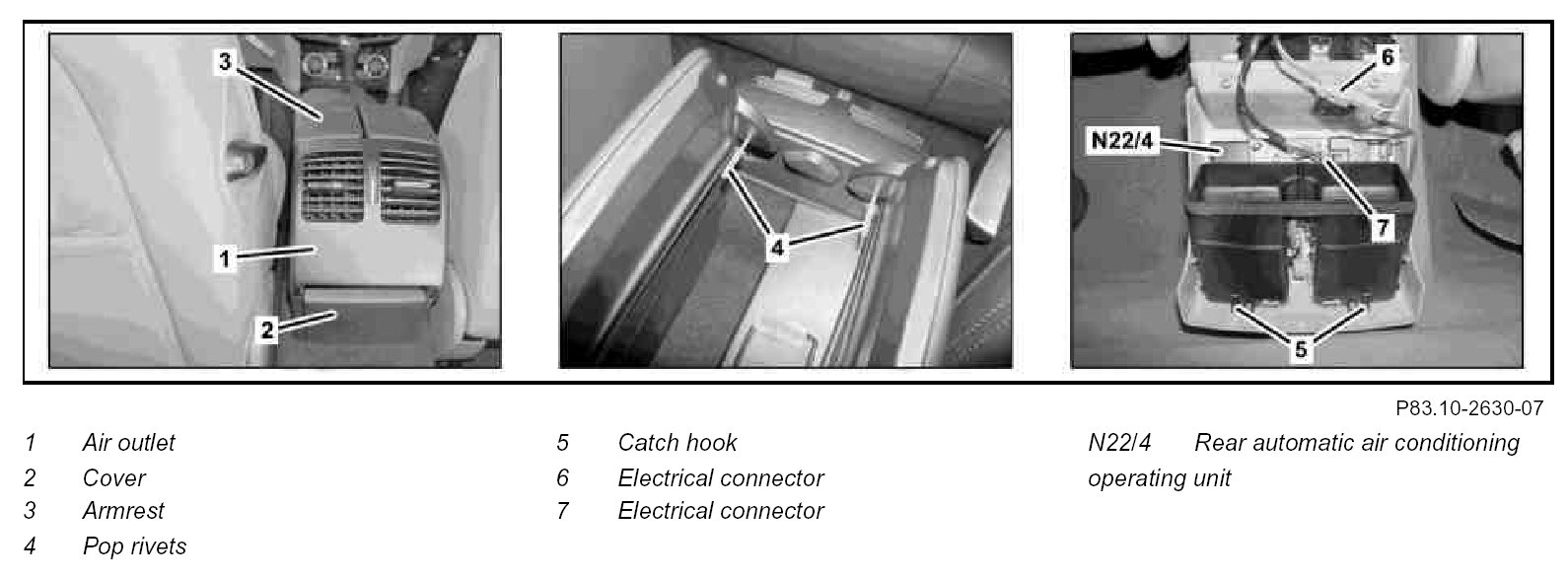

Component Identification:

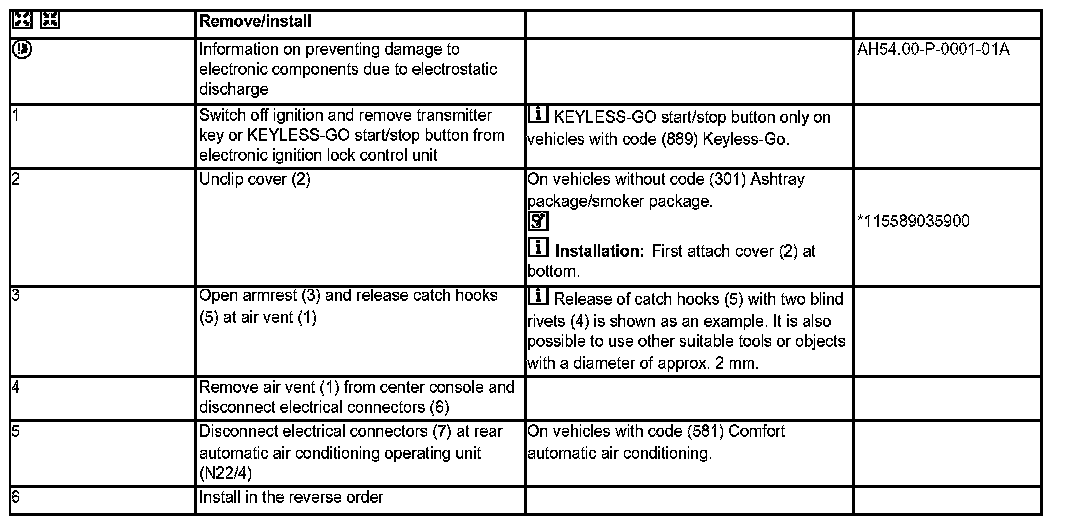

Steps 1 - 6:




Special Tools:
