Mercedes Benz
>>
2012
>>
C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Housing Assembly HVAC
>>
Service and Repair
>>
AR83.30-P-5200CW Remove/Install AC Housing
AR83.30-P-5200CW Remove/Install AC Housing
AR83.30-P-5200CW Remove/Install AC Housing

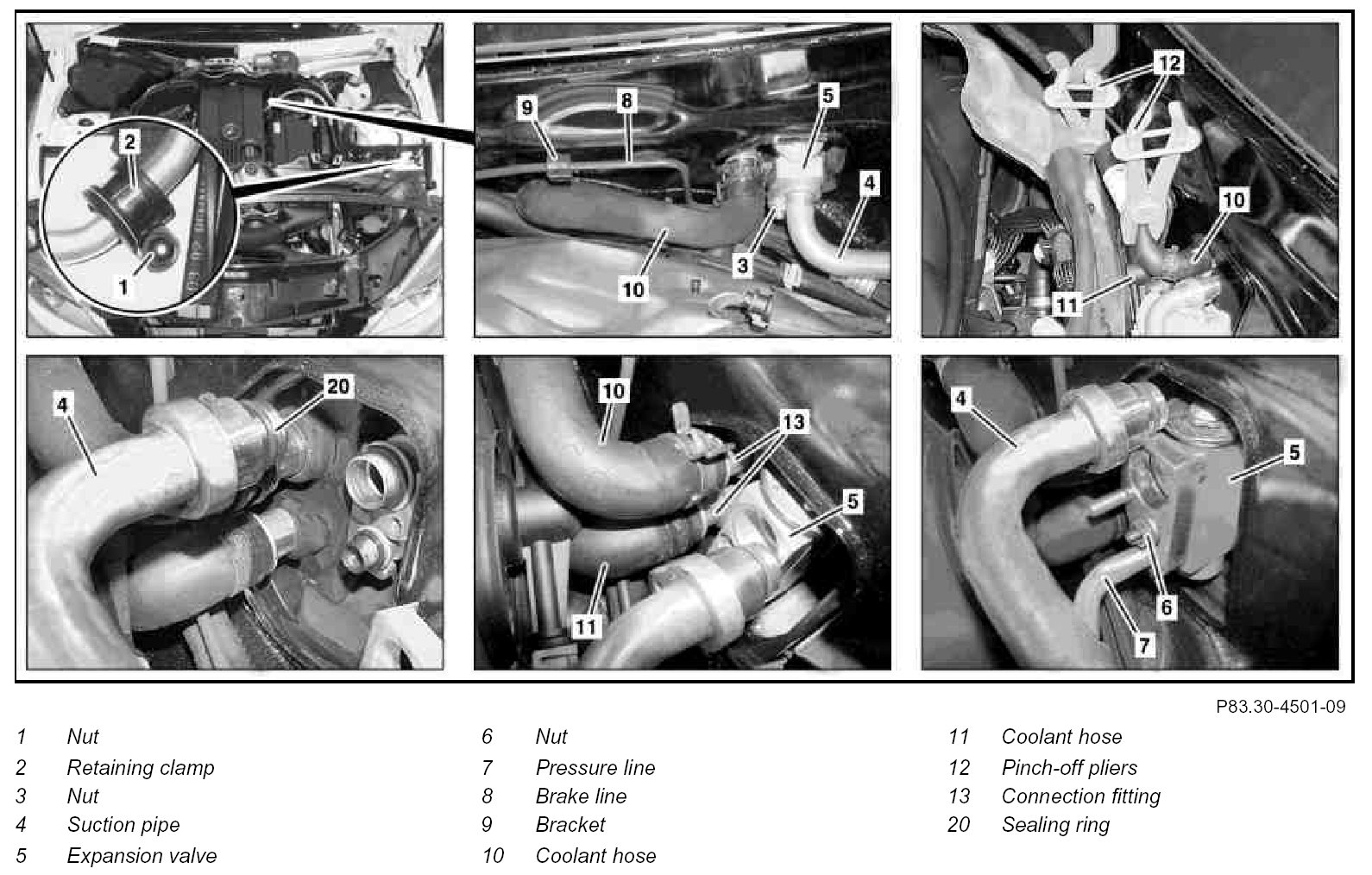

Component Identification:

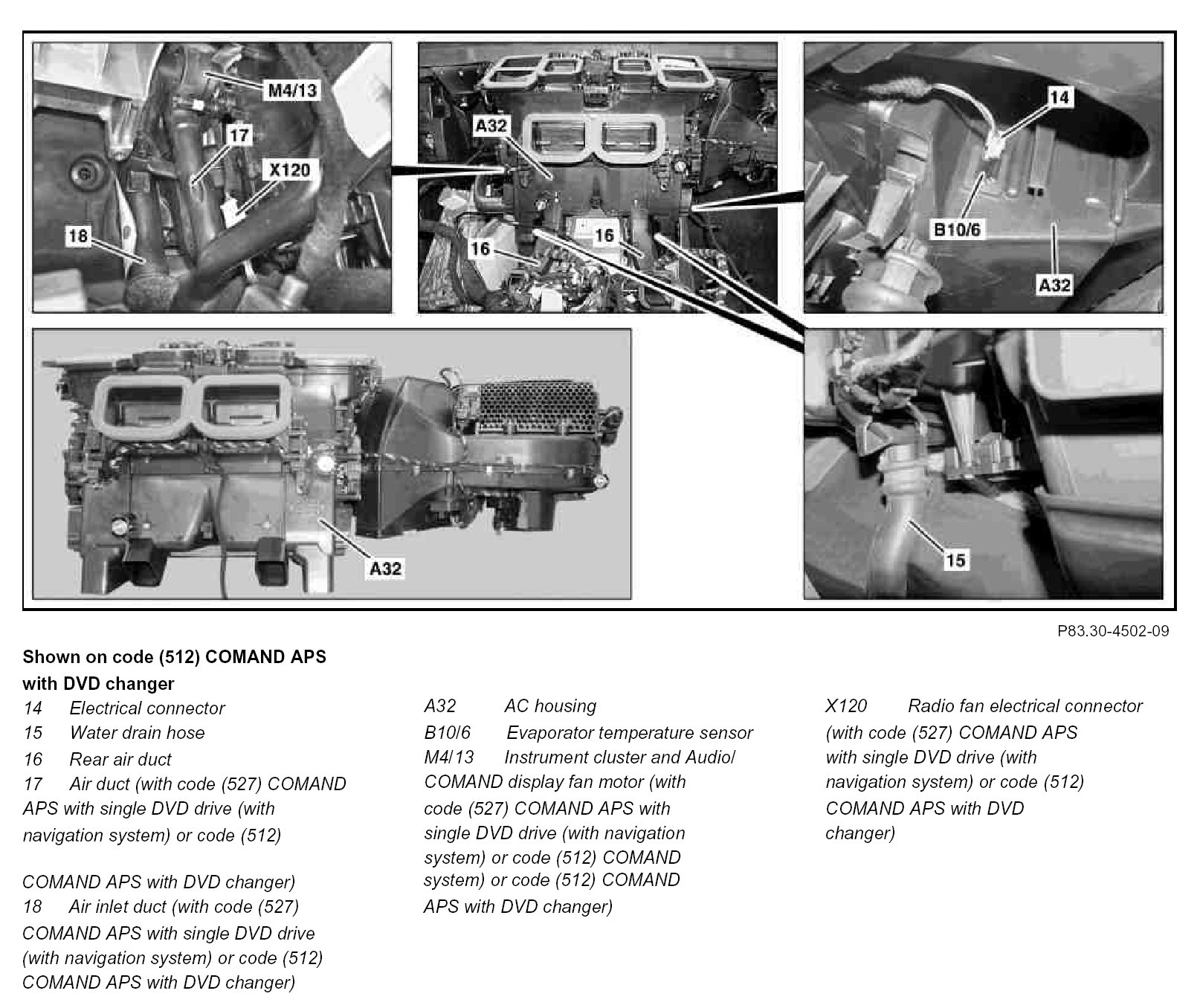

Component Identification:

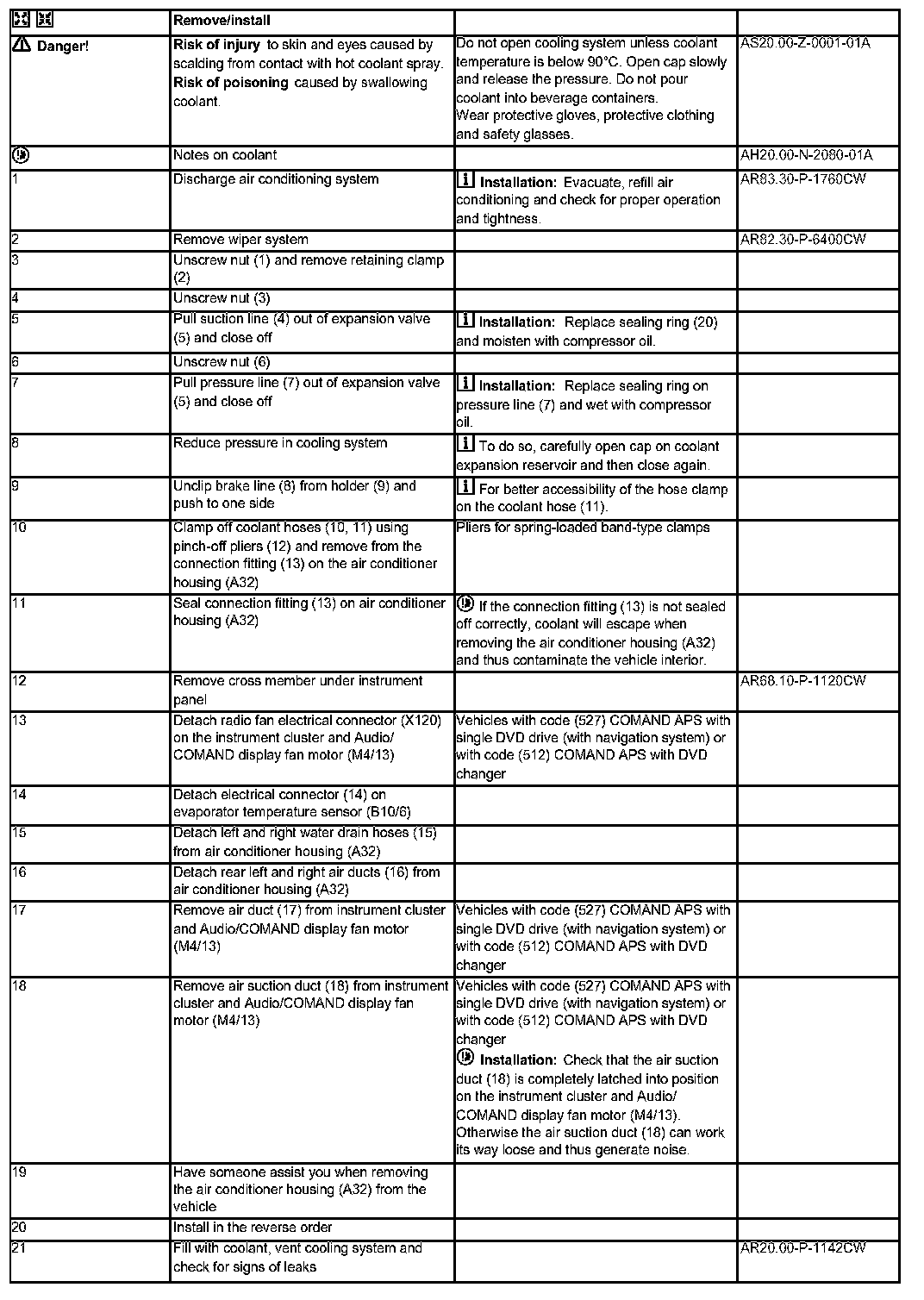

Steps 1 - 21:
