Function Diagrams

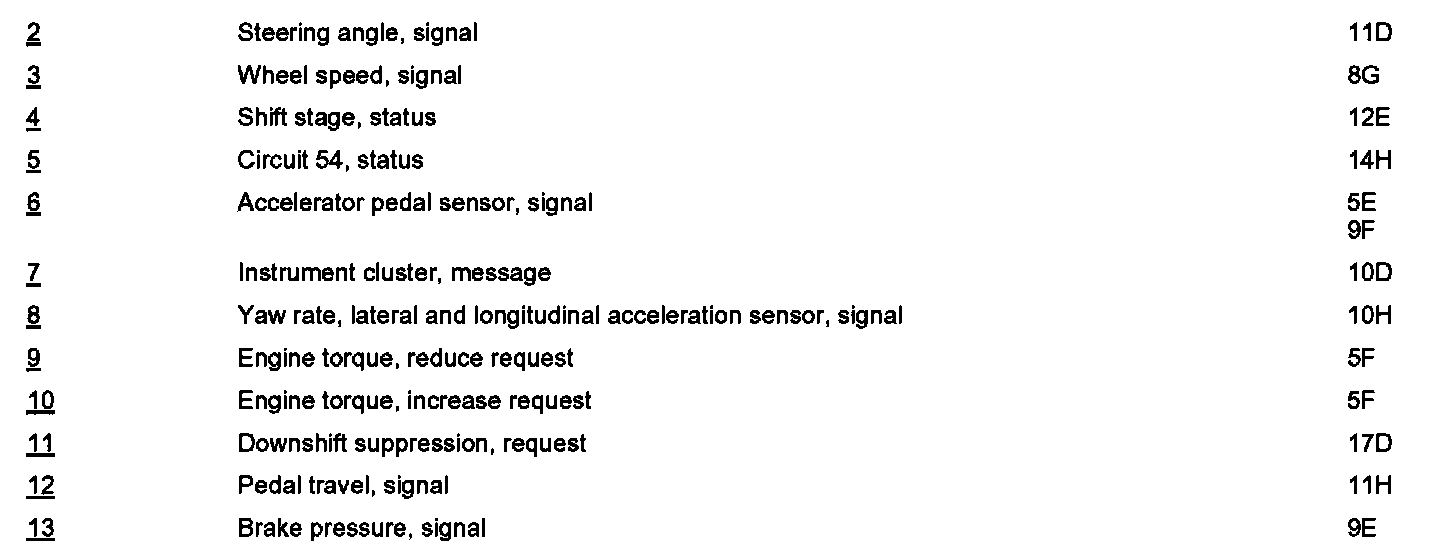

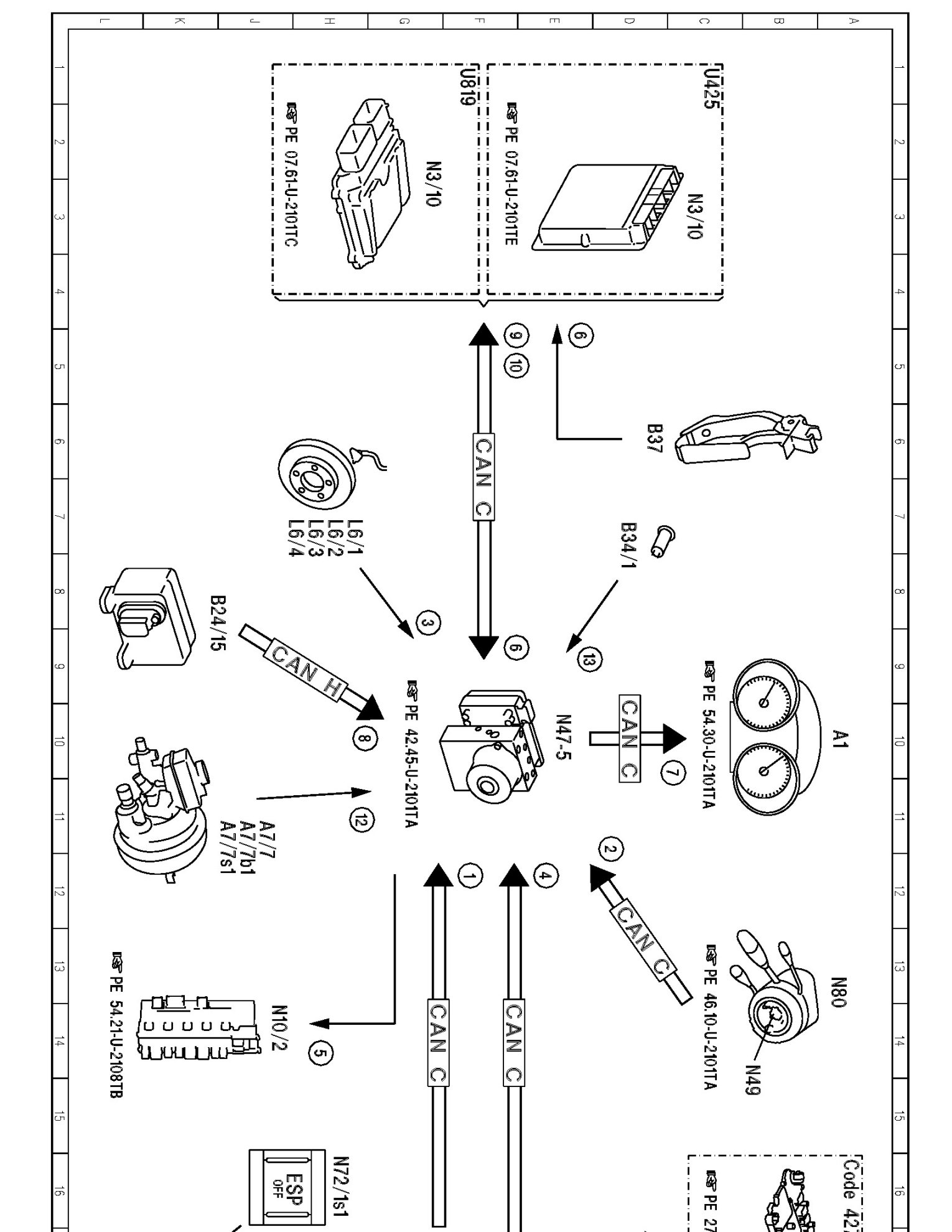

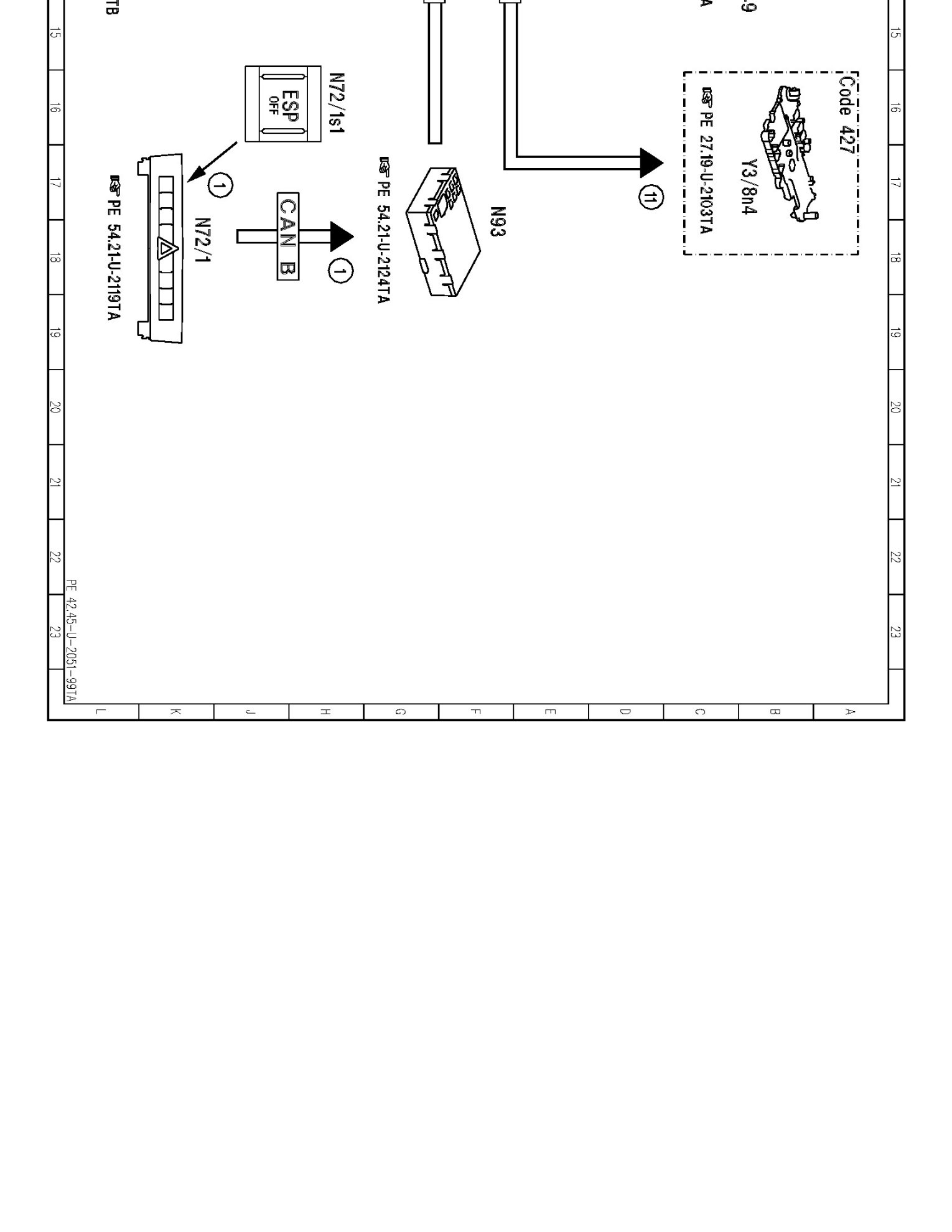

PE42.45-U-2051TA Electrical Function Schematic For Electronic Stability Program (ESP)



















Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
