AR67.20-P-2100RBS Remove/Install Detachable Parts When Replacing Rear Window



AR67.20-P-2100RBS Remove/Install Detachable Parts When Replacing Rear Window
- with CODE (P99) Special model "AMG Black Series"

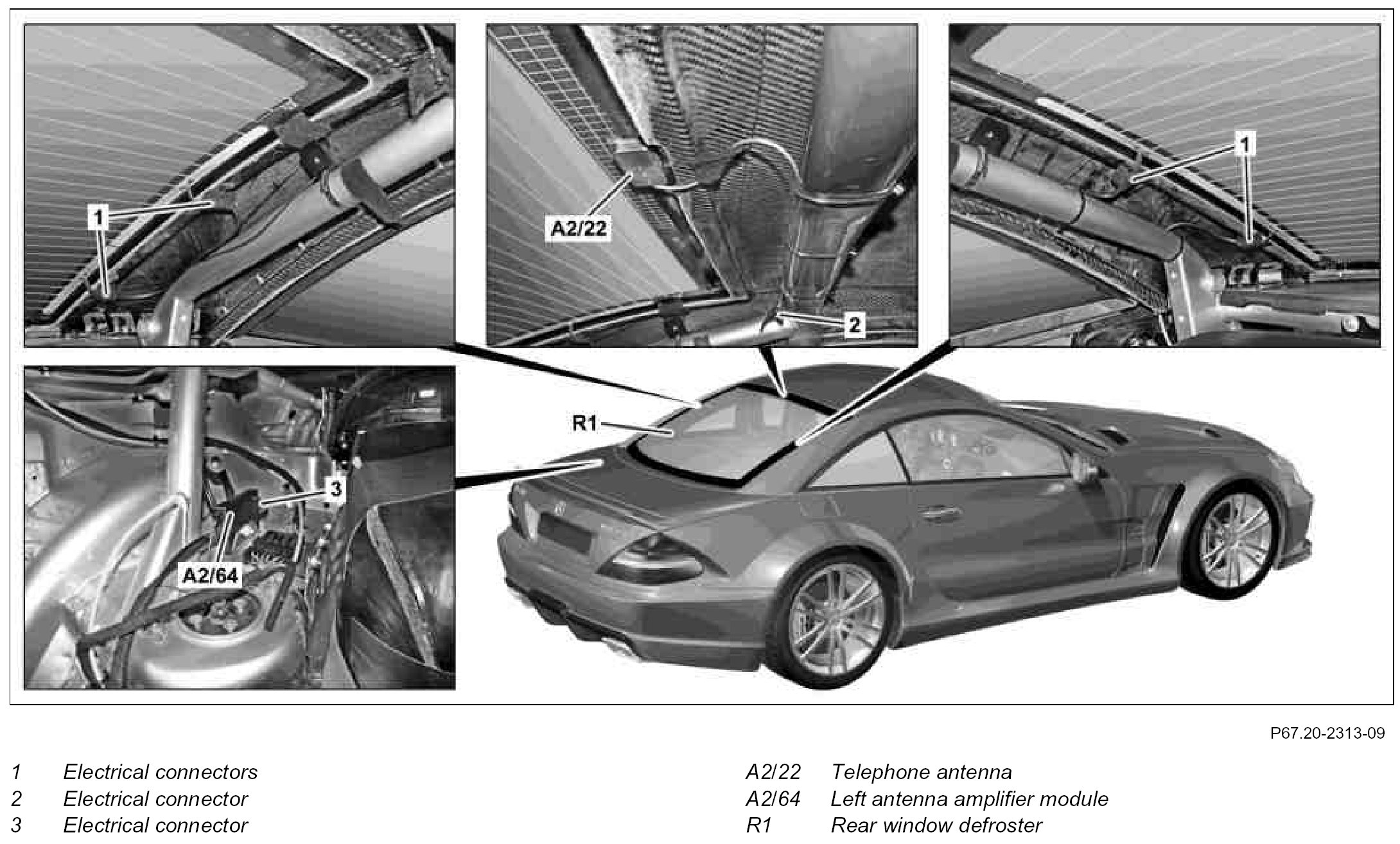

Component Identification:

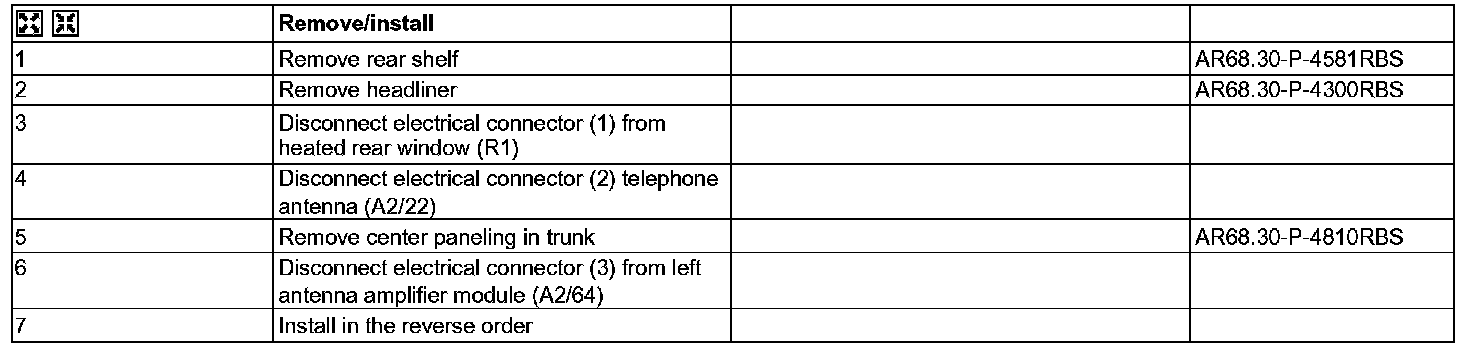

Steps 1 - 7:
