Front Fender Liner: Service and Repair



AR88.10-P-1300RBS Remove/Install Fender Liner In Front Fender
- with CODE (P99) Special model "AMG Black Series"

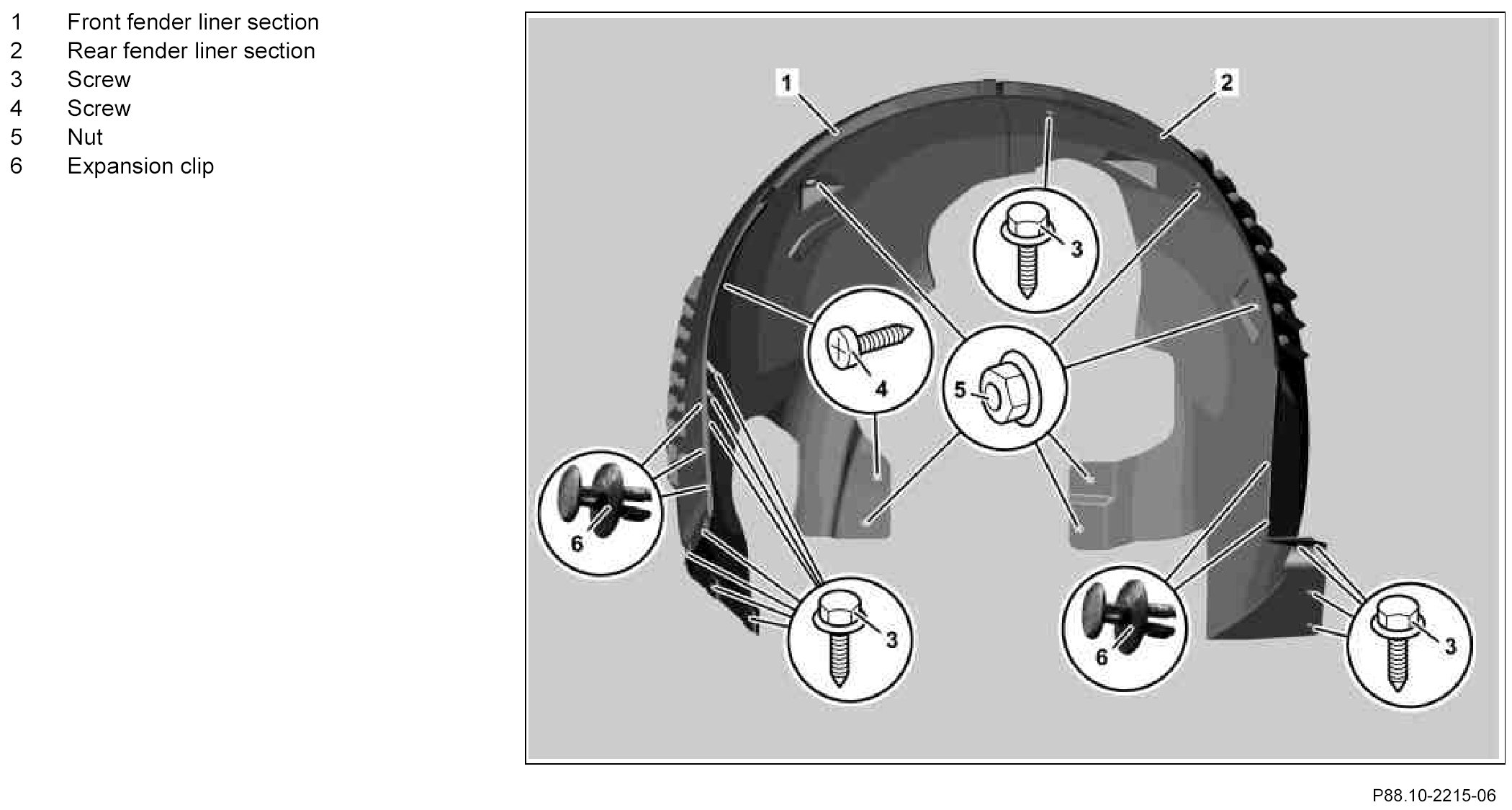

Component Identification:

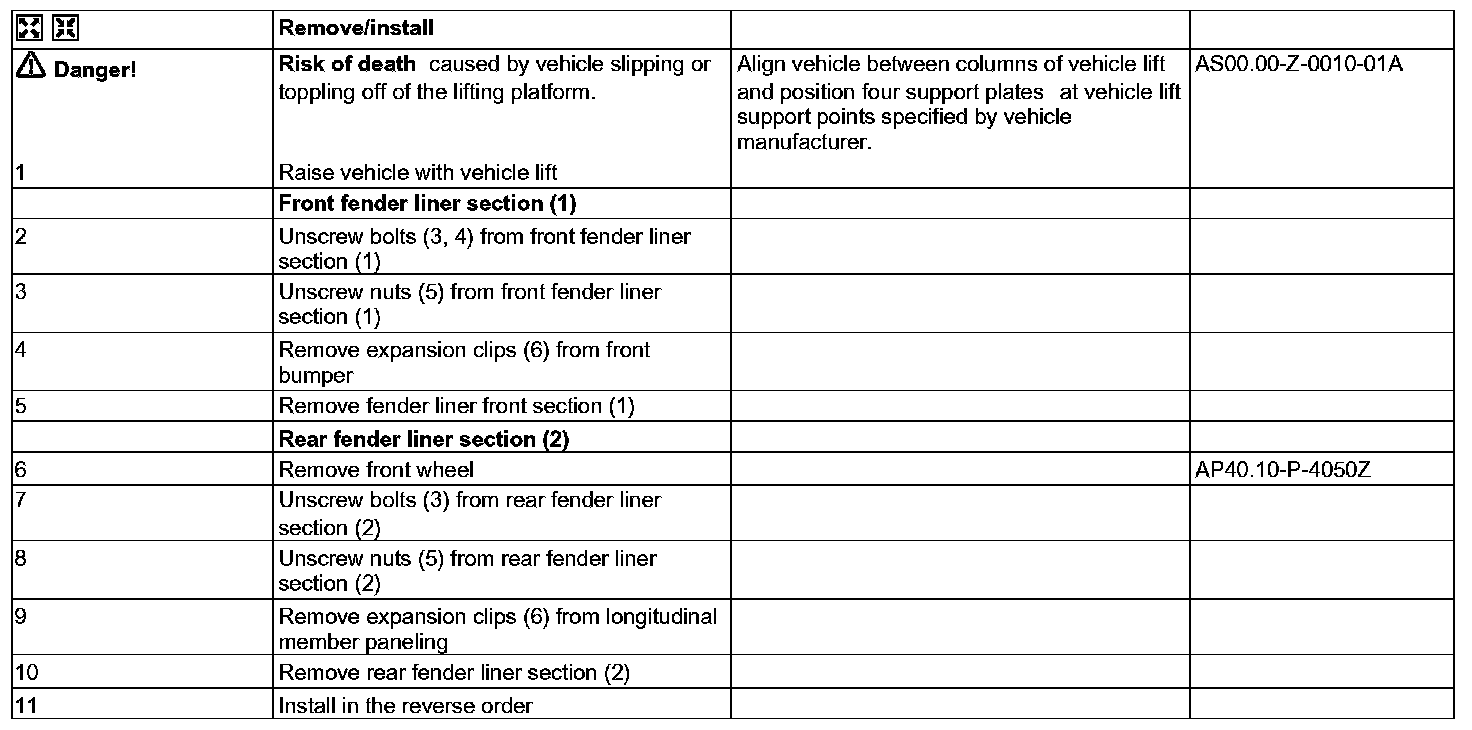

Steps 1 - 11:
