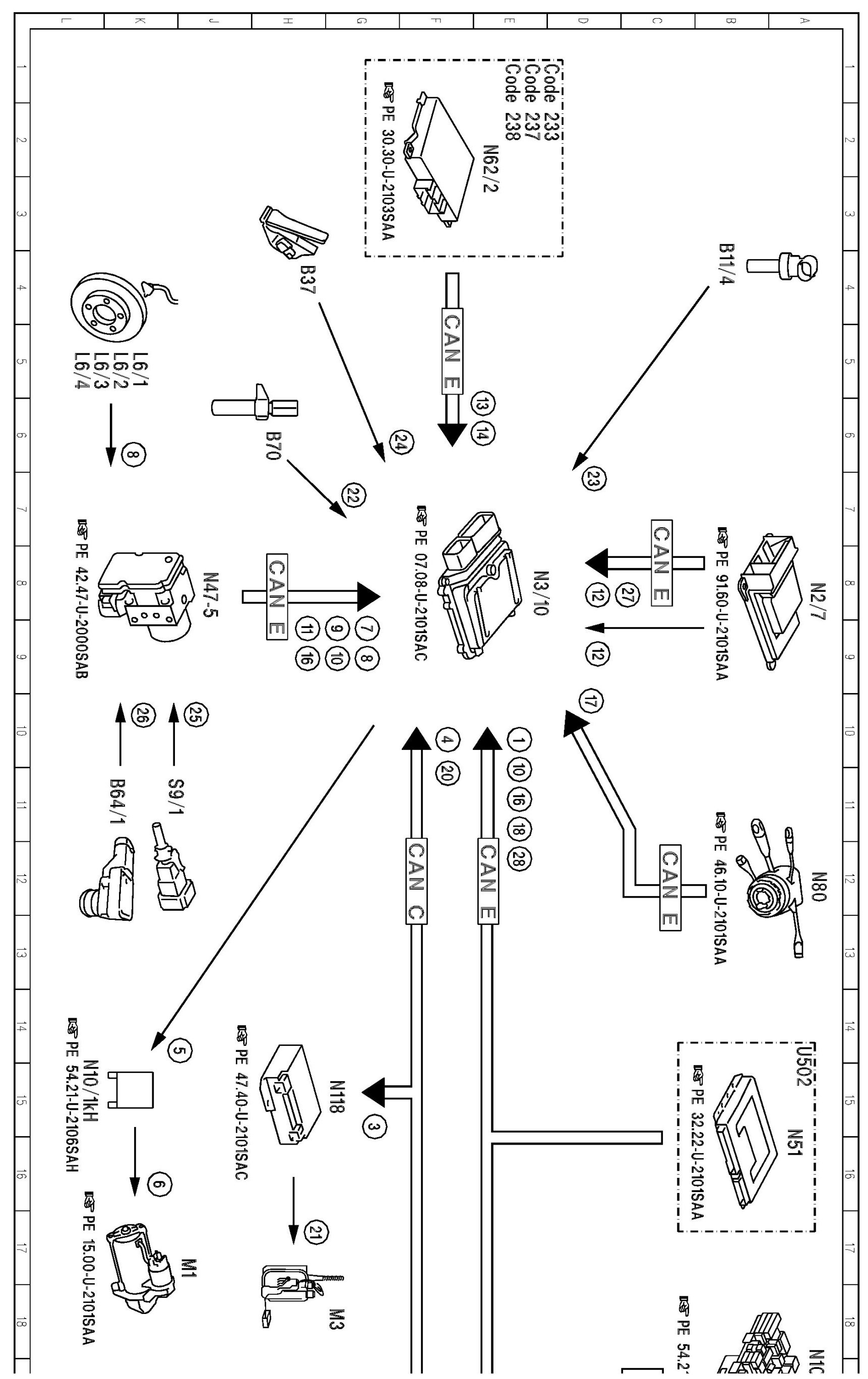

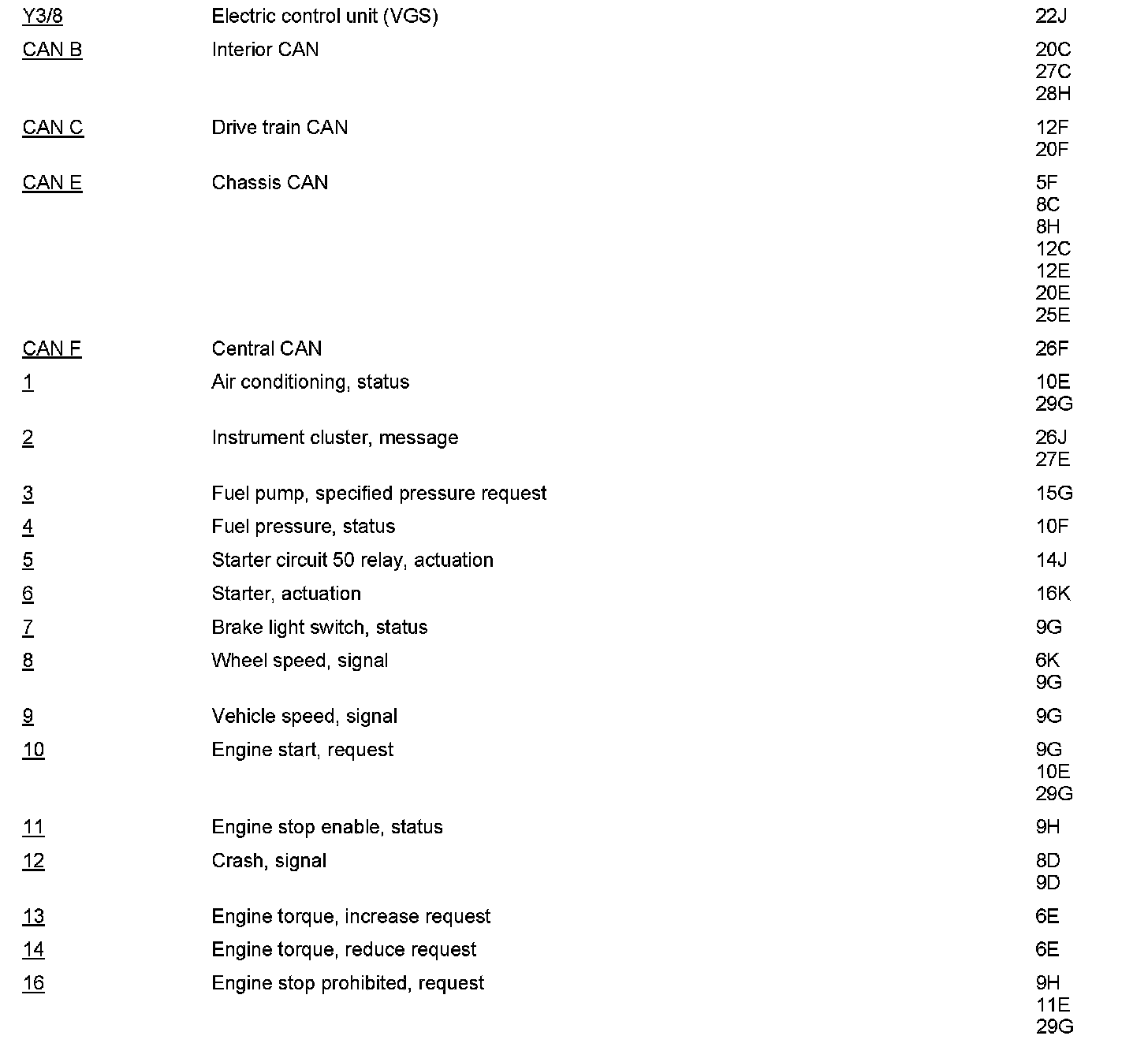

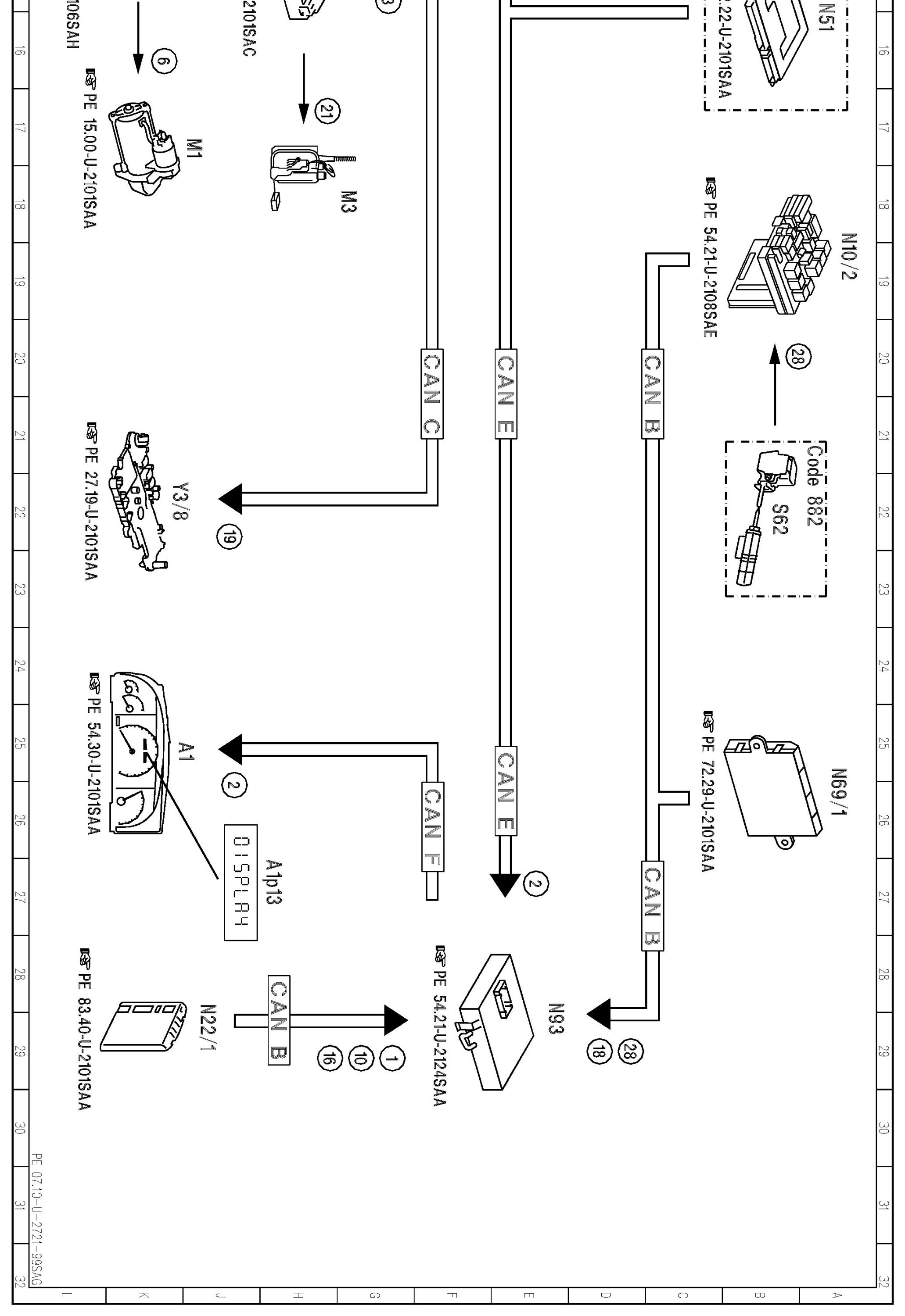

PE07.10-U-2721SAG Electrical Function Schematic For Engine Start/Stop

PE07.10-U-2721SAG Electrical Function Schematic For Engine Start/Stop

ENGINE 157 in MODEL 221

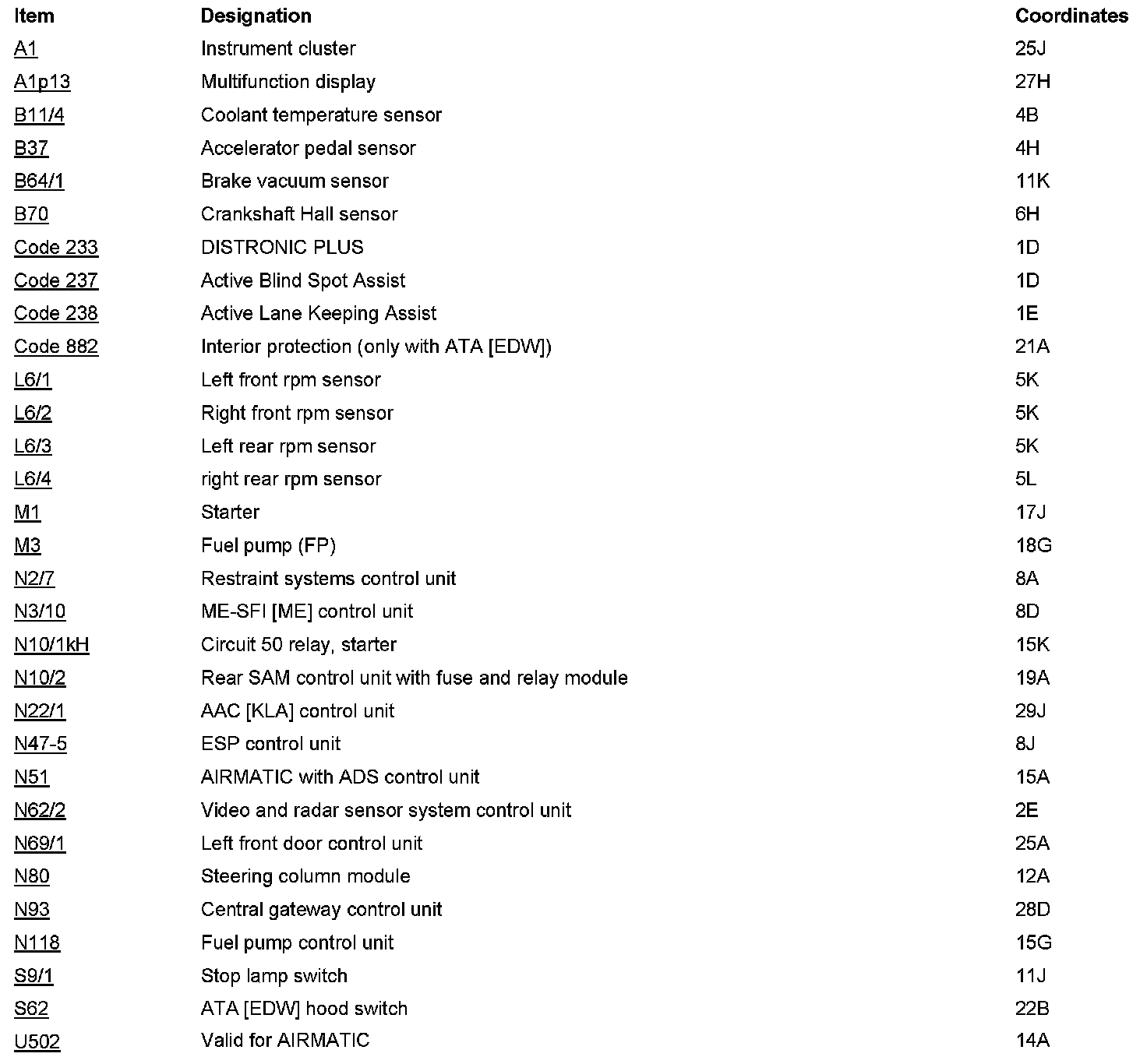

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
