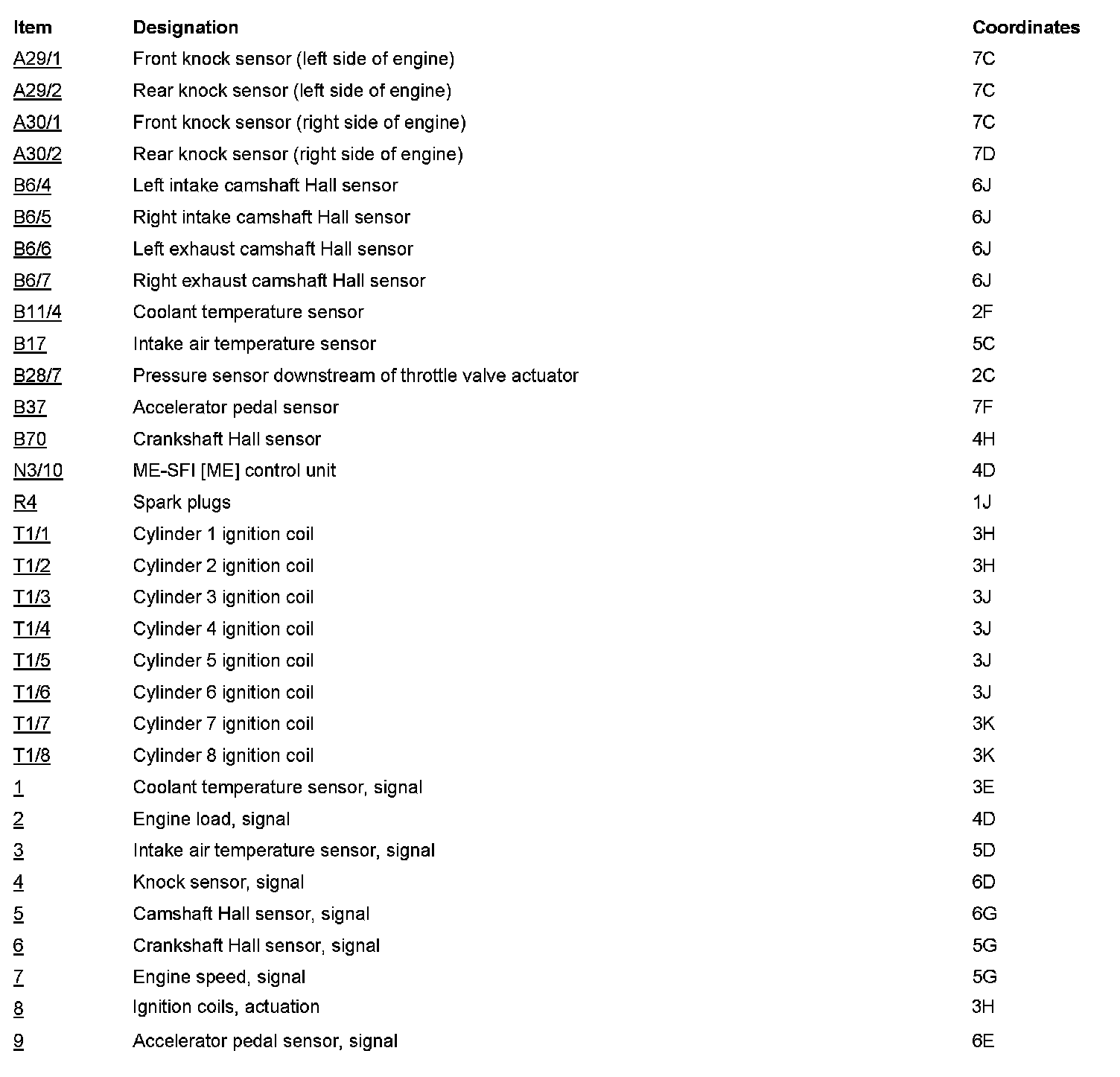

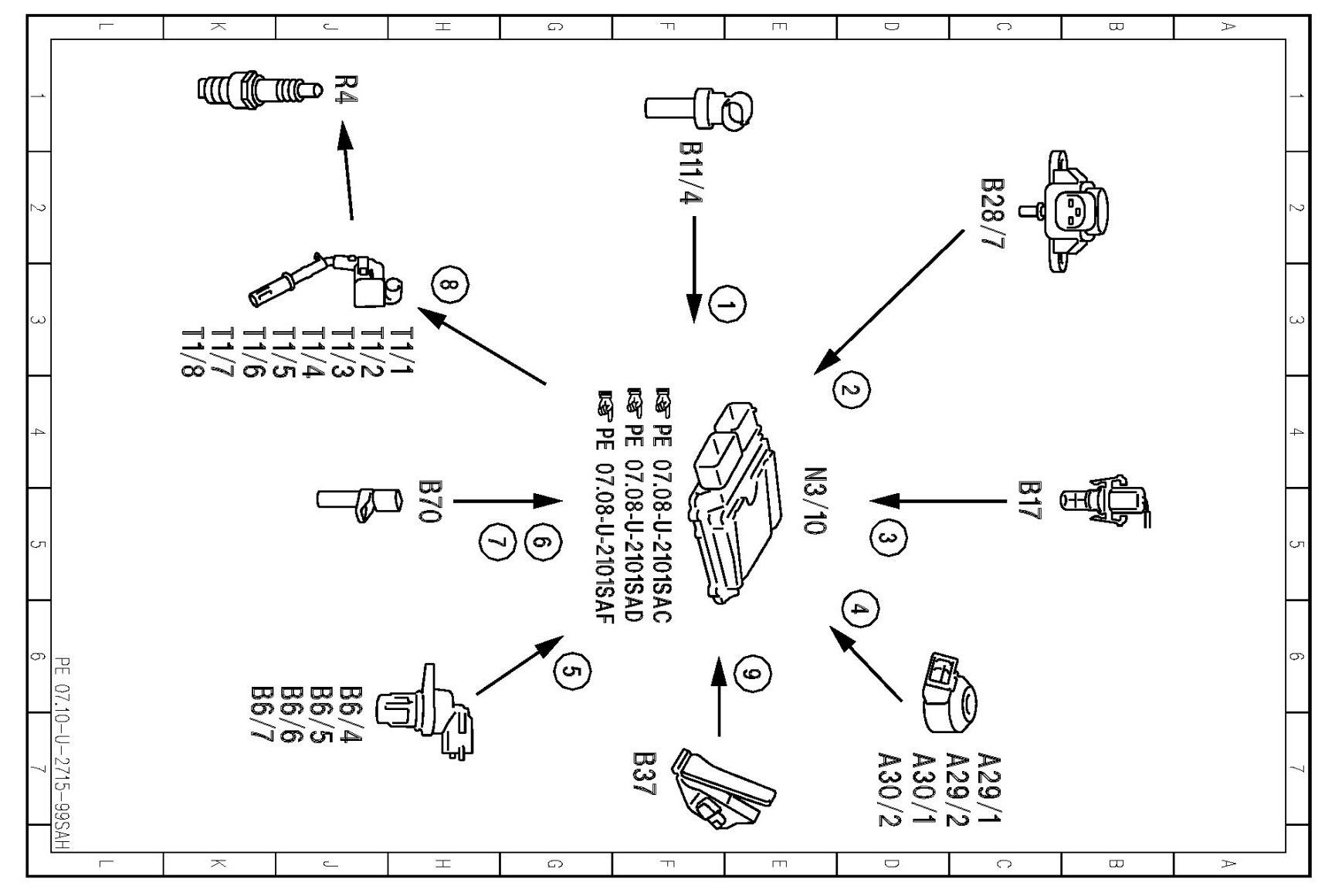

PE07.10-U-2715SAH Electrical Function Schematic For Knock Control

PE07.10-U-2715SAH Electrical Function Schematic For Knock Control

ENGINE 157 in MODEL 221



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
