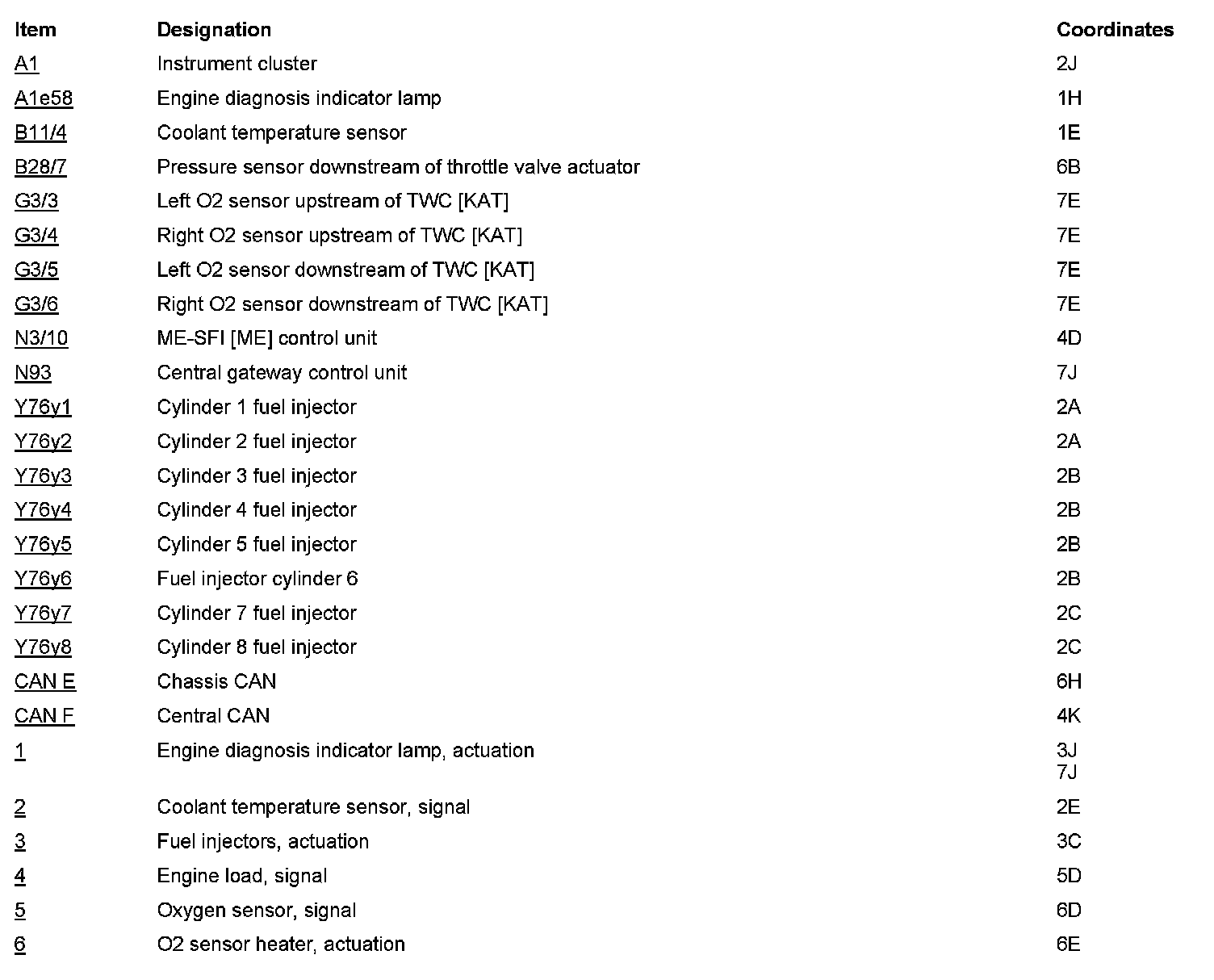

PE07.10-U-2710SAH Electrical Function Schematic For Lambda Control

PE07.10-U-2710SAH Electrical Function Schematic For Lambda Control

ENGINE 157 in MODEL 221































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
