Curiosii for ever!: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2011 >> S 600 (221.176) V12-5.5L Turbo (275.953) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Piston >> Service and Repair

Piston: Service and Repair

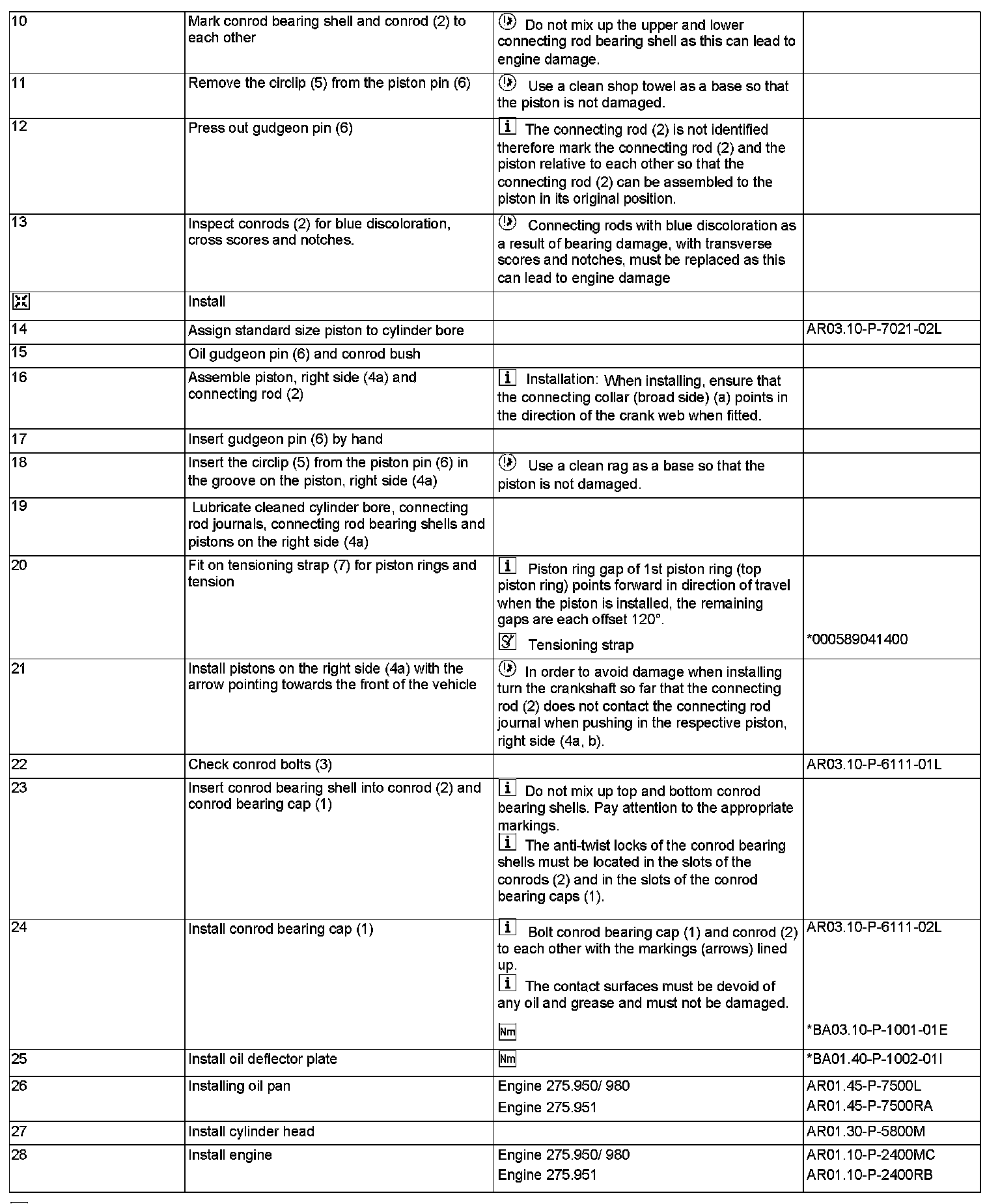

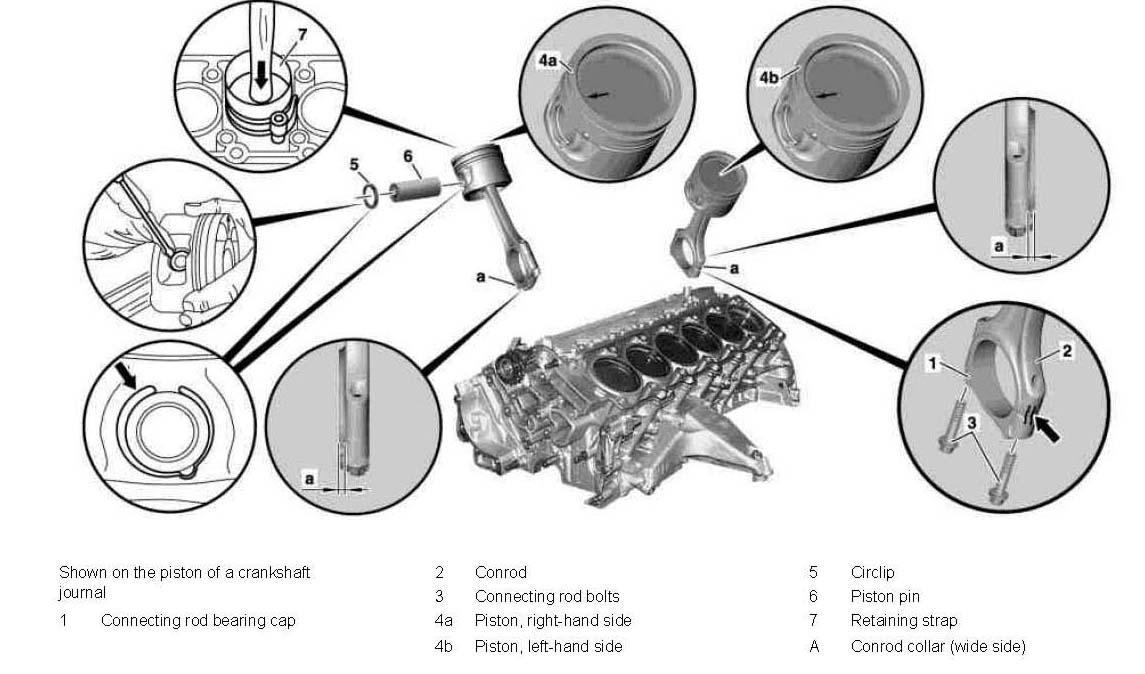

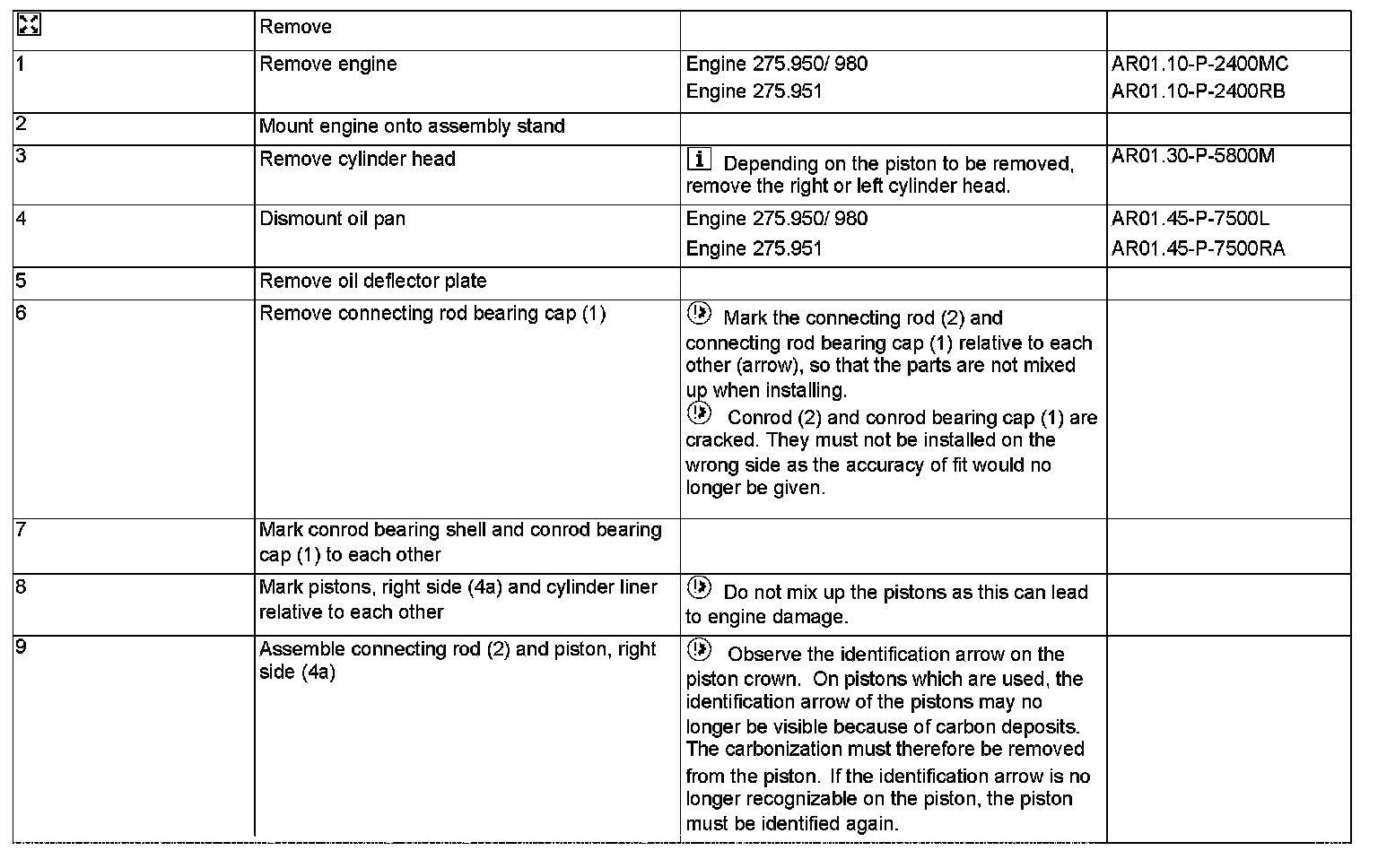

AR03.10-P-7021MC Piston removal and installation
