PE82.85-P-2101SAF Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram PE82.85-P-2101SAF
- with CODE (Z19) S600 Pullman Guard state sedan
- control unit A40/3

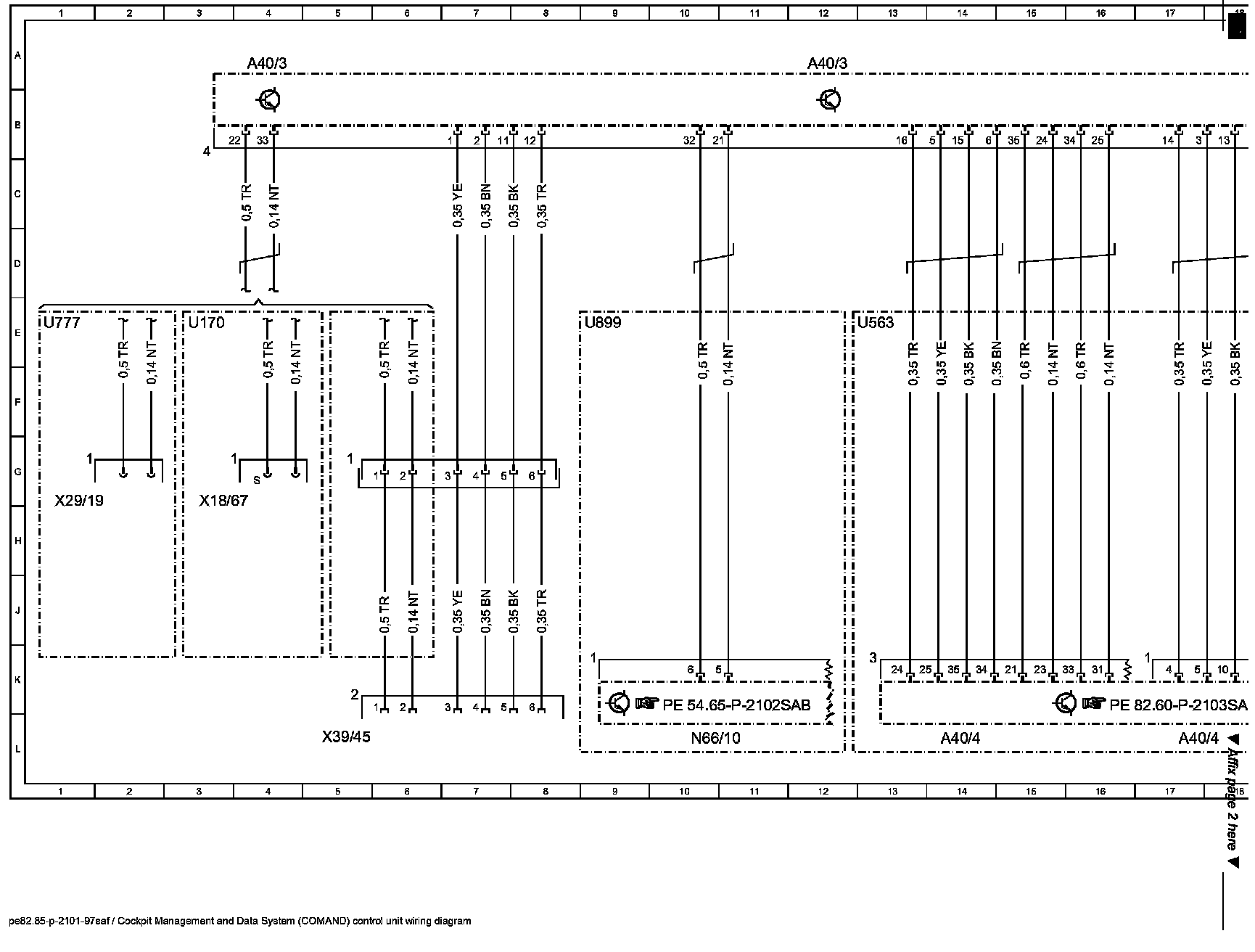

Wiring Diagram (Part 1):

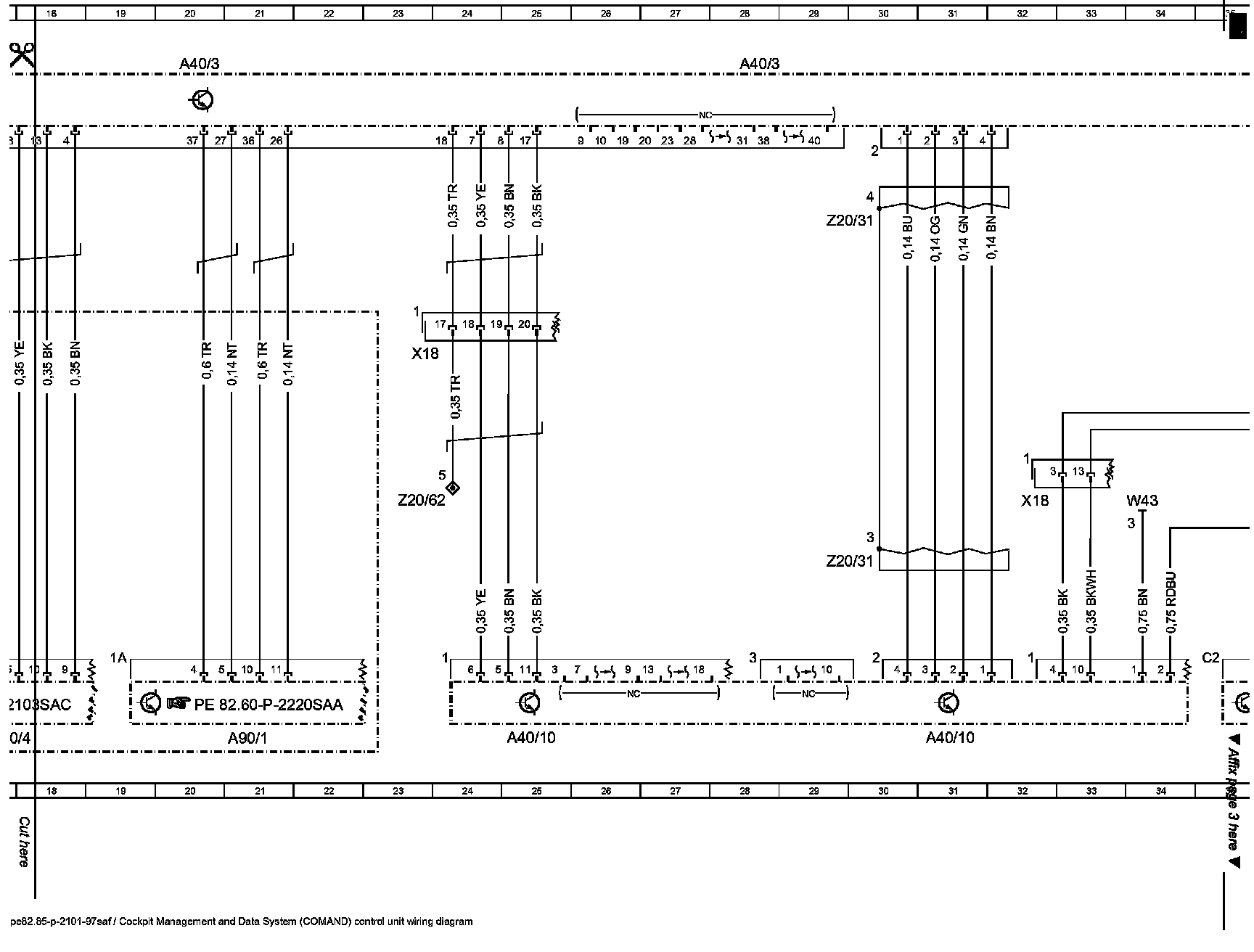

Wiring Diagram (Part 2):

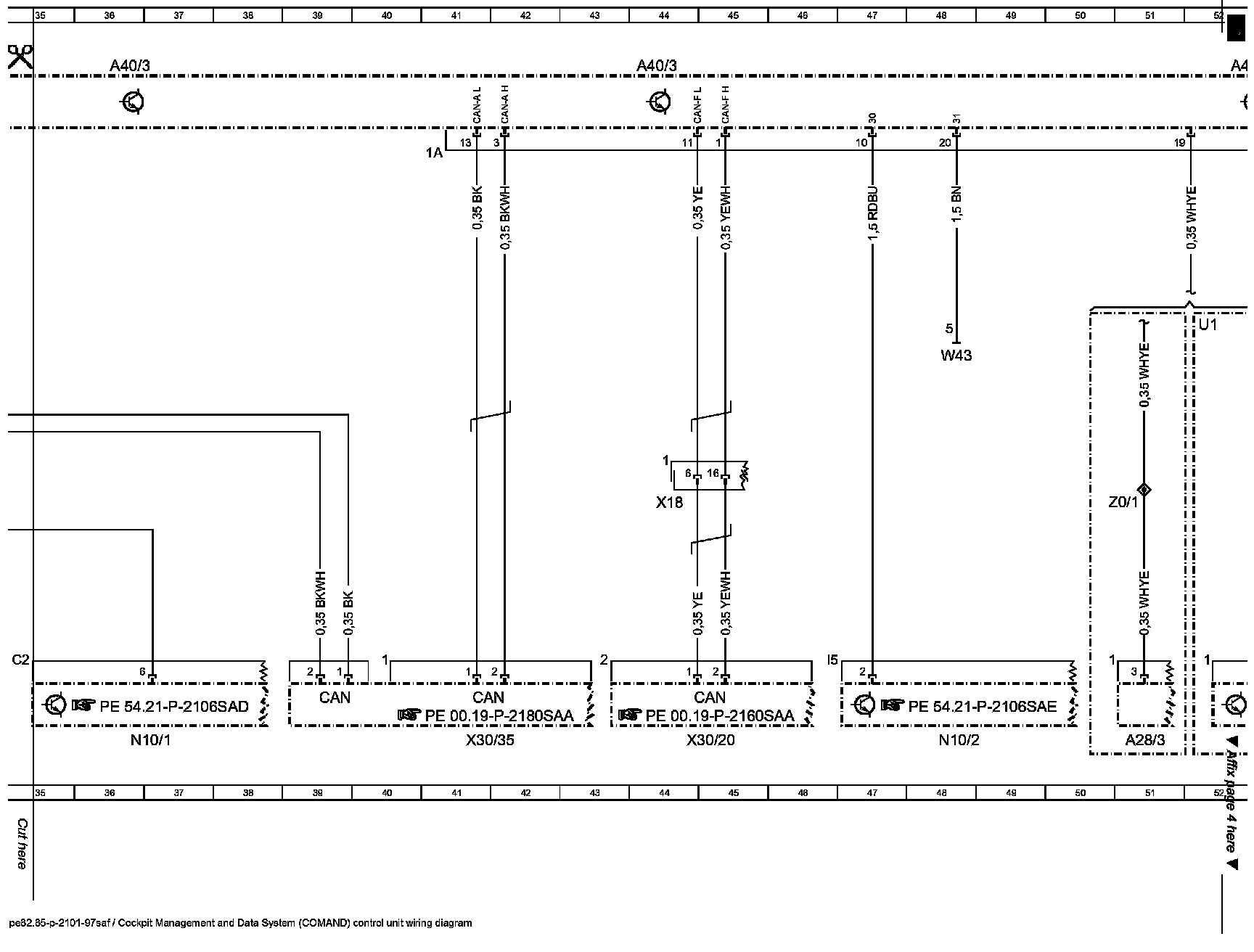

Wiring Diagram (Part 3):

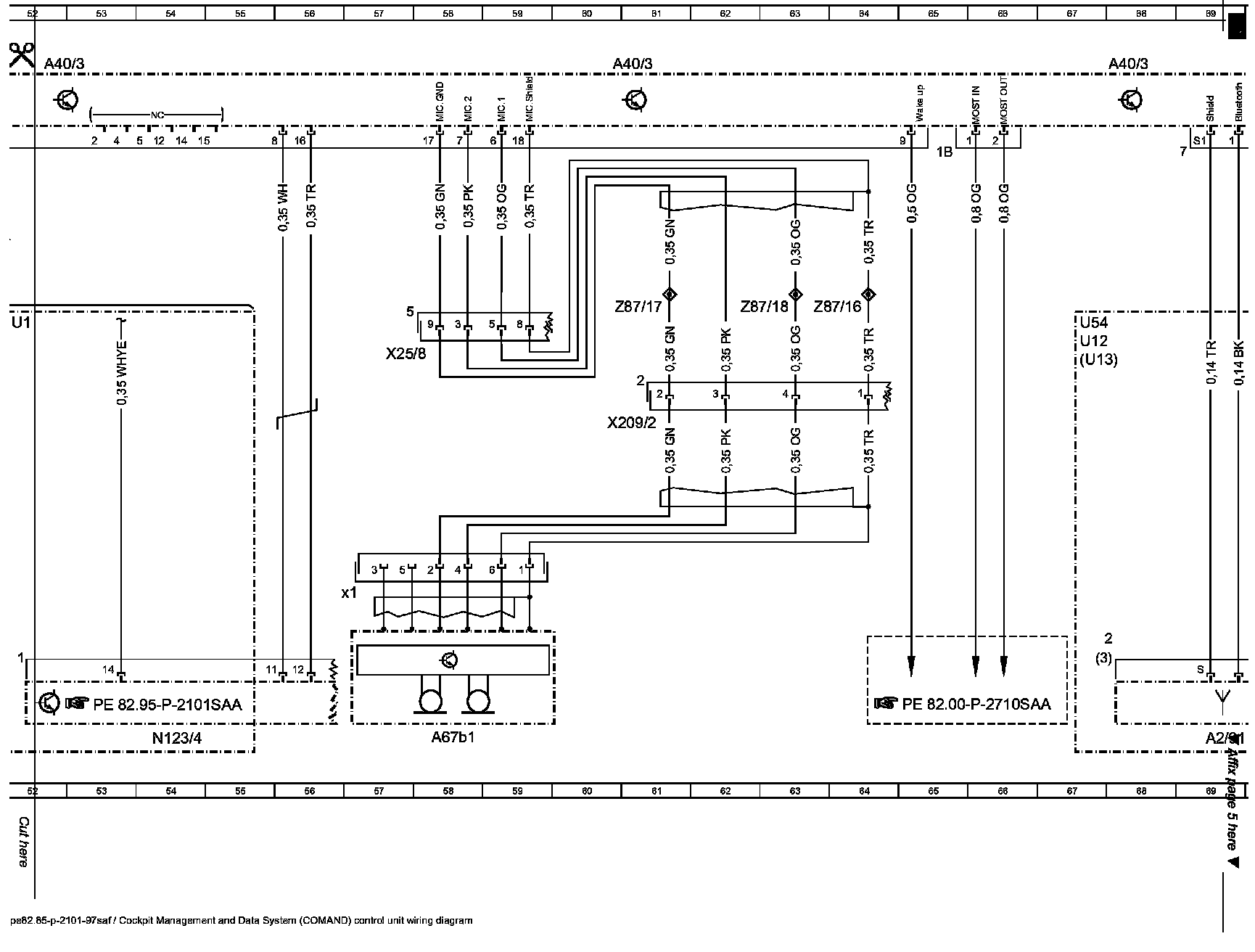

Wiring Diagram (Part 4):

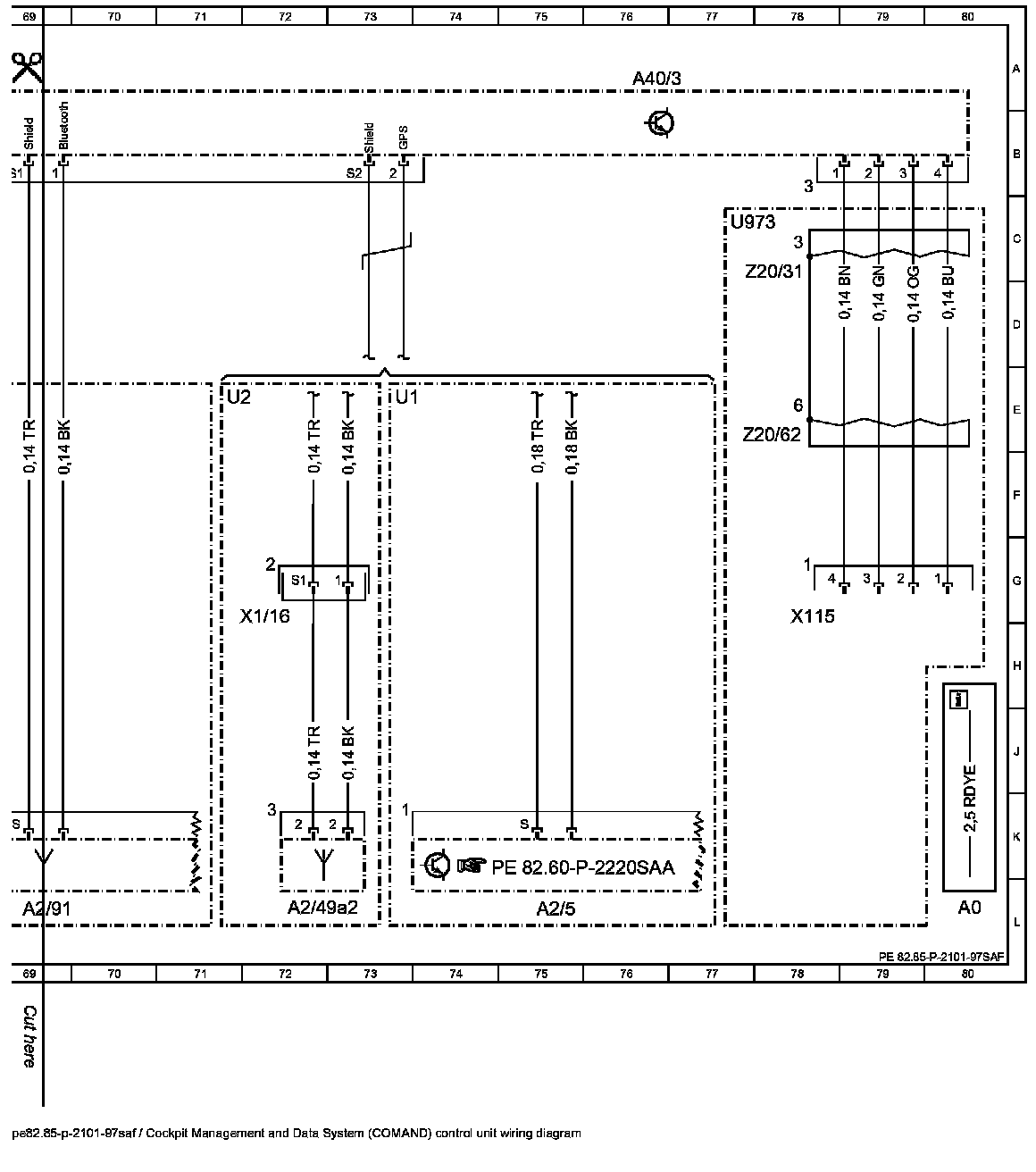

Wiring Diagram (Part 5):

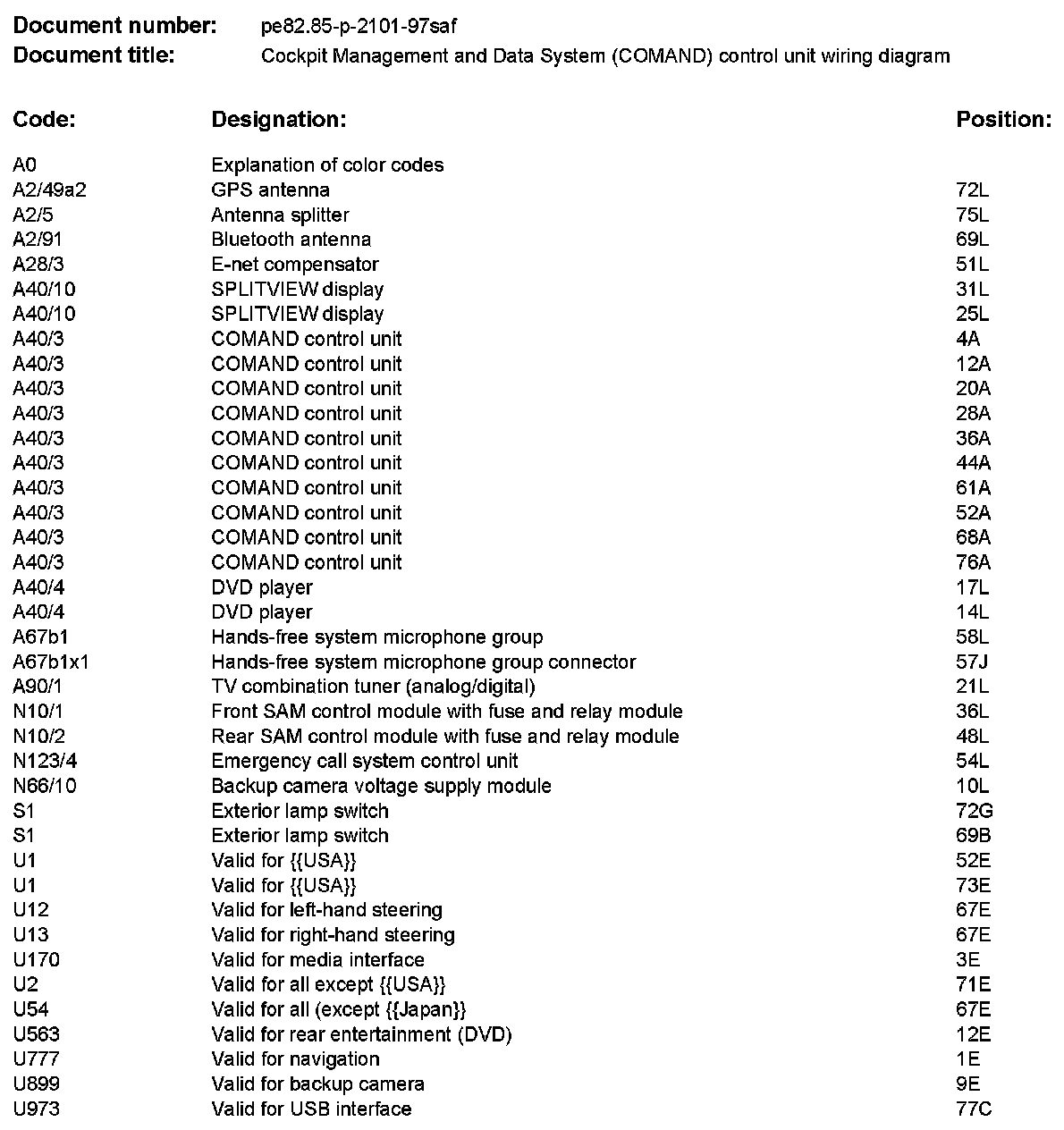

Component Description/Coordinates, A0 To U973:

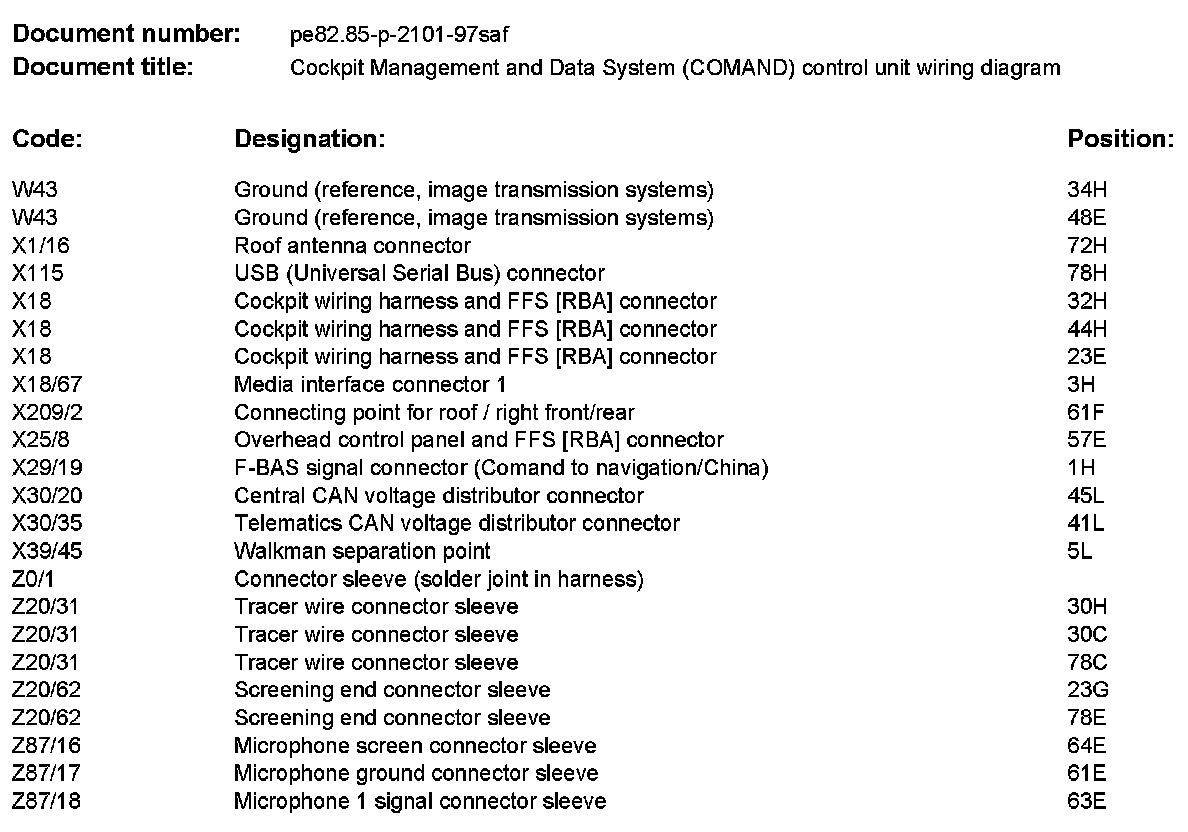

Component Description/Coordinates, W43 To Z87/18:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
