Window Shade Motor: Service and Repair



AR72.29-P-1890SX Remove/Install Drive Motor For Rear Door Side Window Roller Blind
- with CODE (297) Roller sun blinds in rear doors
- except CODE (Z07) Top protection

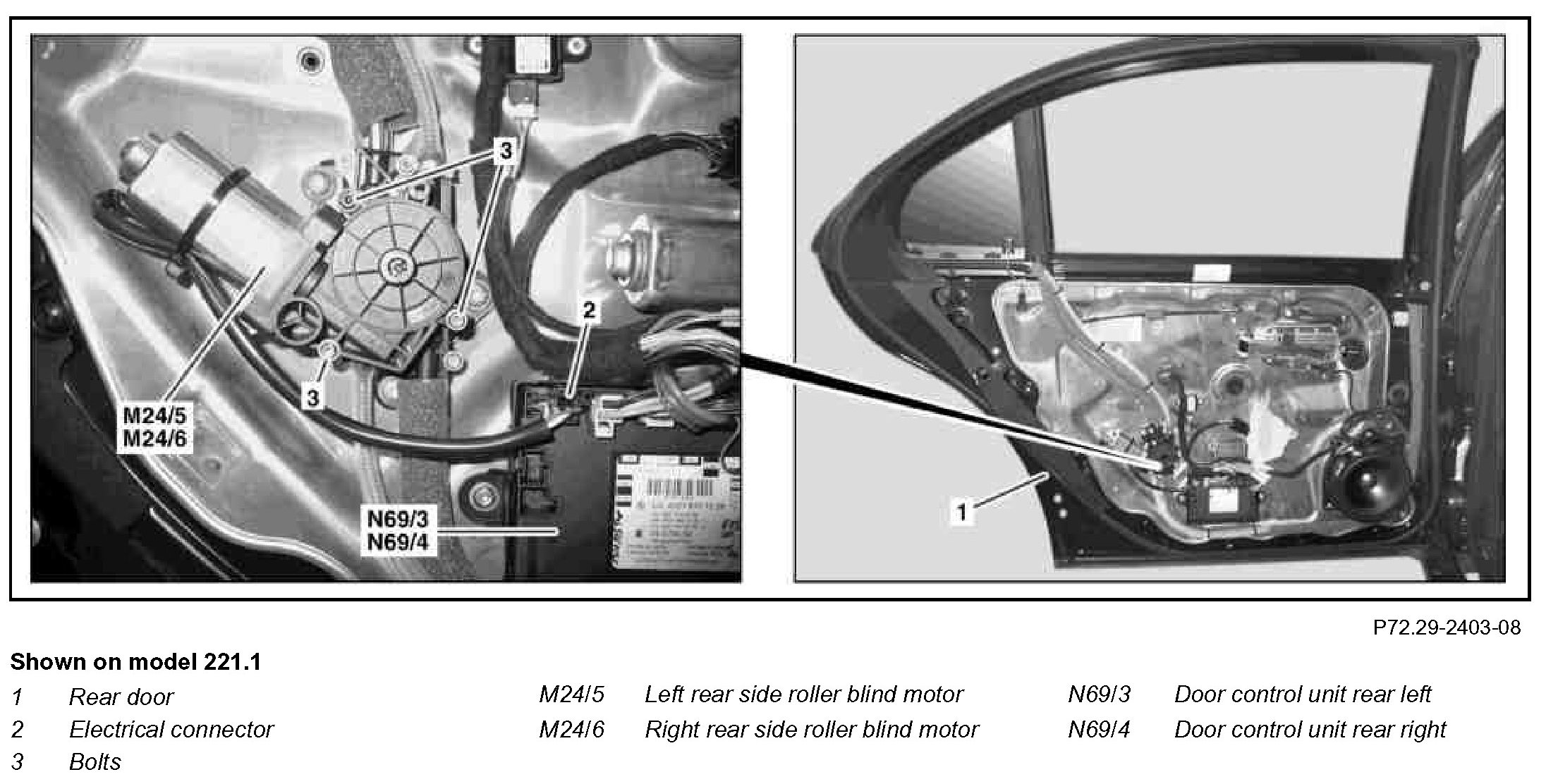

Component Identification:

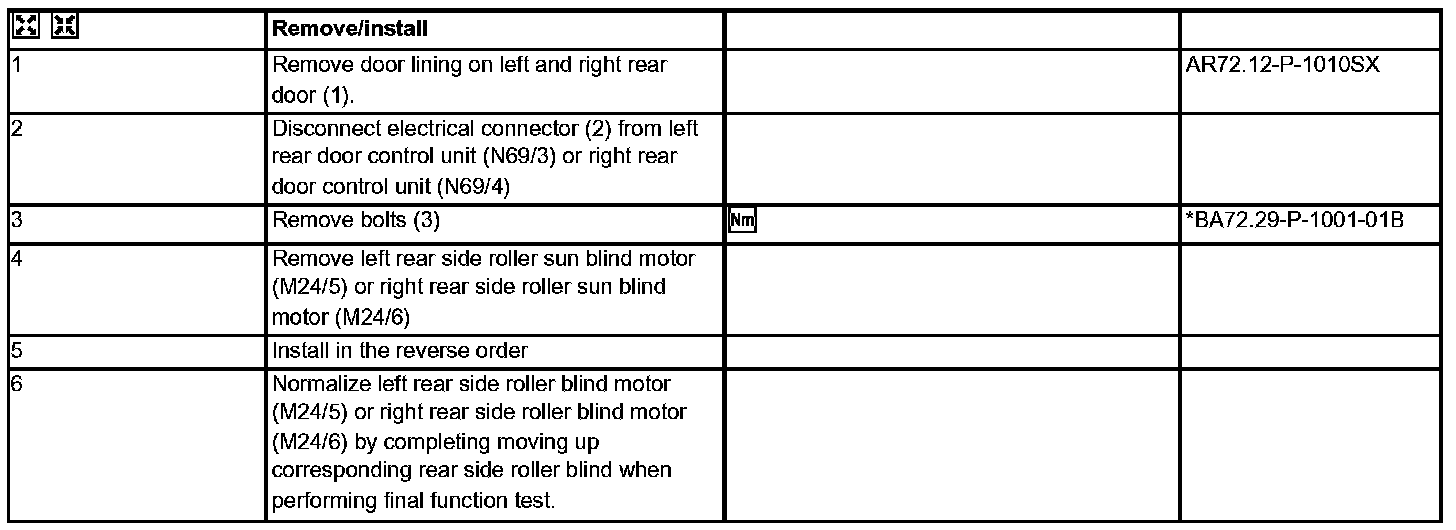

Steps 1 - 6:

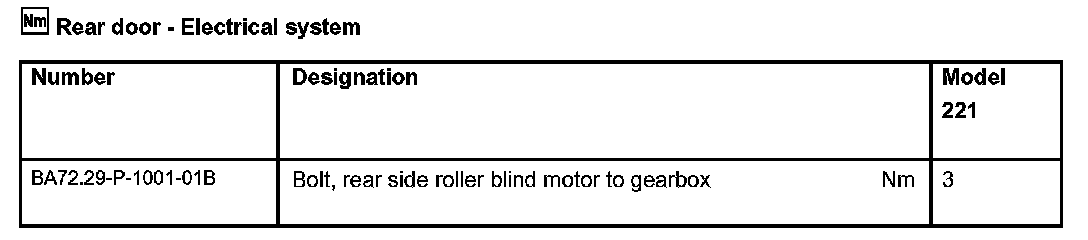

Rear Door - Electrical System:
