Rear Door Window Regulator: Service and Repair



AR72.12-P-1810SX Remove/Install Rear Door Window Lifter
- except CODE (Z07) Top protection

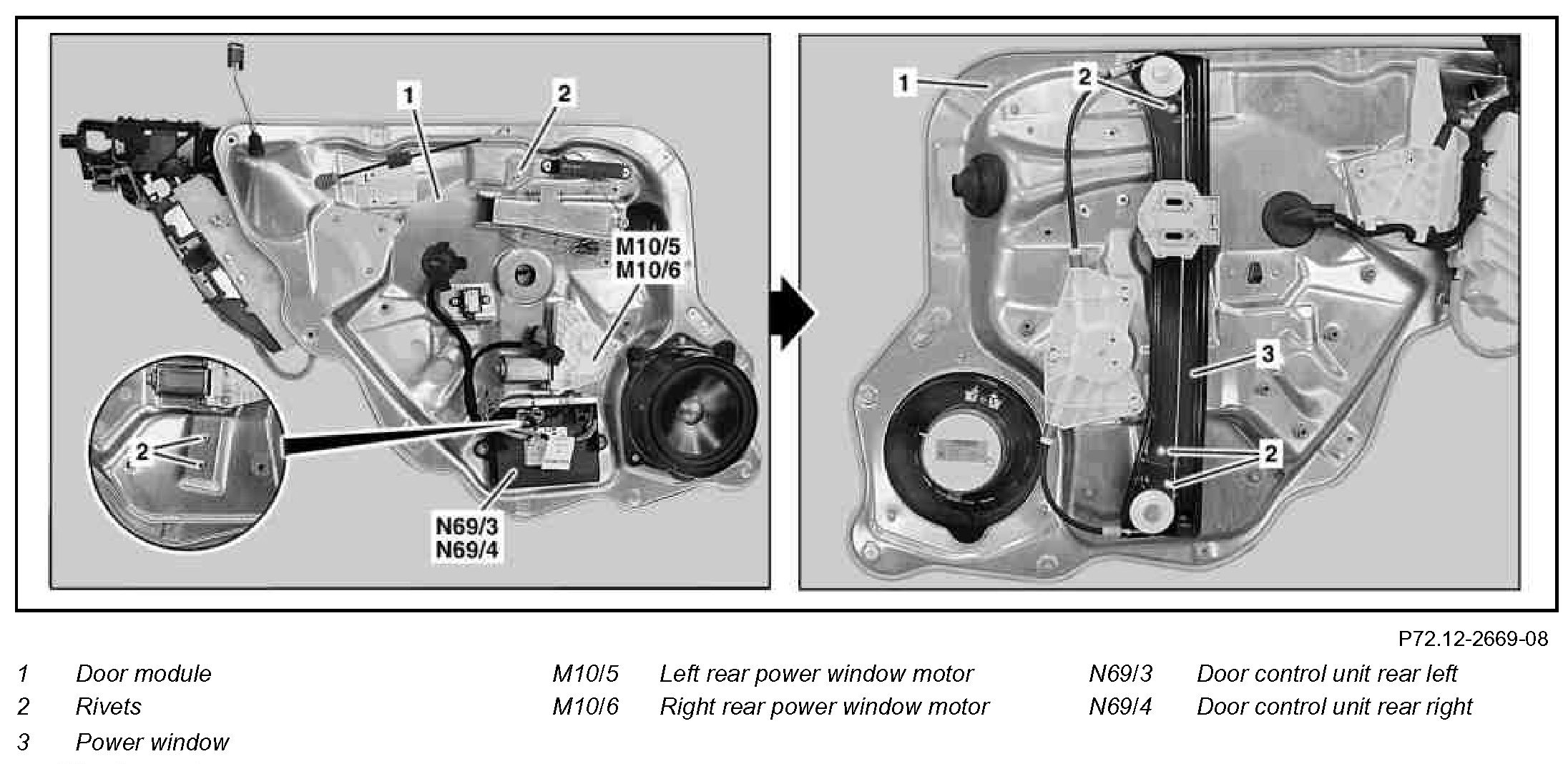

Component Identification:




Modification Notes:

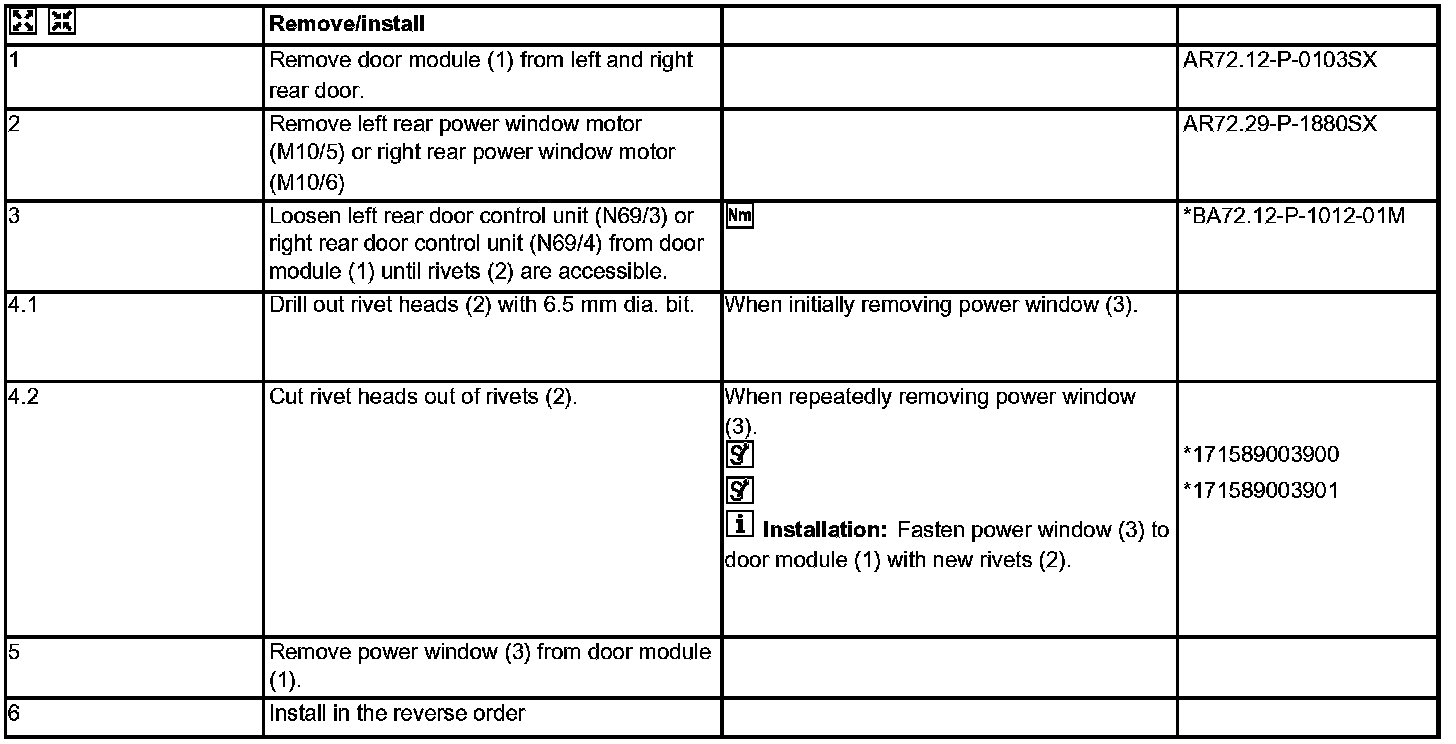

Steps 1 - 6:

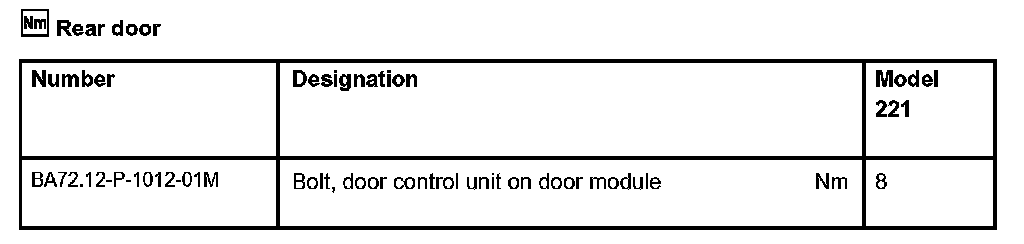

Rear Door:

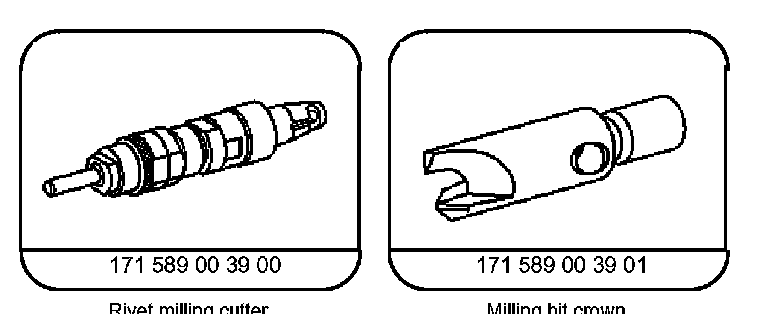

Special Tools:
