Front Door Window Glass: Service and Repair



AR72.10-P-1900SX Remove/Install Crank Window In Front Door
- except CODE (Z07) Top protection

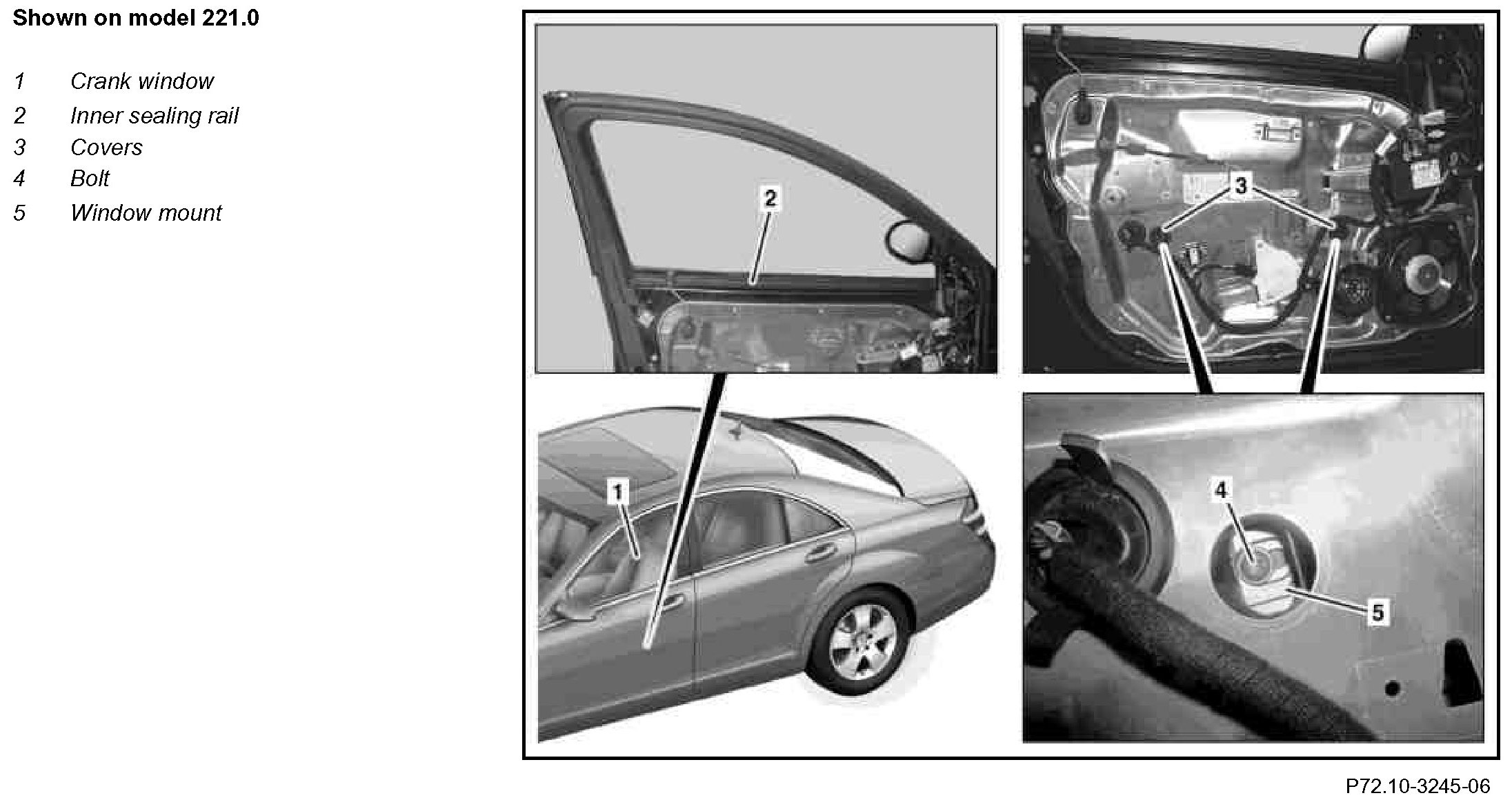

Component Identification:

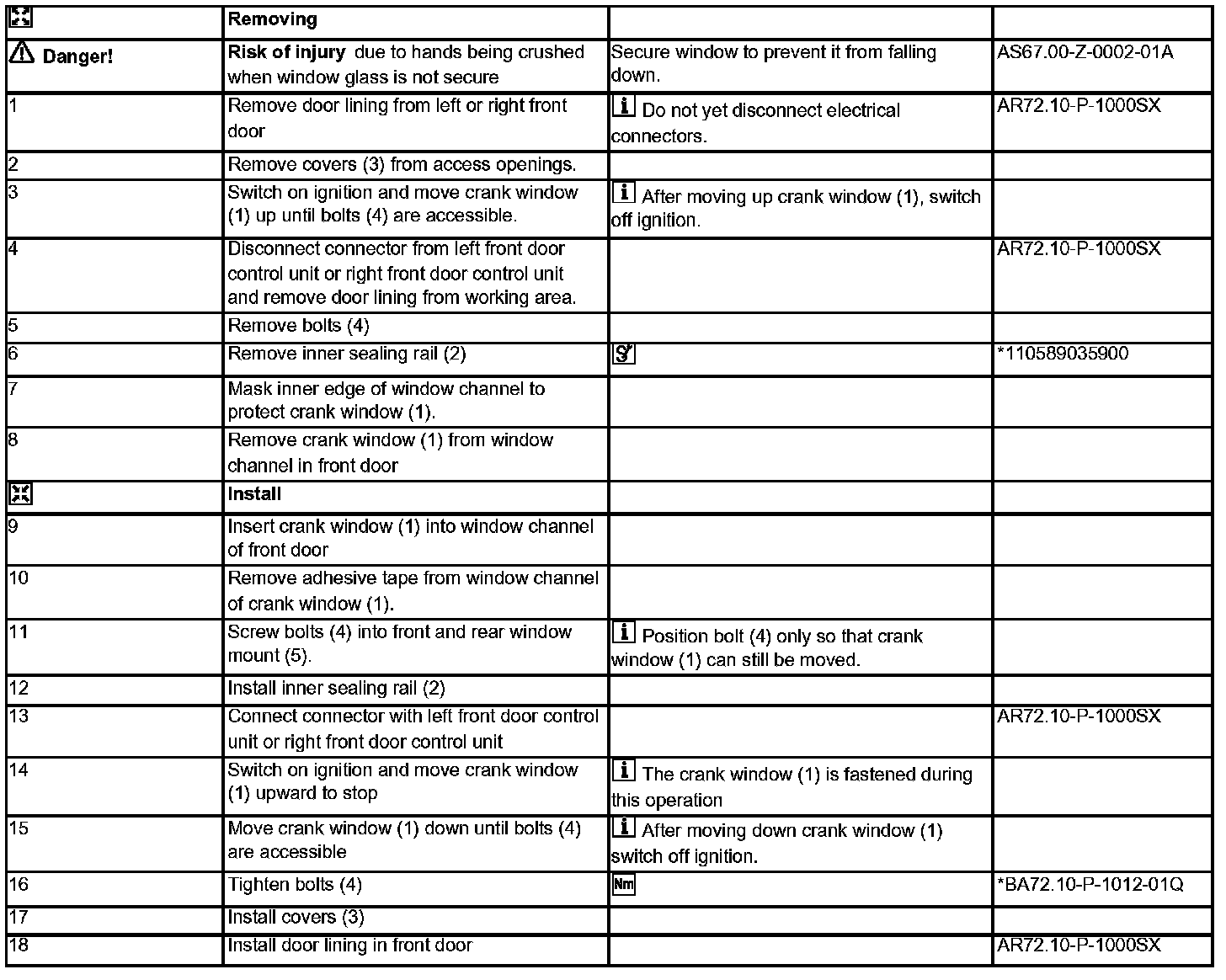

Steps 1 - 18:

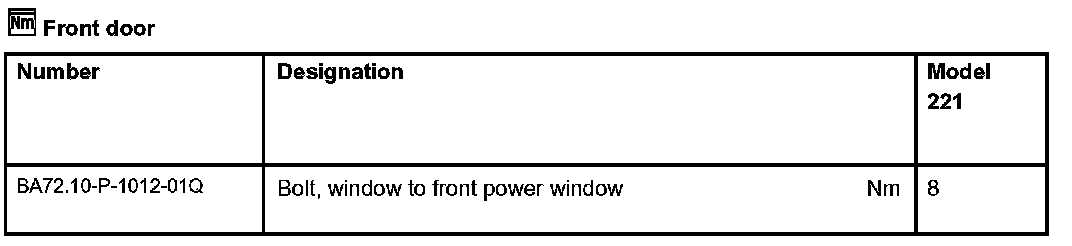

Front Door:

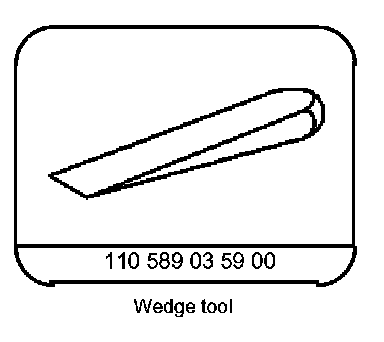

Special Tools:
