Oil Separator: Service and Repair
AR01.20-P-9750SX Remove/install
oil separator

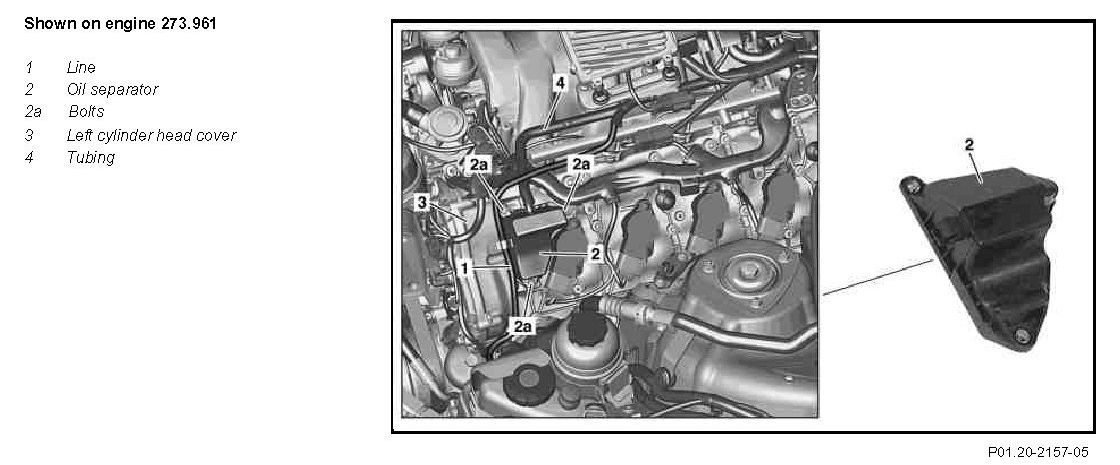

Component Identification:
Modification notes:

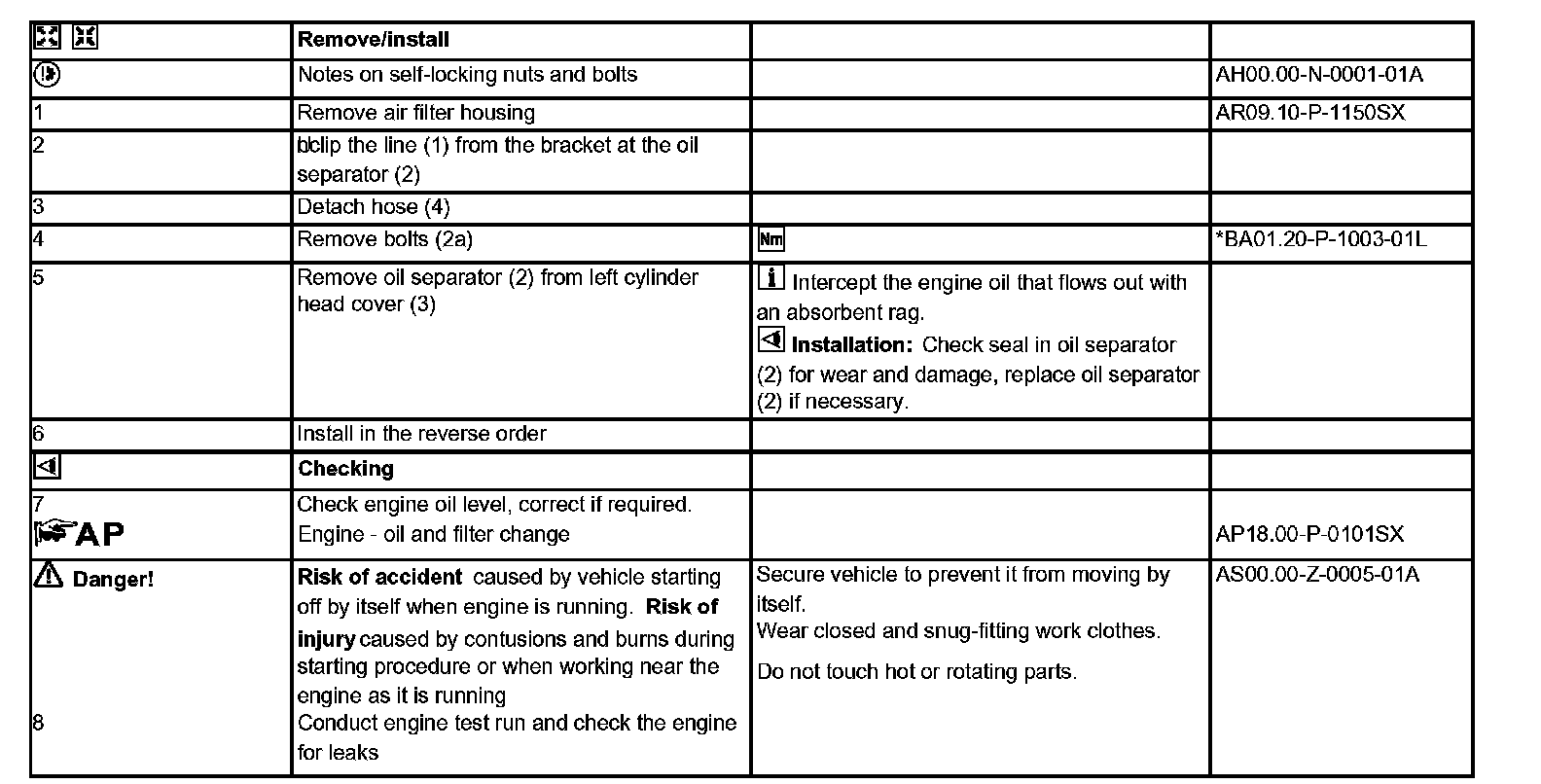

Remove/install Steps 1-8:

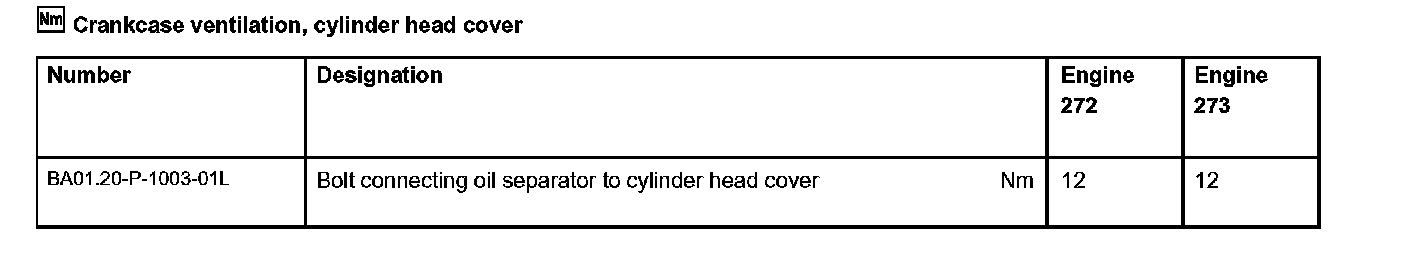

Crankcase ventilation, cylinder head cover:
