AR03.10-P-6111-01VA Check Connecting Rod Bolts

AR03.10-P-6111-01VA Check Connecting Rod Bolts

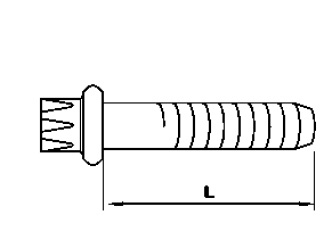

1 Measure length (L).

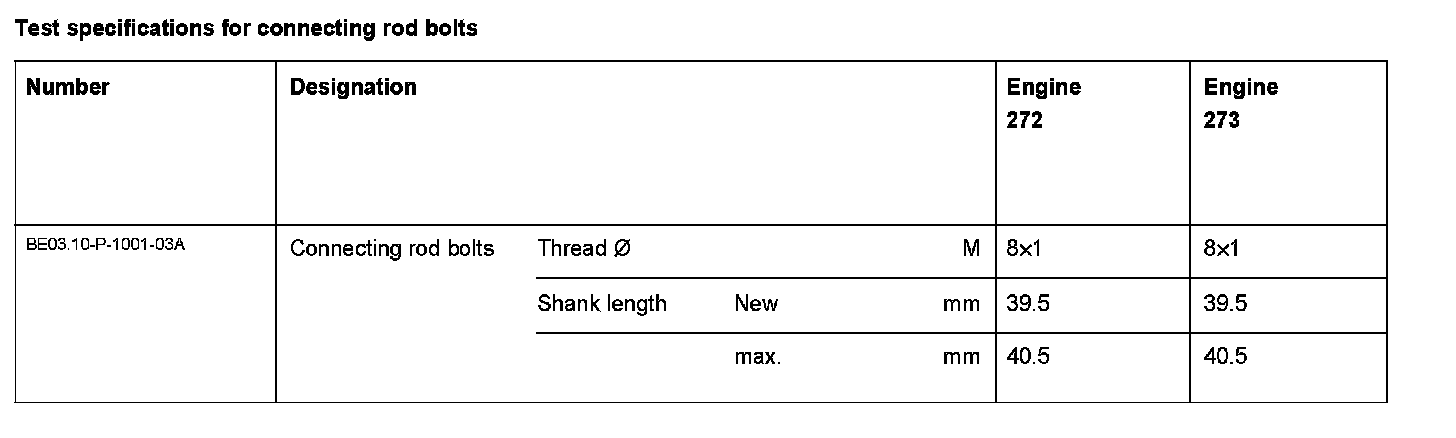

If the length (L) exceeds maximum permissible size, the connecting rod bolts must be replaced!
