AR68.20-P-5169SX Remove/Install Center Console Paneling



AR68.20-P-5169SX Remove/Install Center Console Paneling
- rear paneling

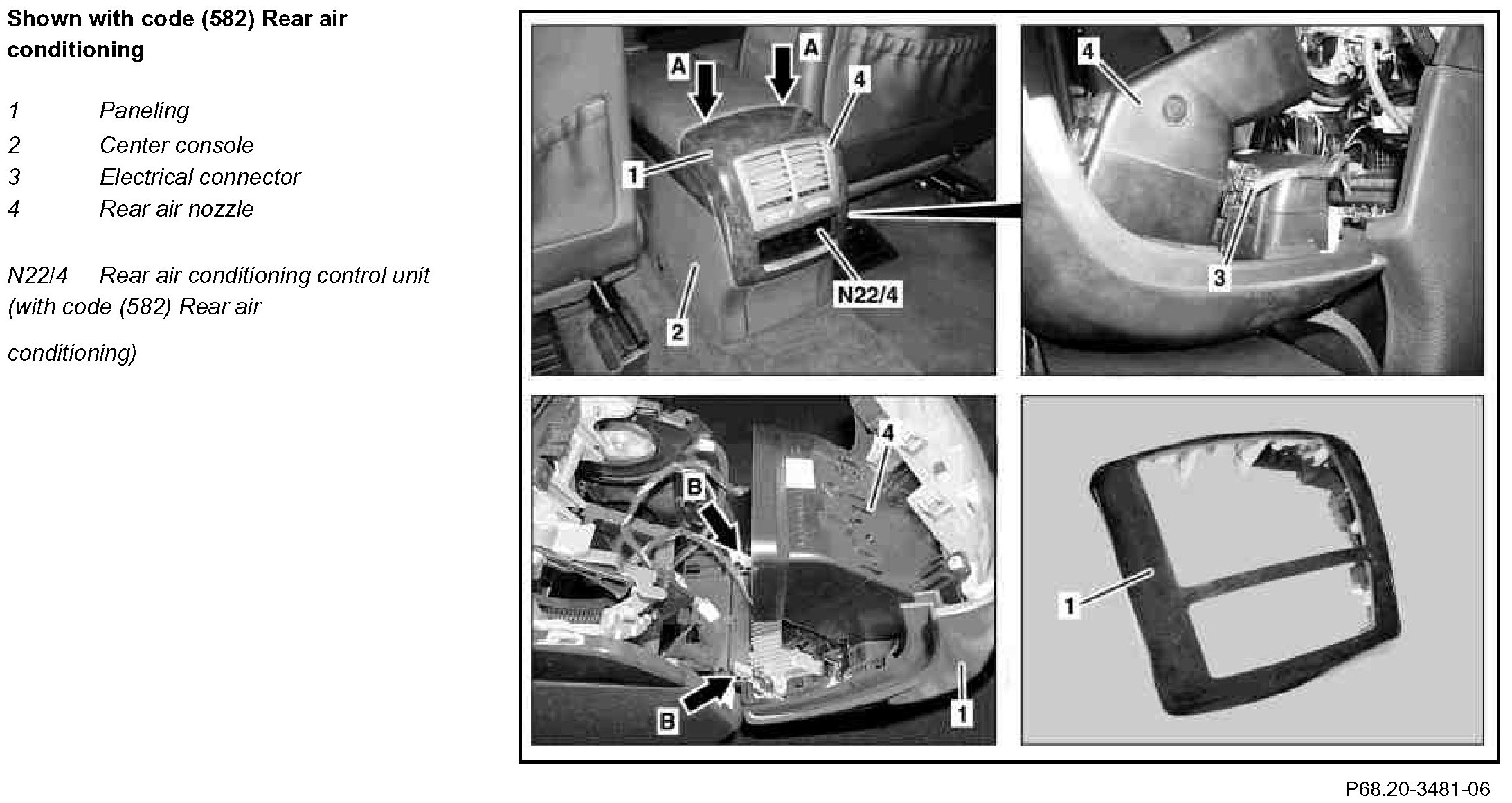

Component Identification:

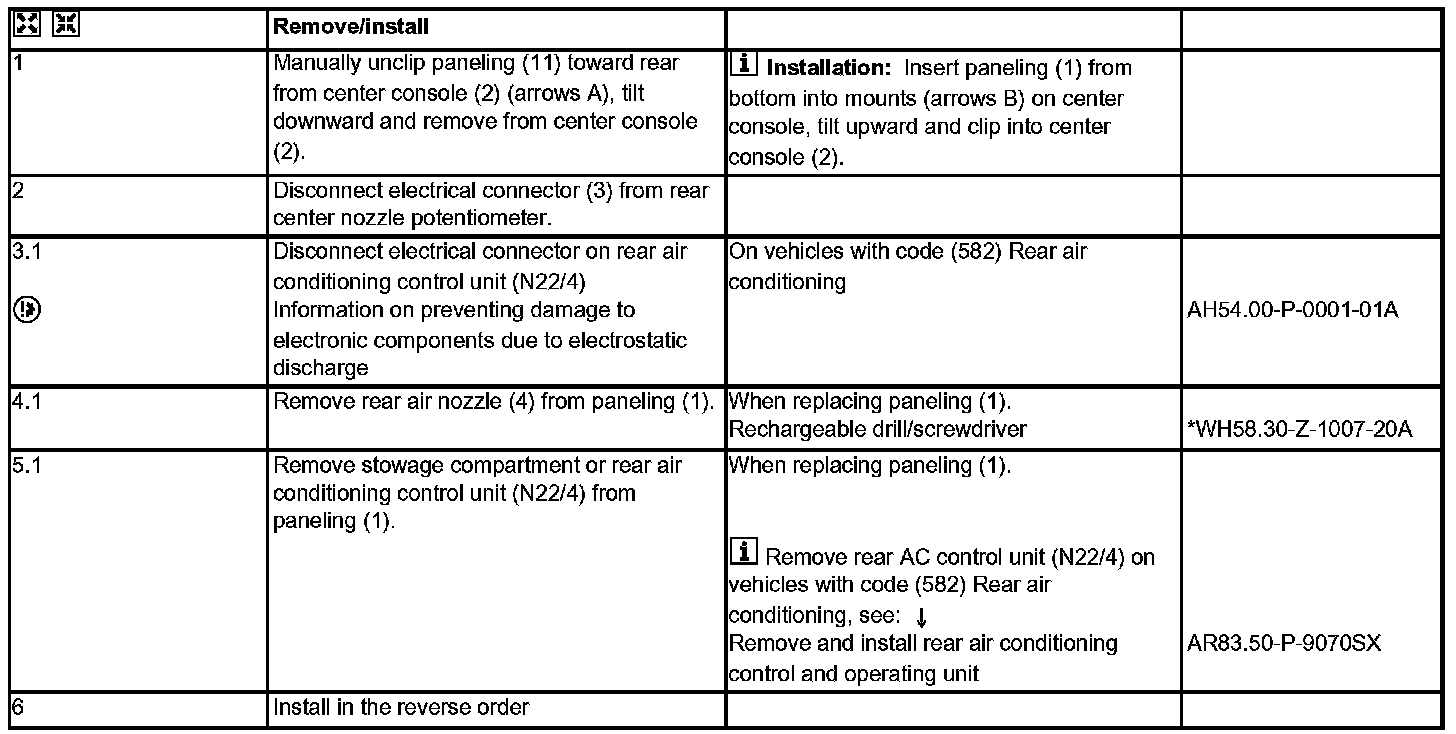

Steps 1 - 6:

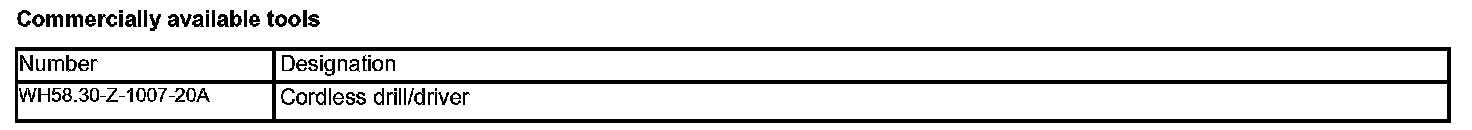

Commercially Available Tools:
