AR68.20-P-2000SXH Remove/Install Center Console



AR68.20-P-2000SXH Remove/Install Center Console
- as of 1.6.09
- with CODE (800) Model year 2010

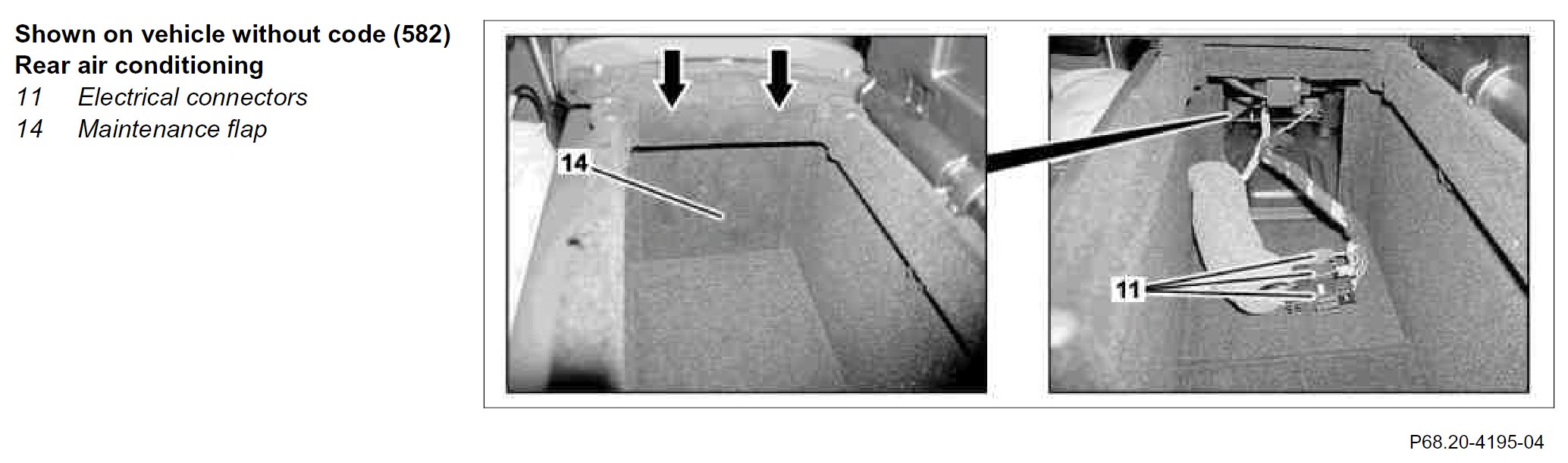

Component Identification:

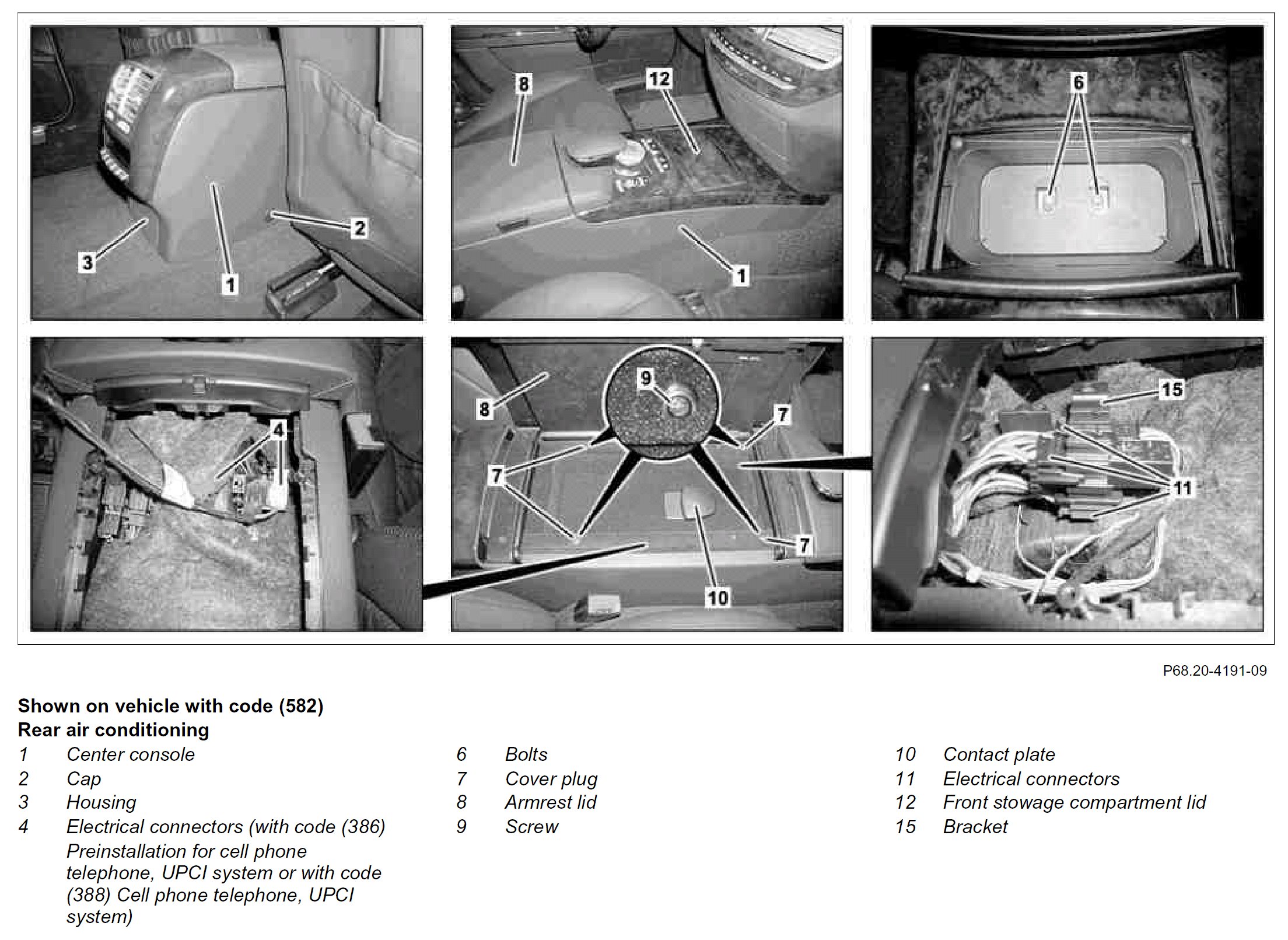

Component Identification:

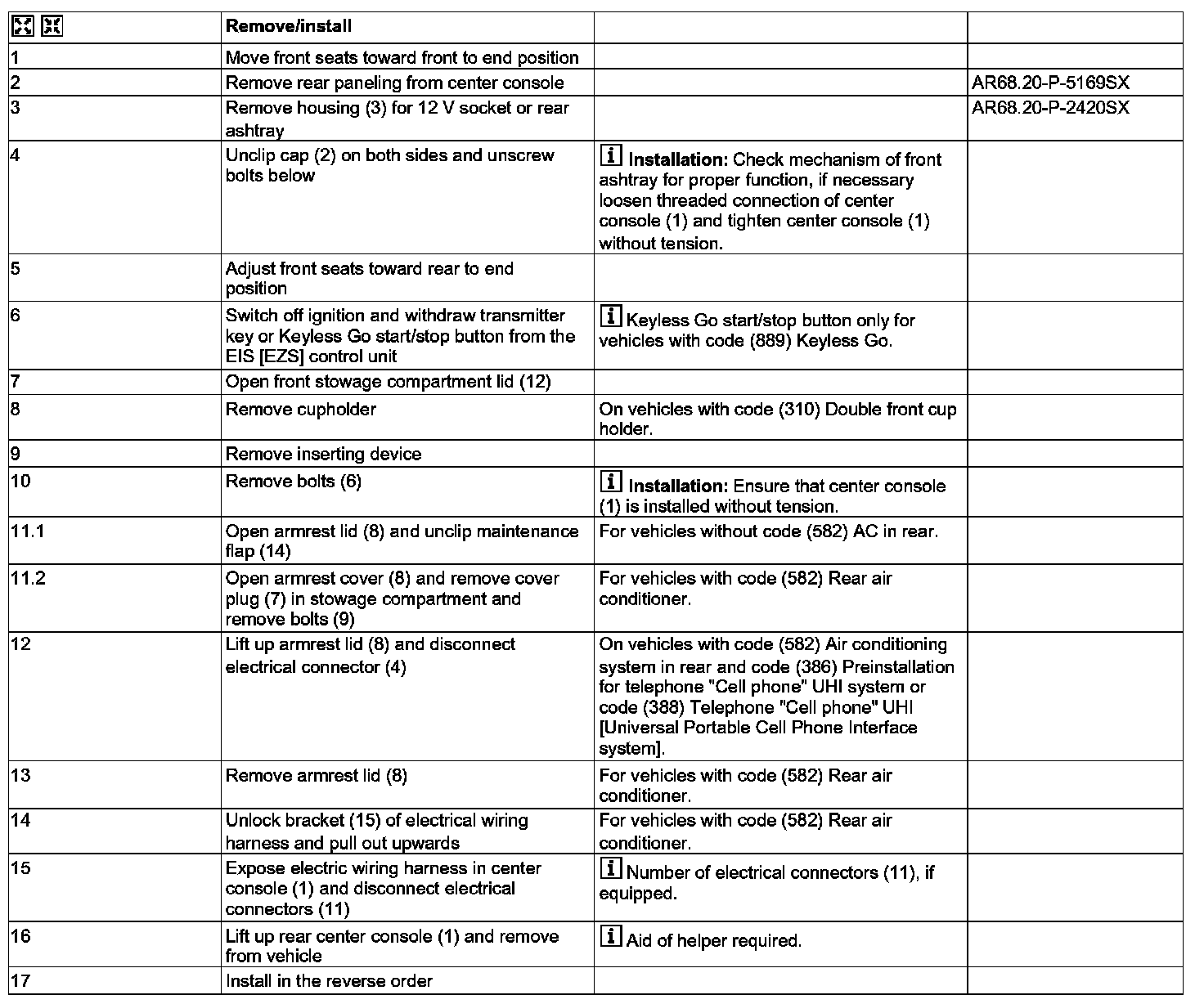

Steps 1 - 17:
